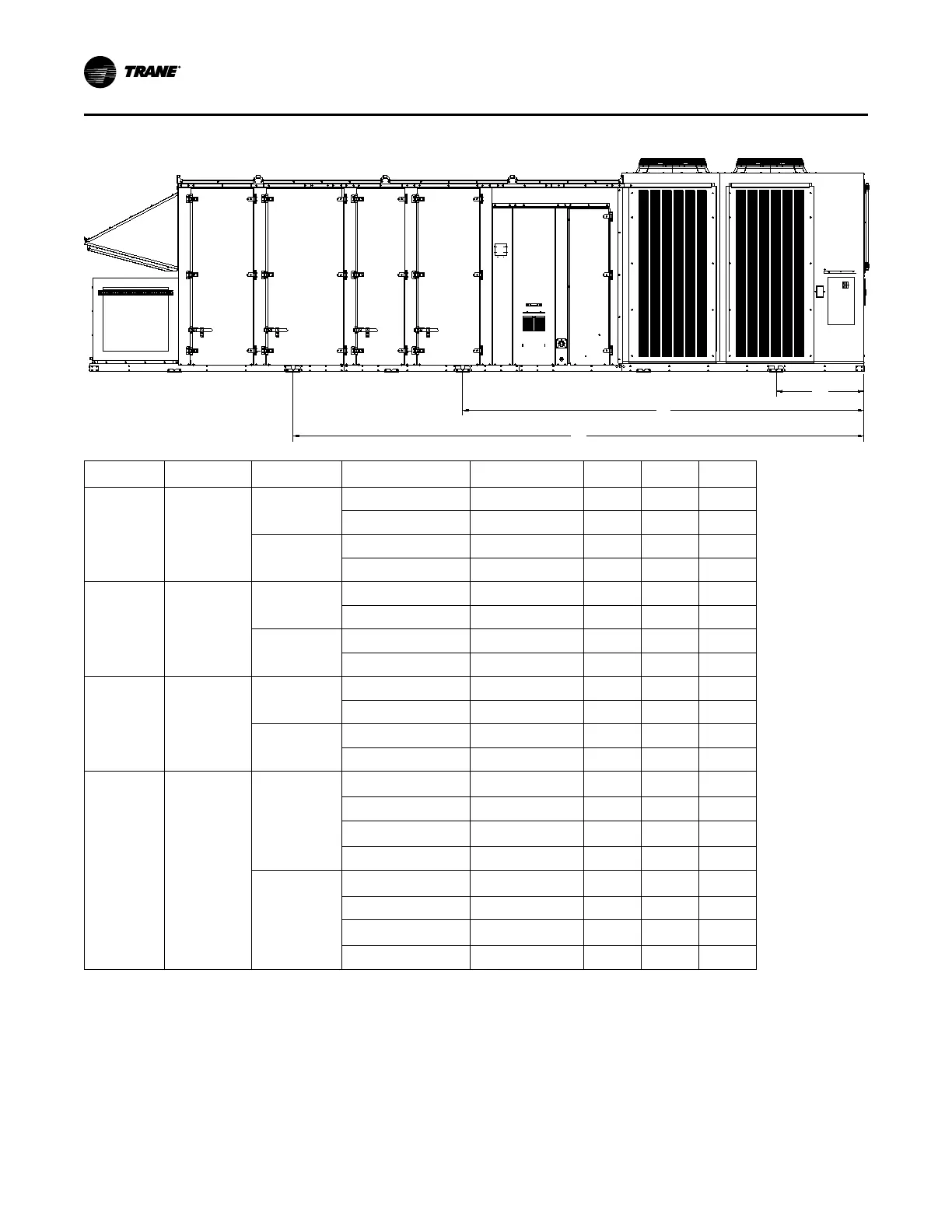

Figure 15. Lug locations
A
B
C
Cabinet
Tonnage
RA/RX
Cartridge Filter Efficiency
A B C
A
20, 25, 30
RA
Yes All 36 NA 161
No All 36 NA 142
RX
Yes All 36 NA 211
No All 36 NA 192
B
40,50,55
RA
Yes All 36 NA 202
No All 36 NA 183
RX
Yes All 36 165 254
No All 36 165 235
C 60
RA
Yes All 36 111 202
No All 36 111 183
RX
Yes All 36 165 254
No All 36 165 235
C
70,75
RA
Yes
High/Eflex
36 165 262
Yes Std 36 111 202
No
High/Eflex
36 165 231
No Std 36 111 183
RX
Yes
High/Eflex
36 165 314
Yes Std 36 165 254
No
High/Eflex
36 165 283
No Std 36 165 235
