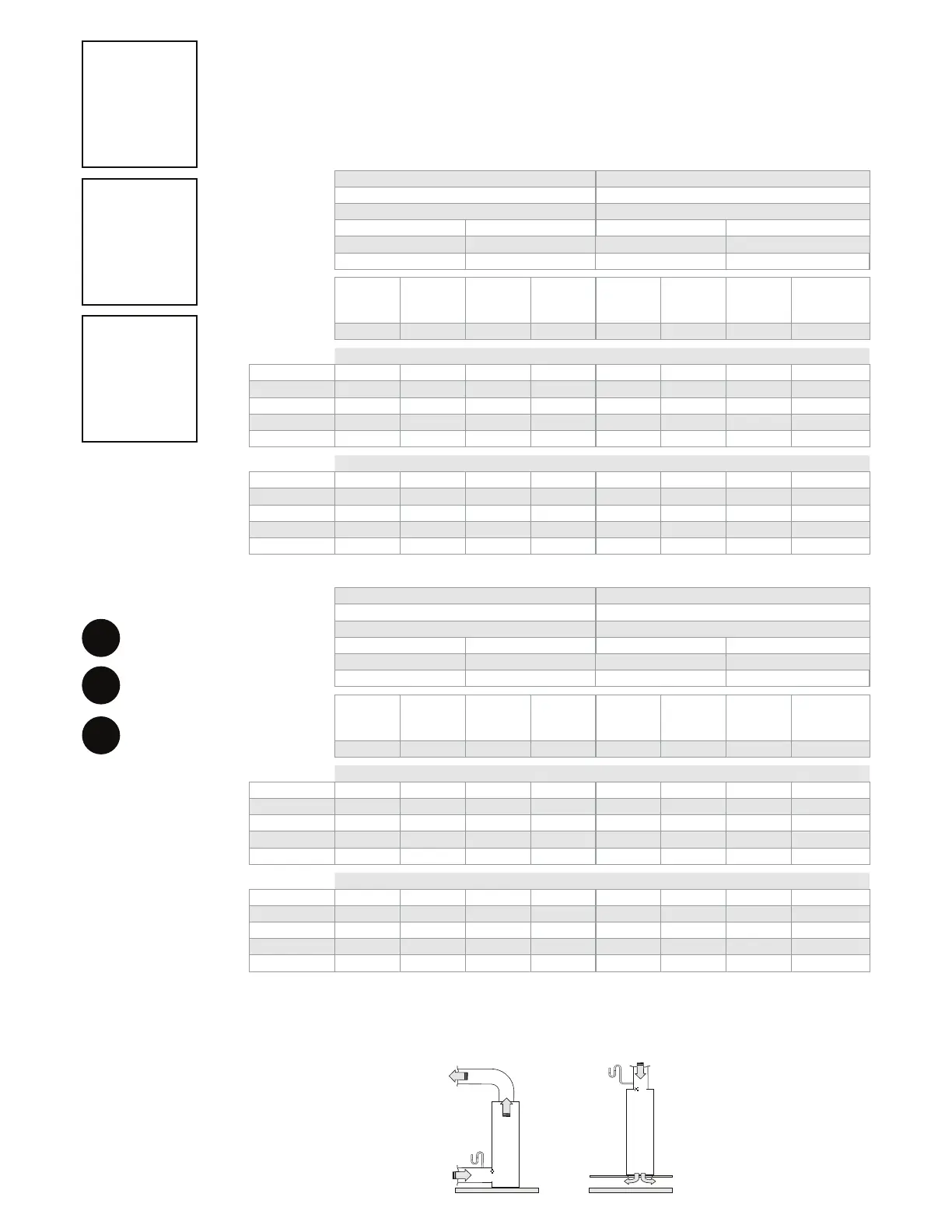

64
I
GB
F
PRESSION
STATIQUE EN
FONCTION DE
LA TENSION
D’ALIMENTATION
฀฀
PRESSURE VS FANS
VOLTAGE SUPPLY
PRESSIONE
STATICA DI
MANDATA IN
FUNZIONE ALLA
TENSIONE IN
ALIMENTAZIONE
DEI VENTILATORI
Unità senza resistenze elettriche Unità con resistenze elettriche
Unit without electrical heaters Unit with electrical heaters
Unité sans résistance électrique Unité avec résistance électrique
Velocità nominale @20Pa Velocità minima @20Pa Velocità nominale @20Pa Velocità minima @20Pa
Nominal Speed @20Pa Minimum Speed @20Pa Nominal Speed @20Pa Minimum Speed @20Pa
A la vitesse nominale @ 20 Pa A la vitesse minimal @ 20 Pa A la vitesse nominale @ 20 Pa A la vitesse minimal @ 20 Pa
EU4
EU4 +
postriscaldamento
reheat
réchauffer
EU4
EU4 +
postriscaldamento
reheat
réchauffer
EU4
EU4 +
postriscaldamento
reheat
réchauffer
EU4
EU4 +
postriscaldamento
reheat
réchauffer

JDCC
0020
70 71 52 53 70 72 52 53
0025
90 92 53 53 90 92 76 76
0030
92 95 53 53 92 96 76 77
0040
80 86 51 52 82 90 52 53
0060
97 100 62 62 100 100 65 66
JUCC
0020
67 68 51 51 67 68 51 51
0025
85 86 52 52 85 86 74 74
0030
86 87 52 52 86 88 74 75
0040
72 74 50 50 73 75 51 51
0060
89 92 61 62 91 99 64 65
Unità senza resistenze elettriche Unità con resistenze elettriche
Unit without electrical heaters Unit with electrical heaters
Unité sans résistance électrique Unité avec résistance électrique
Velocità nominale @20Pa Velocità minima @20Pa Velocità nominale @20Pa Velocità minima @20Pa
Nominal Speed @20Pa Minimum Speed @20Pa Nominal Speed @20Pa Minimum Speed @20Pa
A la vitesse nominale @ 20 Pa A la vitesse minimal @ 20 Pa A la vitesse nominale @ 20 Pa A la vitesse minimal @ 20 Pa
EU4
EU4 +
postriscaldamento
reheat
réchauffer
EU4
EU4 +
postriscaldamento
reheat
réchauffer
EU4
EU4 +
postriscaldamento
reheat
réchauffer
EU4
EU4 +
postriscaldamento
reheat
réchauffer

JDCV
0020
71 72 50 51 71 72 50 51
0025
85 85 48 48 85 85 74 75
0030
85 85 48 49 85 85 75 76
0040
75 76 49 50 75 77 51 51
0060
84 85 53 54 85 87 58 59
JUCV
0020
67 68 48 48 67 68 48 49
0025
85 85 47 47 85 85 72 73
0030
85 85 47 48 85 85 73 74
0040
71 72 47 48 71 73 48 49
0060
100 100 61 62 100 100 65 66
N.B. Nel caso di unità canalizzata la perdita di
carico del condotto di aspirazione deve essere
inferiore a 100Pa.
฀฀฀฀
N.B. In the case of ducted units the suction duct
pressure drop must be less than 100P.
฀฀฀฀
N.B. Dans la cas d’unis à canalisation, la perte de
pression dans le canalisation d’aspiration doit
฀฀฀฀฀
Pressione statique externe disponibile
Regolazione nominale del ventilatore
(per avere la portata aria nominale
con ESP=20Pa)
Nominal regulation of the fans
(to have a nominal air flow
with ESP = 20pa)
glage nominale du ventilateur
(Pour obtenir le débit d’air nominal
avec ESP = 20 Pa)
< 100 Pa
< 100 Pa
