Note: An outdoor temperature sensor must be enabled for lockout settings to be available. Lockout
options are set by navigating to Installer Setup > Lockout Settings.
Lockouts
The Pivot thermostat lockout methods are:
• Auxiliary heat lockout
– When enabled, select an outdoor temperature which disables auxiliary heat anytime the outdoor
temperature is above the selected temperature. Compressor heat is allowed.
• Compressor lockout
– When enabled, select an outdoor temperature which disables compressor heat anytime the
outdoor temperature is below the selected temperature. Auxiliary heat is allowed.

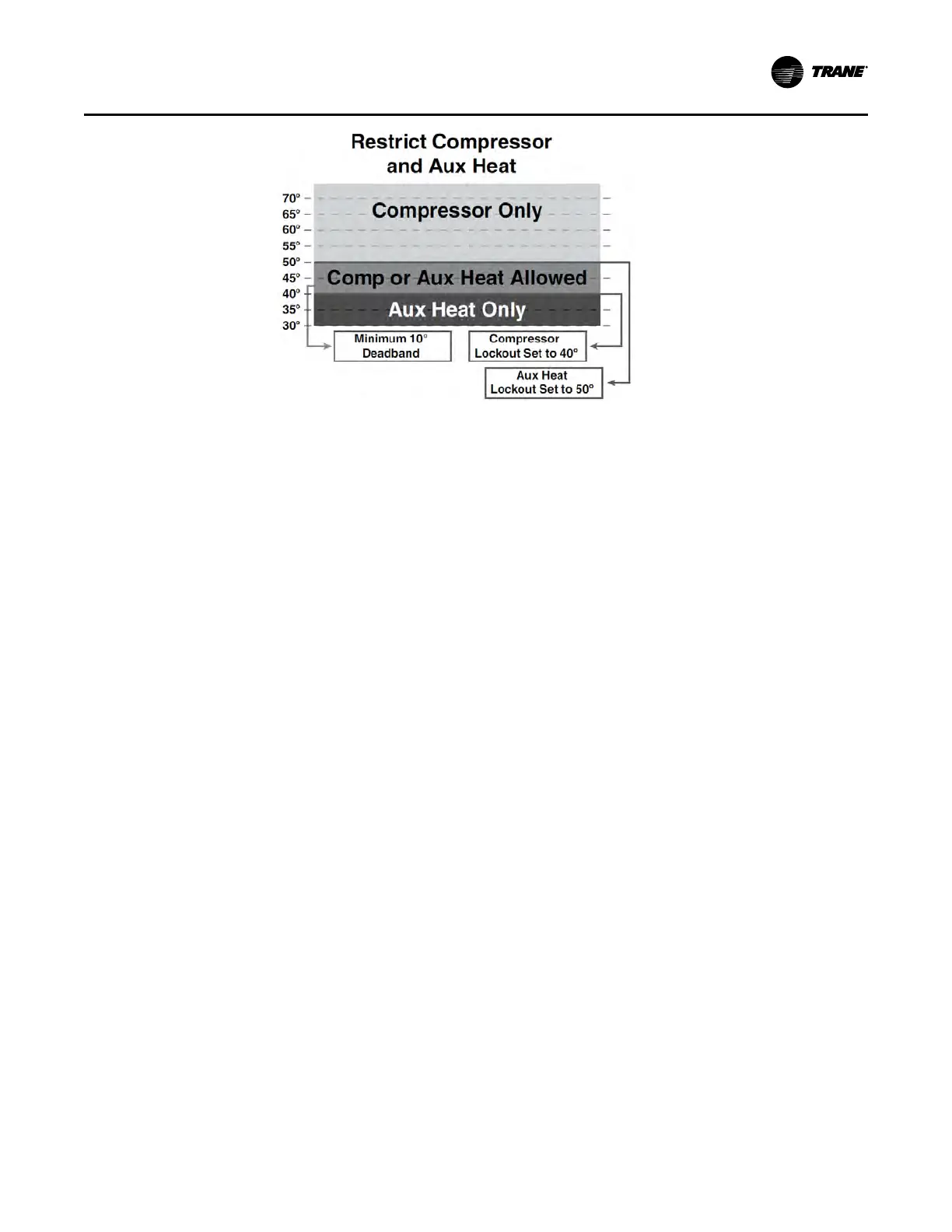

Note: When enabling auxiliary heat lockout and compressor heat lockout, there is a minimum of
10°F deadband between the two settings.
• Defrost heater balance point (W1)
– When enabled, select an outdoor temperature which disables all electric heat during defrost
above the selected temperature.
• Defrost heater balance Point (W2)
– When enabled, select an outdoor temperature which disables the 2nd and 3rd stages of electric
heat during defrost above the selected temperature.
• Defrost heater balance Point (W3)
– When enabled, select an outdoor temperature which disables the 3rd stage of electric heat
during defrost above the selected temperature.
• Compressor cooling 1st stage lockout
– When enabled, select an outdoor temperature which forces the 2nd stage compressor cooling
operation anytime the outdoor temperature is above the selected temperature.
• Compressor heating 1st stage lockout
– When enabled, select an outdoor temperature which forces the 2nd stage compressor heating
operation anytime the outdoor temperature is below the selected temperature.
• Heating 1st stage lockout
– When enabled, select an outdoor temperature which forces the 2nd stage non-compressor
heating operation anytime the outdoor temperature is below the selected temperature.
Humidifier Operation
The Pivot thermostat is capable of controlling humidification through the normally open (NO) dry AUX
contacts on the unit sub-base. The humidifier operation methods are:
