Trane RTAA-125 - 35 & 40 Ton Compressor Oil Filter Replacement Chart; 50 & 60 Ton Compressor Oil Filter Replacement Chart

124 RTAA-SVX01A-EN
Maintenance

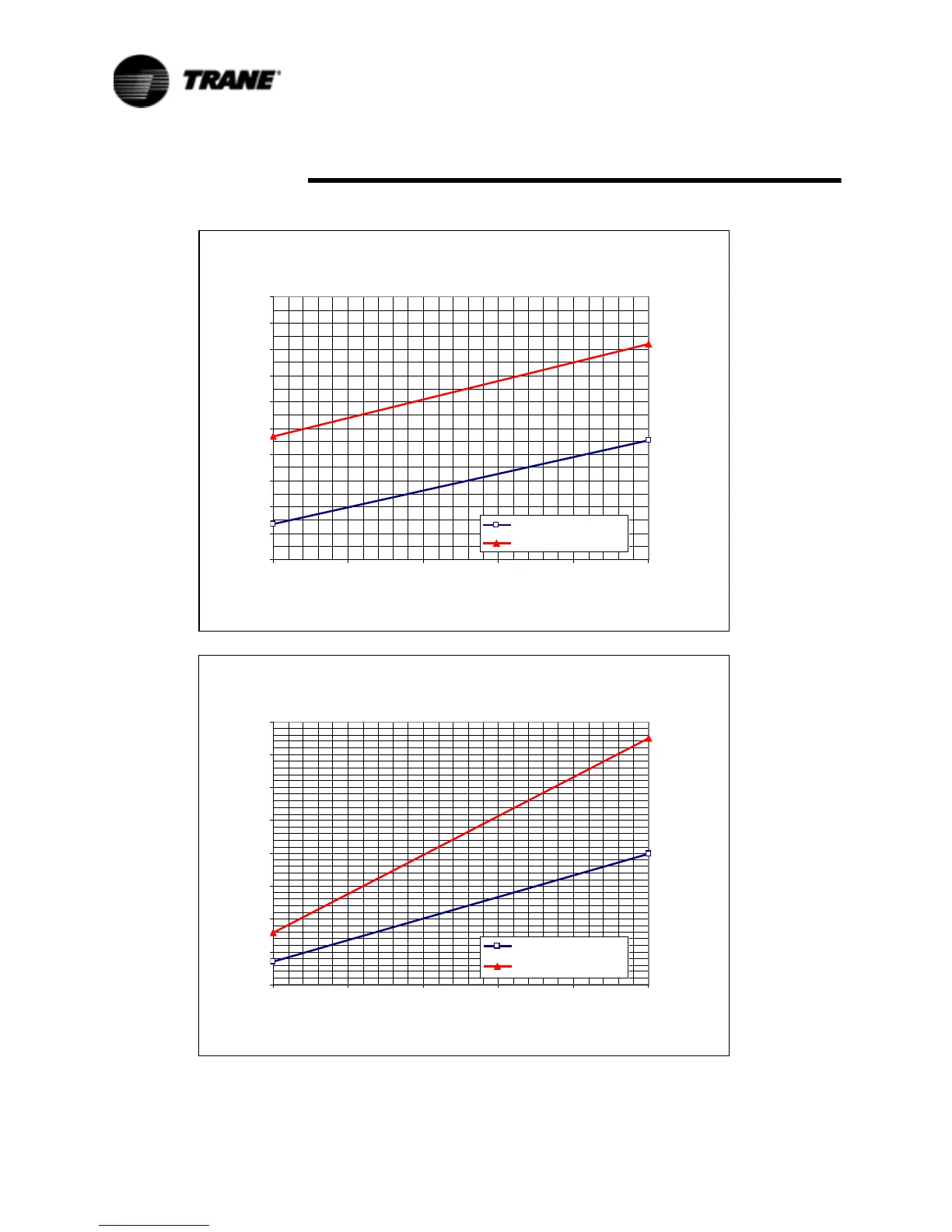

Figure 41 Oil Pressure Drop
35 & 40 Ton Compressor Oil Filter Replacement Chart
0
2
4
6
8
10
12
14
16
18
20
50 100 150 200 250 300
Condensing Pre s sure - Suction Pres s ur e (PSID)
Oil Filter Pressure Drop (PSID)
Normal Pressur Drop
Maximum Pressure Drop
50 & 60 Ton Compressor Oil Filter Replacement Chart
0
5
10
15
20
25
30
35
40
50 100 150 200 250 300
Condensing Pre s sure - Suction Pres s ur e (PSID)
Oil Filter Pressure Drop (PSID)
Normal Pressur Drop
Maximum Pressure Drop
