Installation — Electrical

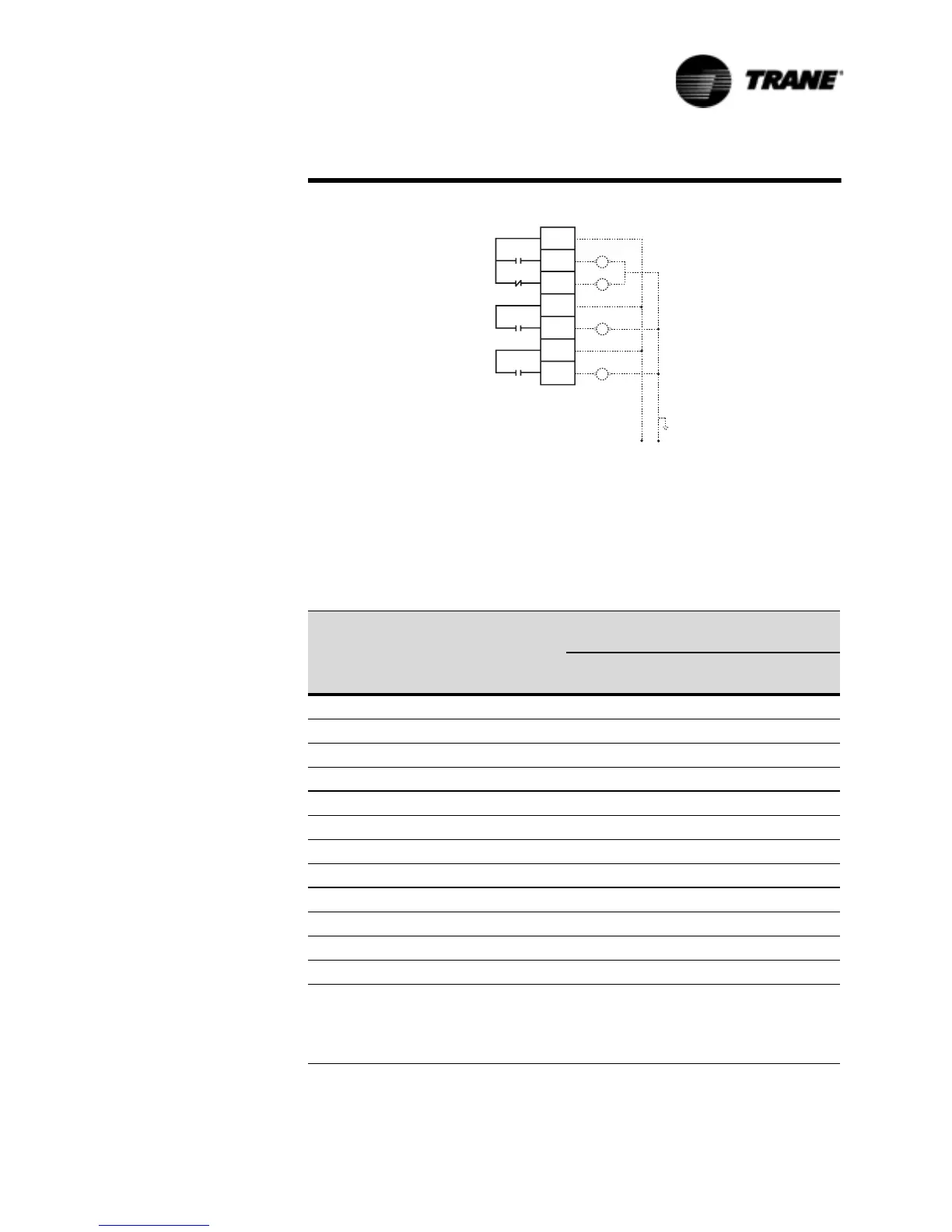

Figure 26 Alarm/Running/Maximum Capacity Contact Outputs
Table 13 Alarm/Running/Maximum Capacity Menu Settings
Programmable
Relay Setup
Setting (Service
Setting Menu)
Relays Output
Configuration
(Table 12)
Diagnostics that the Alarm
Relay(s) is Active
MMR/
CMR diag.
MAR/
CAR diag. IFW
1 1 YES NO NO
2 1 YES YES NO
3 1 YES YES YES
4 1 YES NO YES
5 2 YES NO NO
6 2 YES YES NO
7 2 YES YES YES
8 2 YES NO YES
9 3 YES NO NO
10 3 YES YES NO
11 3 YES YES YES
12 3 YES NO YES
Notes:
MMR = Machine Manual Reset
CMR = Circuit Manual Reset
MAR = Machine Auto Reset
CAR = Circuit Auto Reset
IFW = Informational Warnings
