16
PKG-SVX029A-EN

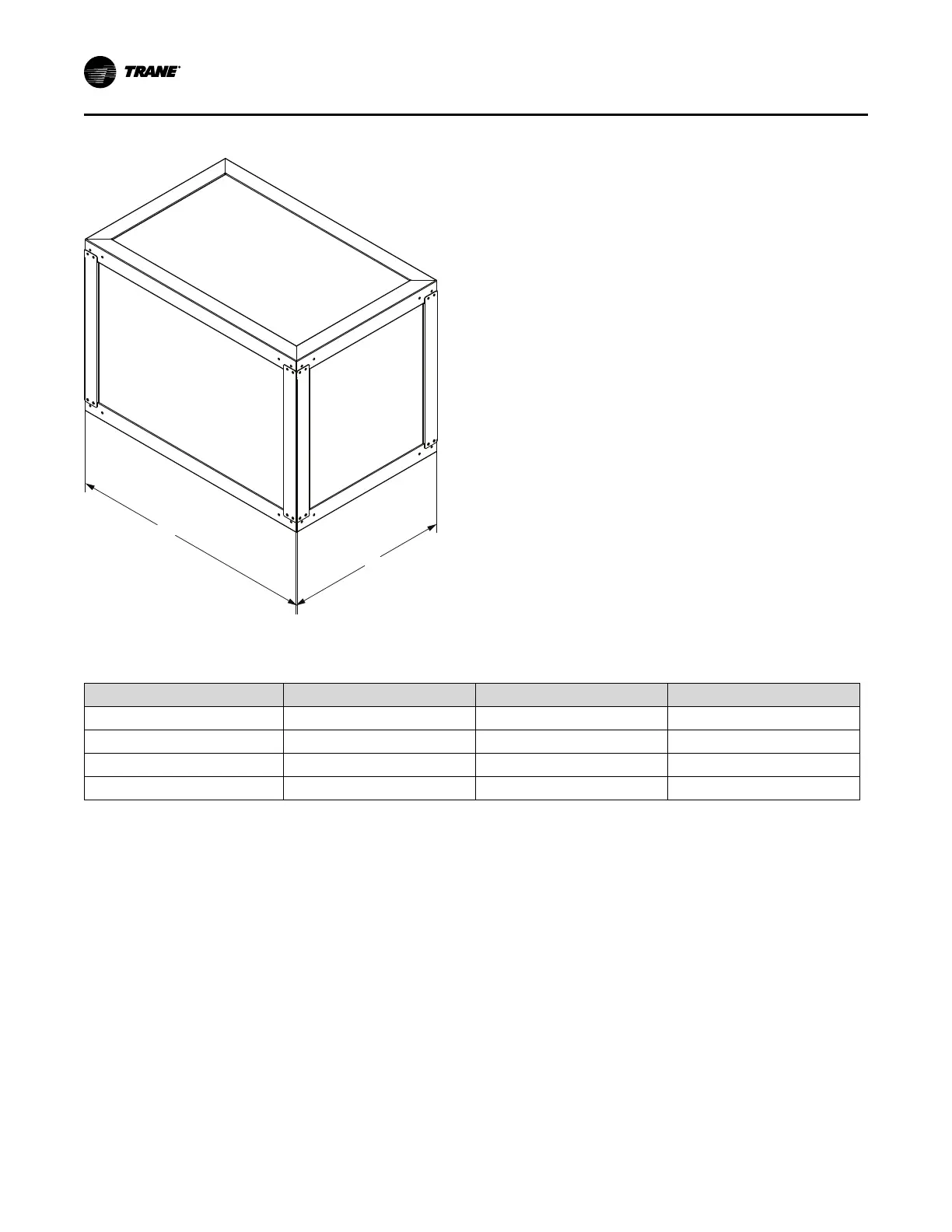

Figure 4. Standard plenum (option)
A
B
Note: Custom height plenums available upon request.
Table 4. Standard plenum (option)
Unit Size
Dim A (in.) Dim B (in.) Height (in.)
20, 25, 30, and 35T
42.92 28.55 30.00
40, 45, 50, 55, and 60T
67.77 43.40 30.00
65, 70, 75, and 85T
83.77 43.40 30.00
90, 100, and 110T
112.63 43.40 30.00
Dimensional Data
