Diverter

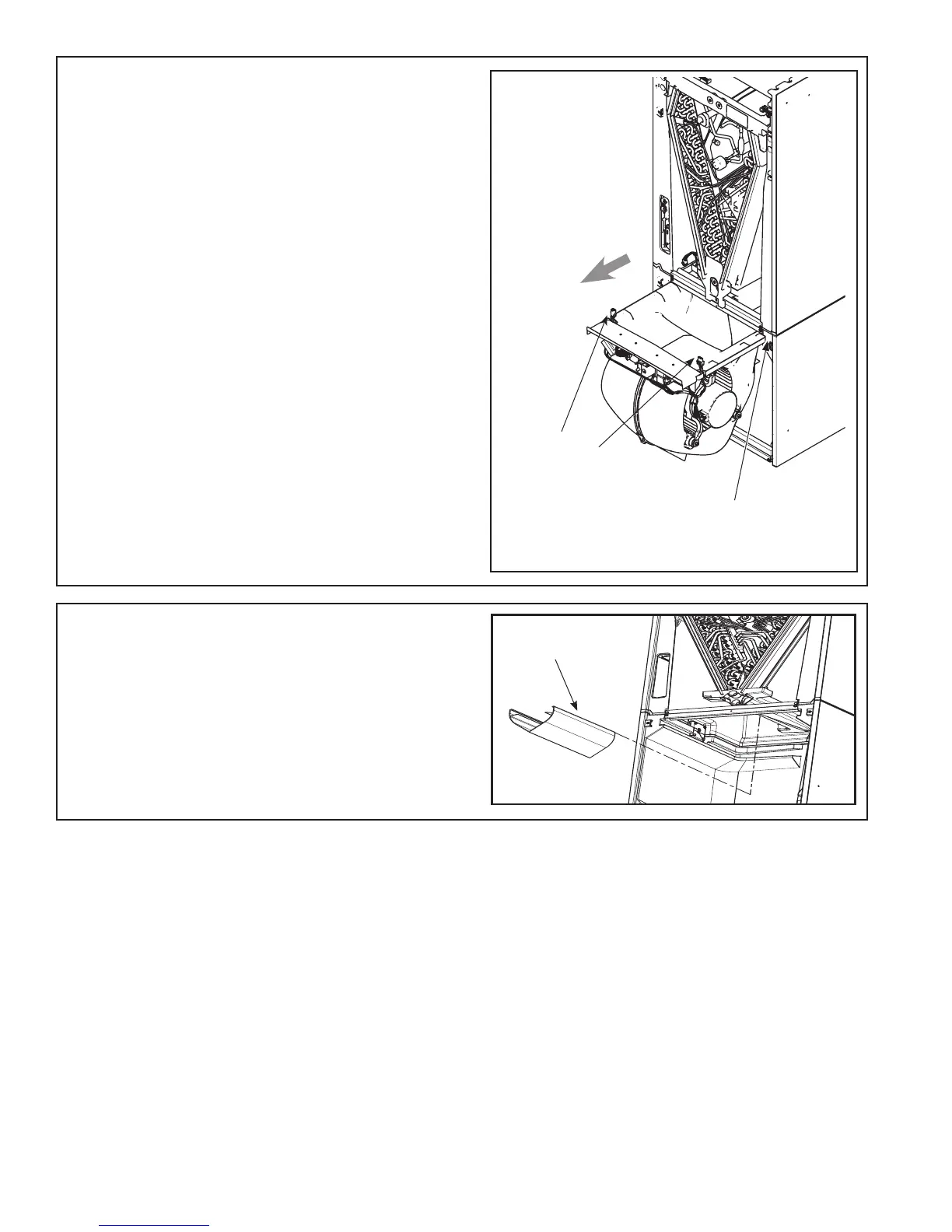

STEP 4 - Remove airflow diverter from the bottom of
coil drain pan by gripping the plastic diverter, using
your thumbs to spread the top of the diverter slightly
outwards, and then pulling down and out through the
blower opening as illustrated.
STEP 2 - Disconnect the two wiring connections
routed to the blower assembly.
STEP 3 - Slide Blower assembly out of unit using
built-in blower support channels and set aside.
Blower Support
Channel
Wiring
Connections
