50 CLCH-SVX07C-EN
Component Installation Requirements
Filter Installation
WARNING
Hazardous Voltage!
Disconnect all electric power, including remote disconnects before opening door. Follow proper
lockout/tagout procedures to ensure the equipment cannot be inadvertently energized. Failure to
disconnect power before servicing could result in death or serious injury.

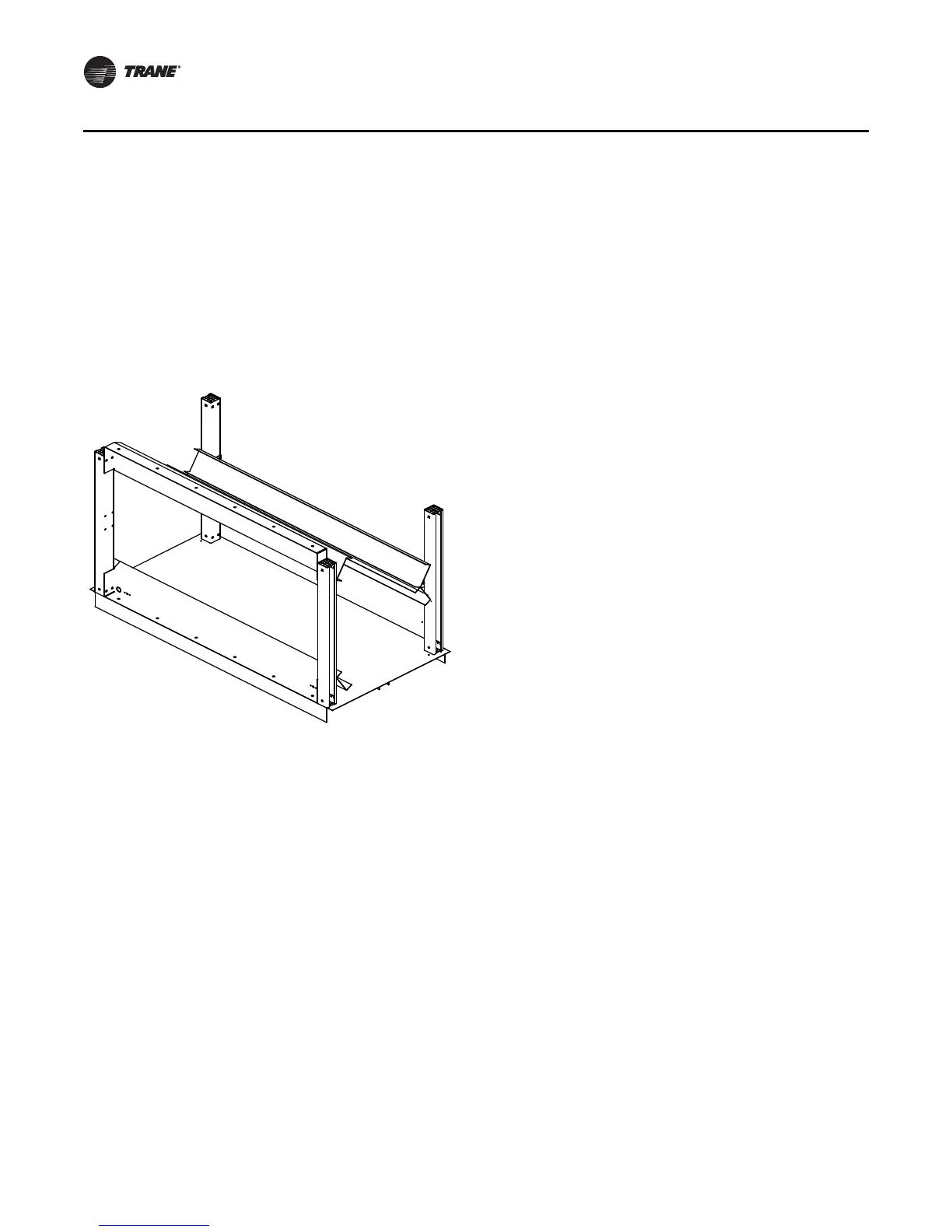

Figure 40. Filter block-off placement To install filters:
1. Disconnect the power to the unit.
2. Open the filter section access door.
3. Slide the filters into the tracks.
Note: Bag filters must be installed with the pleats in the
vertical plane.
4. The block-off is permanently installed and will create a
seal when the access door is closed.
5. Close the access door slowly to allow any gasketing to
compress.
