4 CLCH-SVX07C-EN
Introduction
Introduction
Overview of Manual
Use this manual to install, startup, operate, and maintain the Performance Climate Changer™ air
handler. Carefully review the procedures discussed in this manual to minimize installation and
startup difficulties.
Nameplate
Each Performance air handler section includes one or more nameplate/label (see Figure 1), which
identifies the type of section and functional components, customer tagging information, the unit
serial number, the unit order number, the build-section position for installation, and the unit model
number.
Note: The unit serial number and order number is required when ordering parts or requesting
service for a Trane air handler.

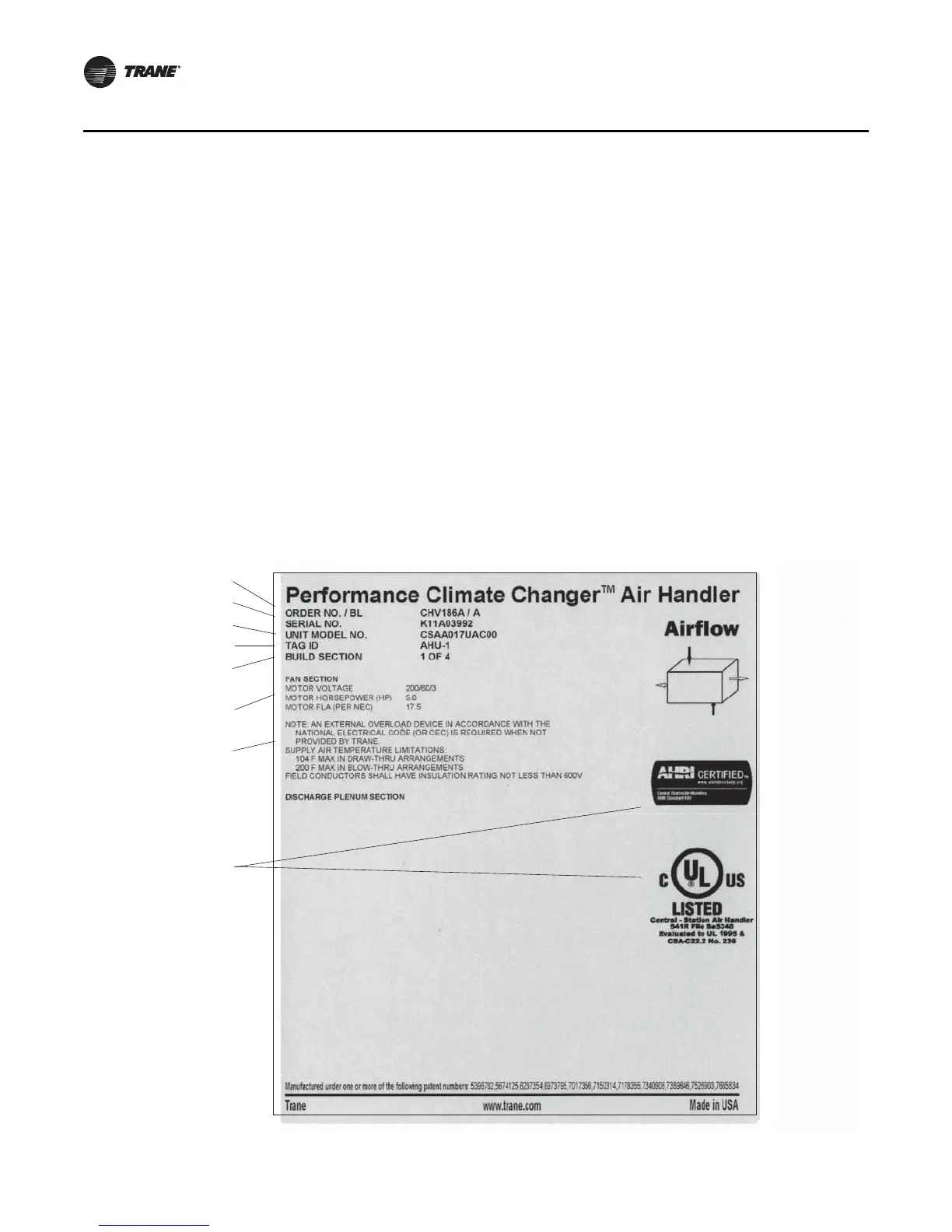

Figure 1. Performance air handler section nameplate
Agency listings and/or
agency certifications
Trane order number
Unit level serial number
Service model number
Unit tagging
Section location
Functional section type
Notes and additional
section information
