26 CLCH-SVX07C-EN
Installation - Mechanical
WARNING
Heavy Objects!
Do not use cables (chains or slings) except as shown. Each of the cables (chains or slings) used
to lift the unit must be capable of supporting the entire weight of the unit. Lifting cables (chains
or slings) may not be of the same length. Adjust as necessary for even unit lift. Other lifting
arrangements may cause equipment or property-only damage. Failure to properly lift unit could
result in death or serious injury.
Always rig subassemblies or sections as they ship from the factory. Never bolt sections together
before rigging.
• Make the loop of the sling parallel to the direction of airflow, if possible.
• When hoisting the unit into position, use the proper rigging method, such as straps, slings,
spreader bars, or lifting lugs for protection and safety. Use all lifting lugs provided.
• For unit sizes 3 to 120 with integral base frame, use field-provided spreader bars and slings to
rig units and subassemblies as shown in Figure 6. The air handler is not designed to be lifted
or rigged from the top of the unit.

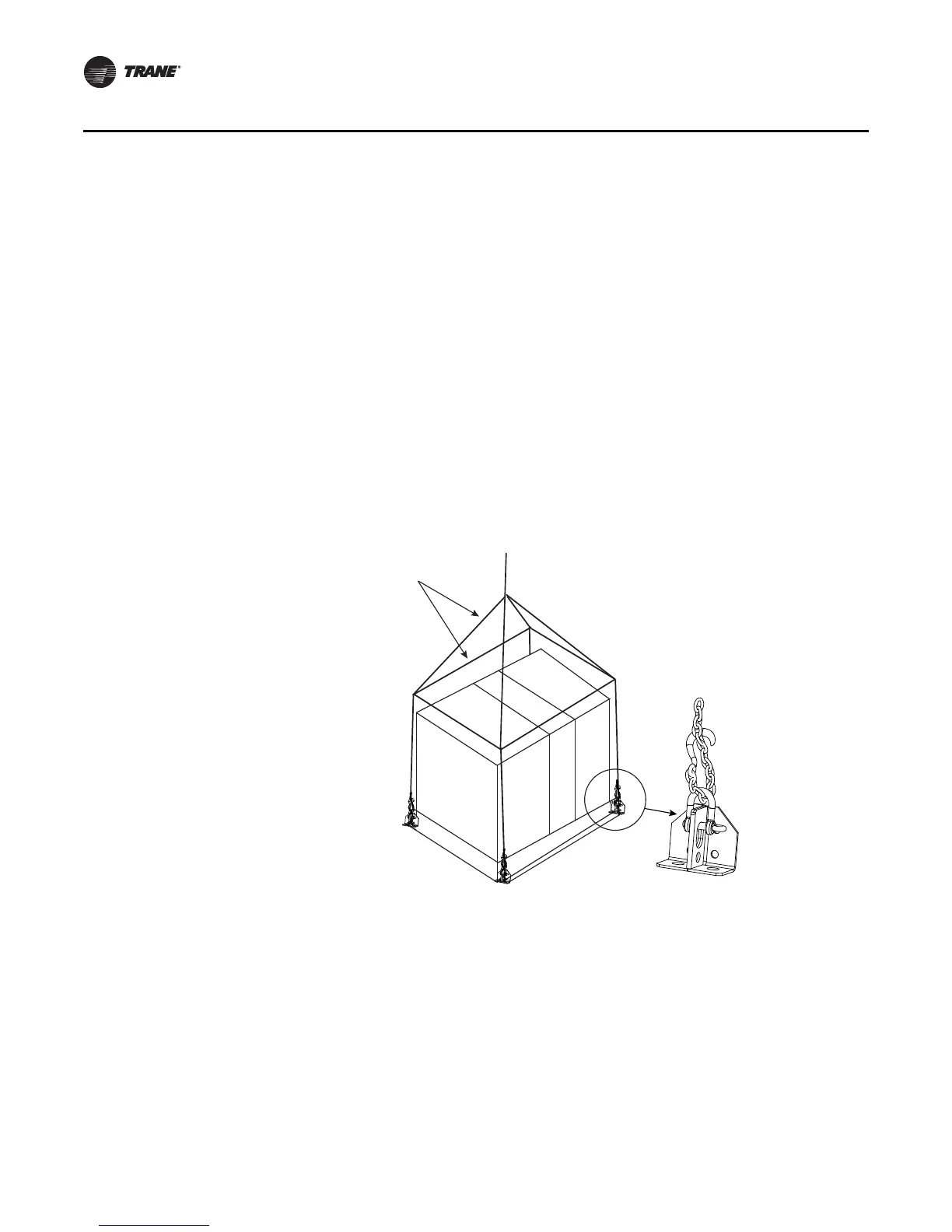

Figure 6. Lifting detail for unit sizes 3 to 120
Rigging and spreader
bars furnished
by others
