CLCH-SVX07C-EN 47
Installation - Mechanical
2. Apply gasketing to the mating surface of the primary unit at the bottom of the opening (see
Figure 36.
3. Lift the secondary unit, follow instructions in “General Lifting Considerations” on page 25 (see
Figure 6), and place on the black unit support brackets (see Figure 33, p. 45. The secondary unit
must be centered on the primary unit between the black unit support brackets.
4. Install trim angles as shown in Figure 37 inserting the 10-16 x 3/4-inch self-drilling screws using
a powered impact gun and taking care not to strip the screws.

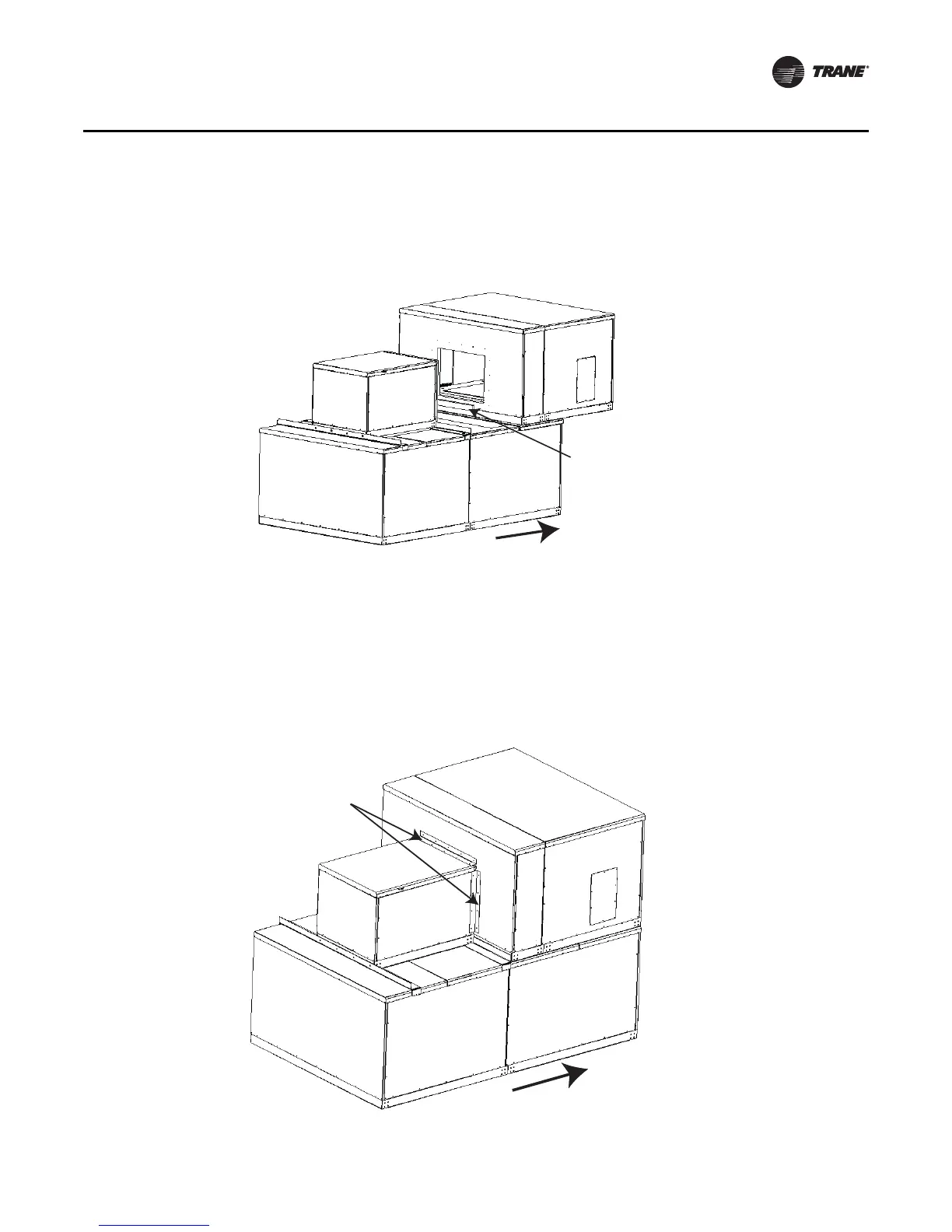

Figure 36. Apply gasketing to the mating surface of the primary unit.
Figure 37. Install trim angles
Gasket
1-inch T x
2 1/2 inch W
Vertical and horizontal
trim angles
To Next Page
