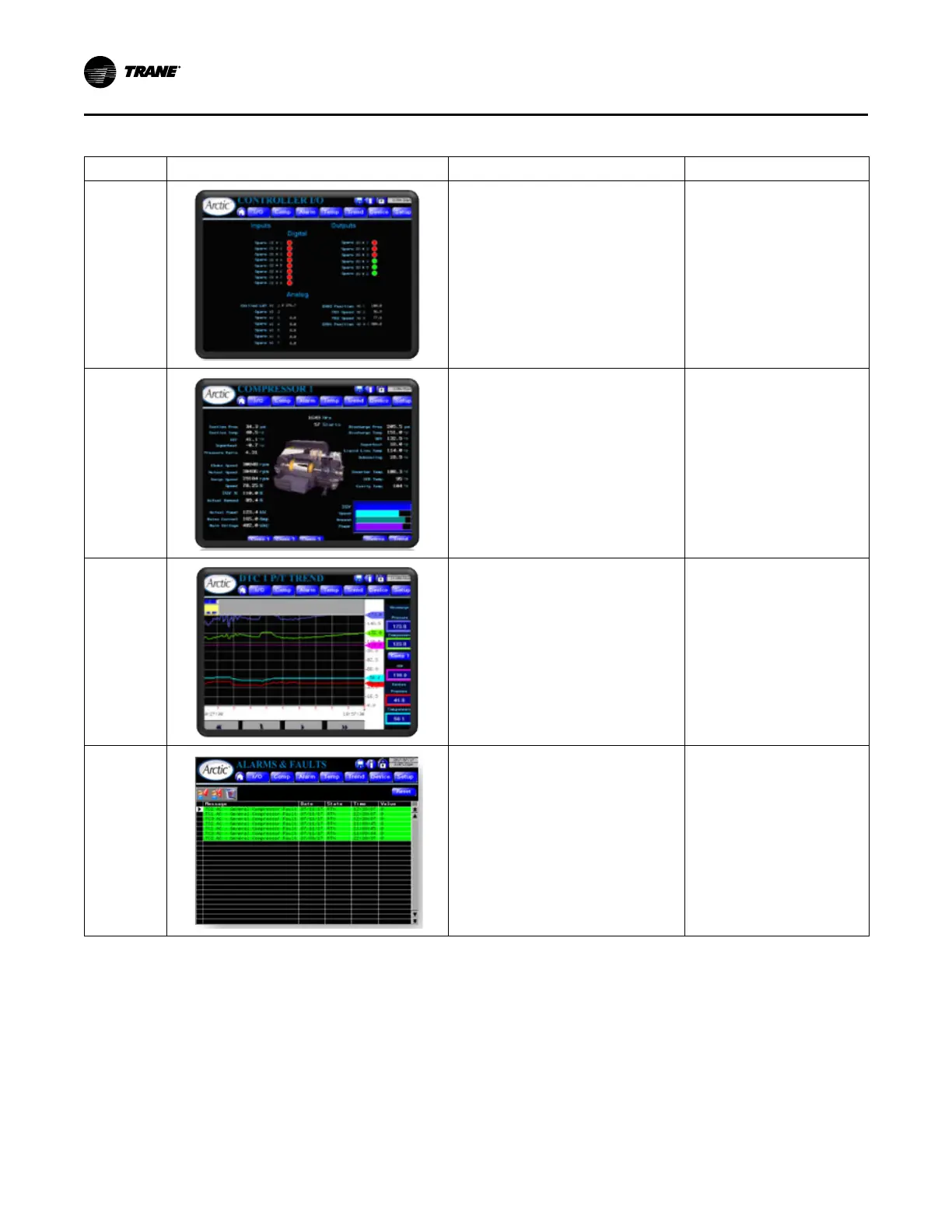

Table 8. HMI main menu screens (continued)
Screen User Interface Function Access
Controller I/O
Displays current value of all hardwired
Companion PLC inputs and outputs.
Main Menu > I/O > MCX061V
Compressor
(1 for each
compressor)
Provides detailed snap-shot information
regarding each compressor.
Main Menu > Comp > Comp X
DTC
Pressure/
Temperature
Trend
30 minute trend of compress suction and
discharge temperature and pressure.
Any compressor page > Trend
Alarms
Display, acknowledge and reset system
alarms.
Note: All alarms must be acknowledged and
reset (green) before deletion.
Main Menu > Alarm
Operating Procedures
