TK 55676-19-IM-EN
23
Typical Component Locations
IImmppoorrttaanntt:: Proper installation of each component onto the vehicle is critical! Refer to the Thermo King TriPac
Installation Standards Guide (TK 56498) before beginning the installation. Adhering to the installation
standards will help assure the components are installed correctly and the system operates as designed. It is
the responsibility of the installer to follow these standards.

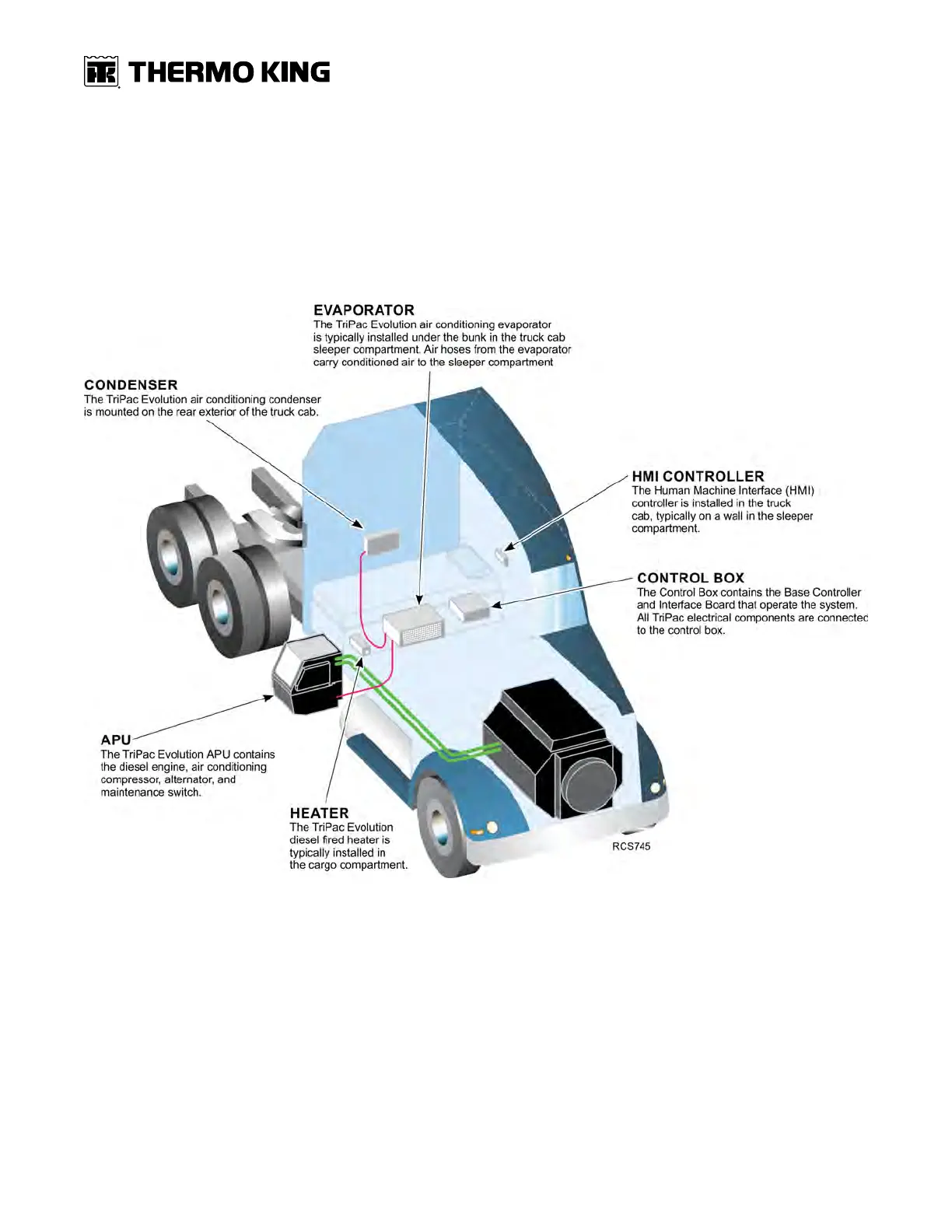

Figure 9. Typical TriPac Evolution System Component Locations
