90
TK 55676-19-IM-EN
Unit Setup Procedures
Before performing the Run In Procedure and then release unit to customer, the TriPac EVOLUTION control system must
be setup. You will program the system configuration and programmable features based on unit options and customer
requirements. This procedure will use the TK Monitor communication software that is on the TriPac EVOLUTION
Interface Board.
NNoottee:: For additional information about TK Monitor refer to TK 55739, Section 6, A51A, Communication Using TK
Monitor.
NNoottee:: An Internet connection is not required to operate TK Monitor.
RReeqquuiirreedd TToooollss
• PC computer with Internet Explorer 8 or higher.
• Interconnect cable USB to Mini-B (TK 204-2000)
EEnntteerr TTKK MMoonniittoorr
1. Turn the unit on by pressing the MMooddee button on the HMI (the knob on the left) for 2 seconds.
2. With control box cover removed. Check the green “heartbeat” LED on the Interface Board. It will flash rapidly when
first turned on. After several seconds the flashing rate will slow to the normal rate of one blink per second.
3. Locate the USB Mini-B connector (J39) near the lower right of the Interface Board.
4. Connect the USB interconnect cable to the Interface Board and a laptop computer running Microsoft Windows and
Internet Explorer 8 or higher.
5. Open a “My Computer” window on the computer.
6. Locate and double click on the ““TTKK MMoonniittoorr”” drive. This will open up a window showing about 8 files.

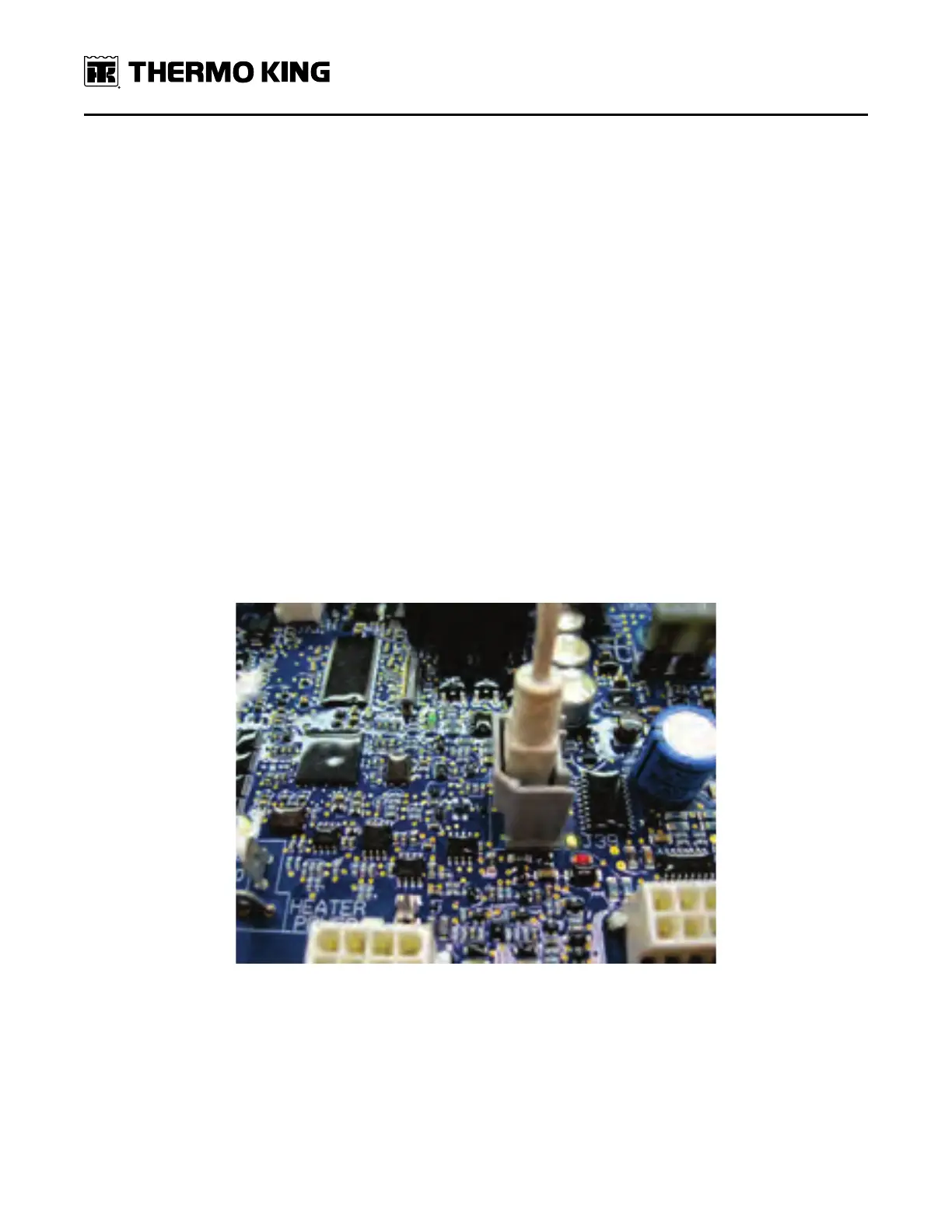

Figure 50. USB Mini-B Connector (J39) Shown
AA//CC SSyysstteemm CChhaarrggiinngg aanndd AAPPUU EEnnggiinnee SSttaarrtt--uupp PPrroocceedduurreess
