TK 55676-19-IM-EN
91
Figure 51. Window With 8 Drives Shown

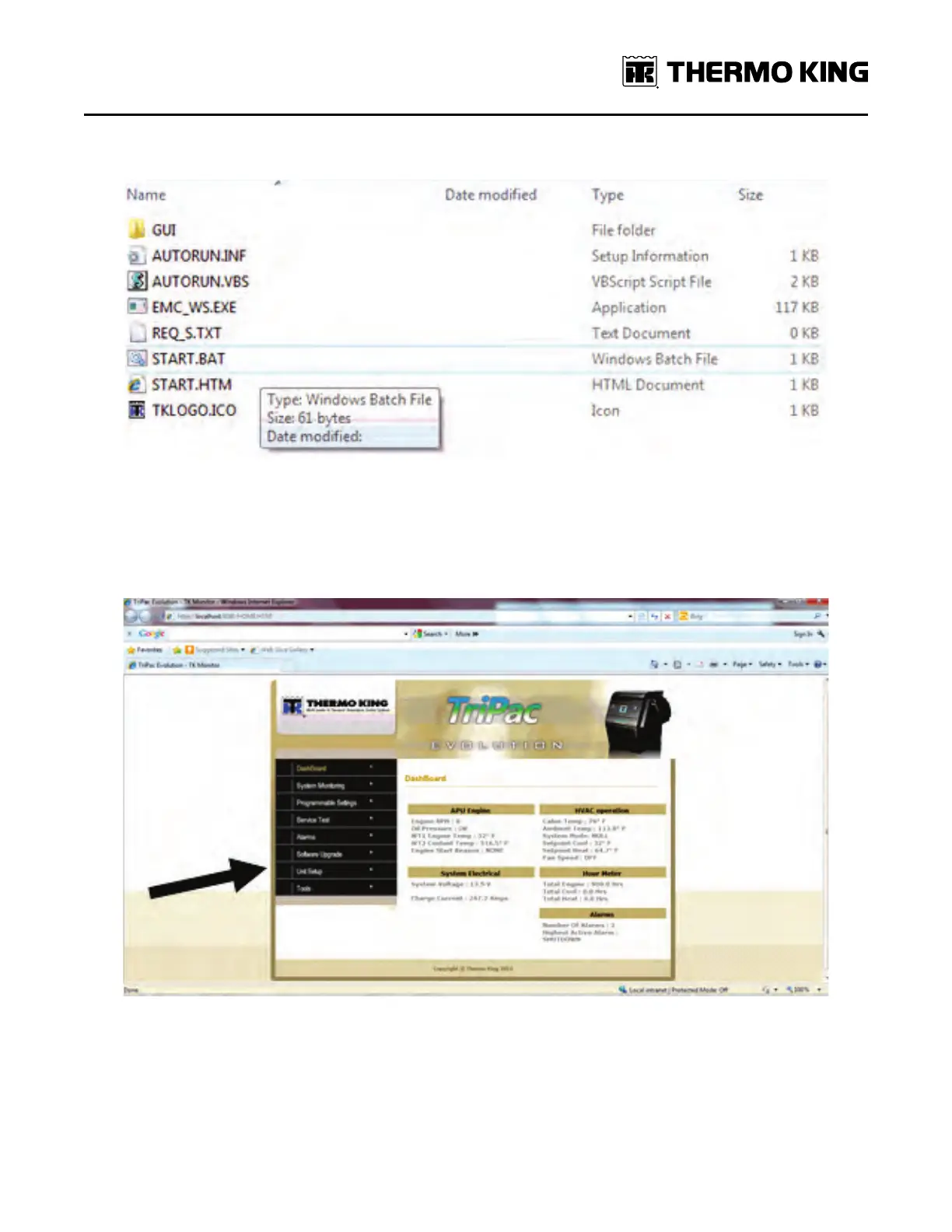

7. Double click ““SSTTAARRTT..BBAATT”” to launch TK Monitor.
8. TK Monitor opens as an Internet Explorer window to the DDaasshhbbooaarrdd Screen. On the left is a menu of the different
screens available in TK Monitor. A different screen may be select by mouse-clicking any one of them.
9. Select the UUnniitt SSeettuupp Screen. This screen allows the technician to configure the unit based on installed options and
input unit identification information – an important set up procedure after installation of the unit.
AA//CC SSyysstteemm CChhaarrggiinngg aanndd AAPPUU EEnnggiinnee SSttaarrtt--uupp PPrroocceedduurreess
