TK 55676-19-IM-EN
31
A/C Receiver Drier Installation
IImmppoorrttaanntt:: See “Receiver Drier Installation Standards” in Section 5 of the Thermo King TriPac Installation Standards
Guide (TK 56498). THESE STANDARDS MUST BE FOLLOWED!
Special Tools Required
Drill Motor
3/8” Drill Bit
Level
NNoottee:: It is recommended to mount the receiver drier directly onto the sleeper to reduce hose flexing.
Locate an area on the exterior of the tractor to install the receiver drier.
Typical Mounting Locations:
a. Side-by-side Mount ((DDEETTAAIILL AA))
b. Mid-height Mount ((DDEETTAAIILL BB)).
c. High Mount ((DDEETTAAIILL CC)).
1. Position and level the receiver drier bracket and mark each of the two mounting holes. Drill two 3/8” holes.
2. Attach two large hose clamps to the bracket with 3/8” stainless mounting bolts, washers and locking nuts (installer
supplied) and tighten securely.
3. With the switch facing out, install the receiver drier onto the bracket and tighten the hose clamps securely.

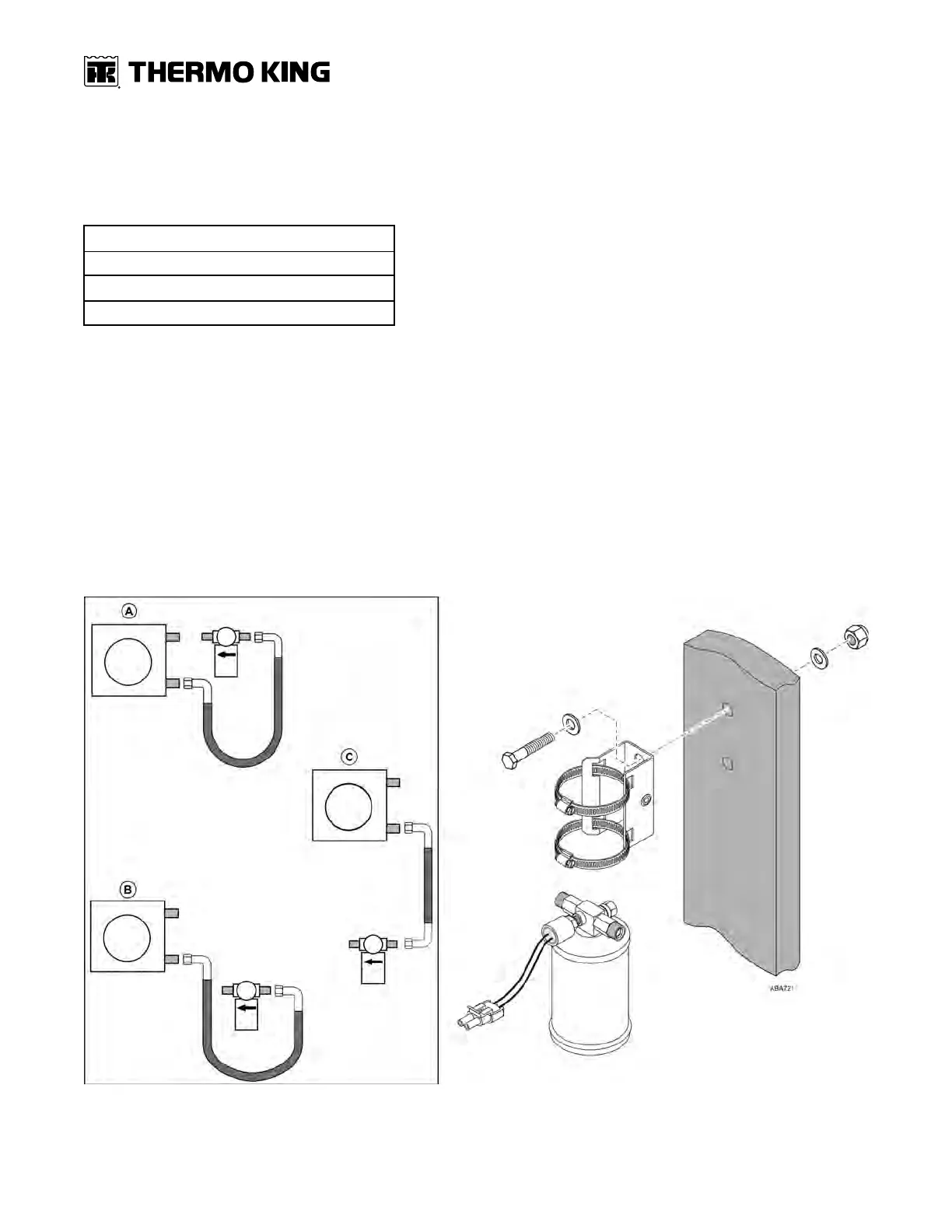

Figure 15. Receiver Drier Installation Shown
