66
TK 55676-19-IM-EN
b. OPTION - Install supplied fuel pump bracket for fuel heater.
c. Position pickup tube as needed to facilitate fuel line connections and tighten nut to 16 to 18 ft-lb. (21 to 24 N•m).
7. Install supplied warning nameplate onto fuel tank in a visible area near fuel cap.

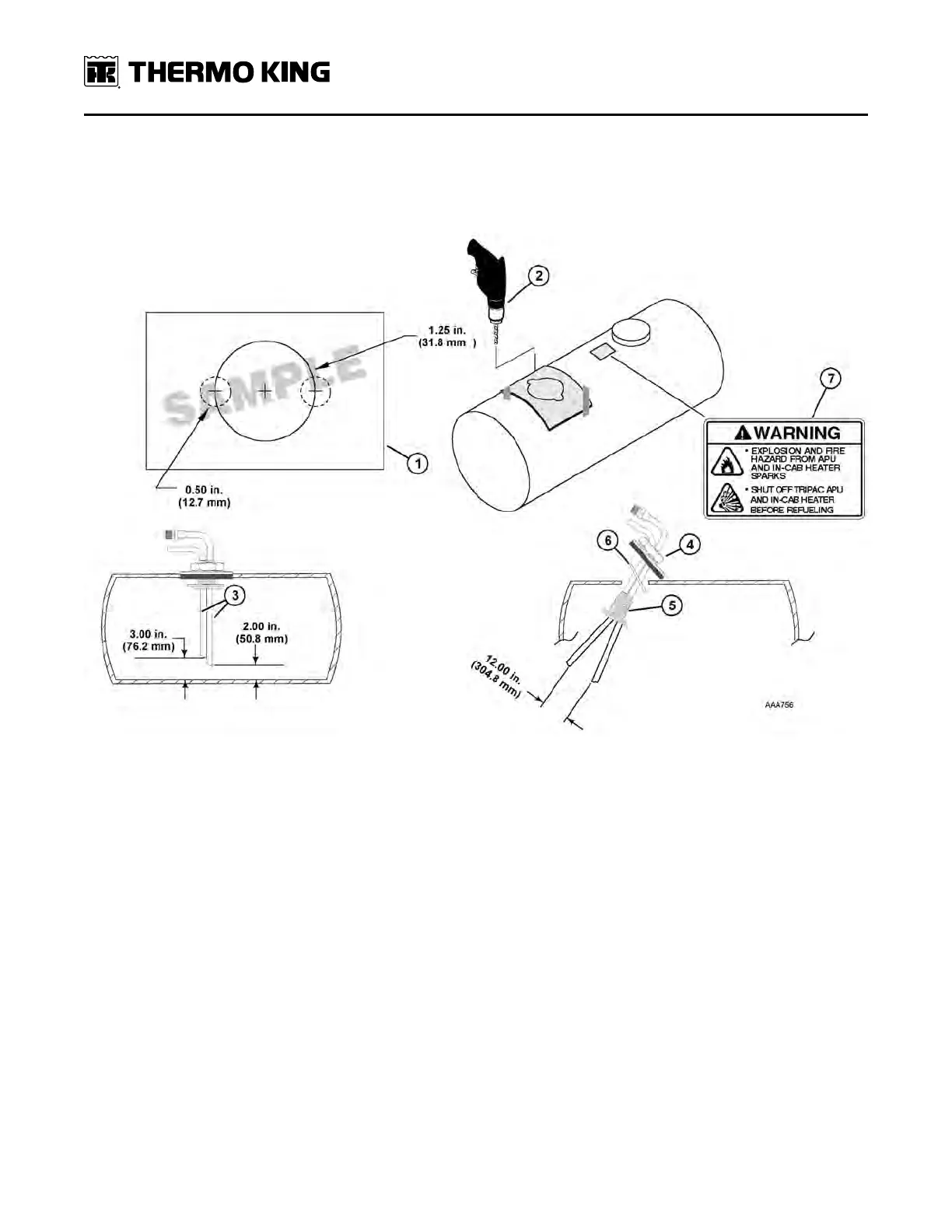

Figure 37. Alternative Installation Drilling Hole In Fuel Tank Shown
FFuueell PPiicckkuupp TTuubbee IInnssttaallllaattiioonn
