Trane Thermostats - 3 Heat;2-Cool Non-Programmable Thermostat

BAS-SVX36C-EN 15
Installation

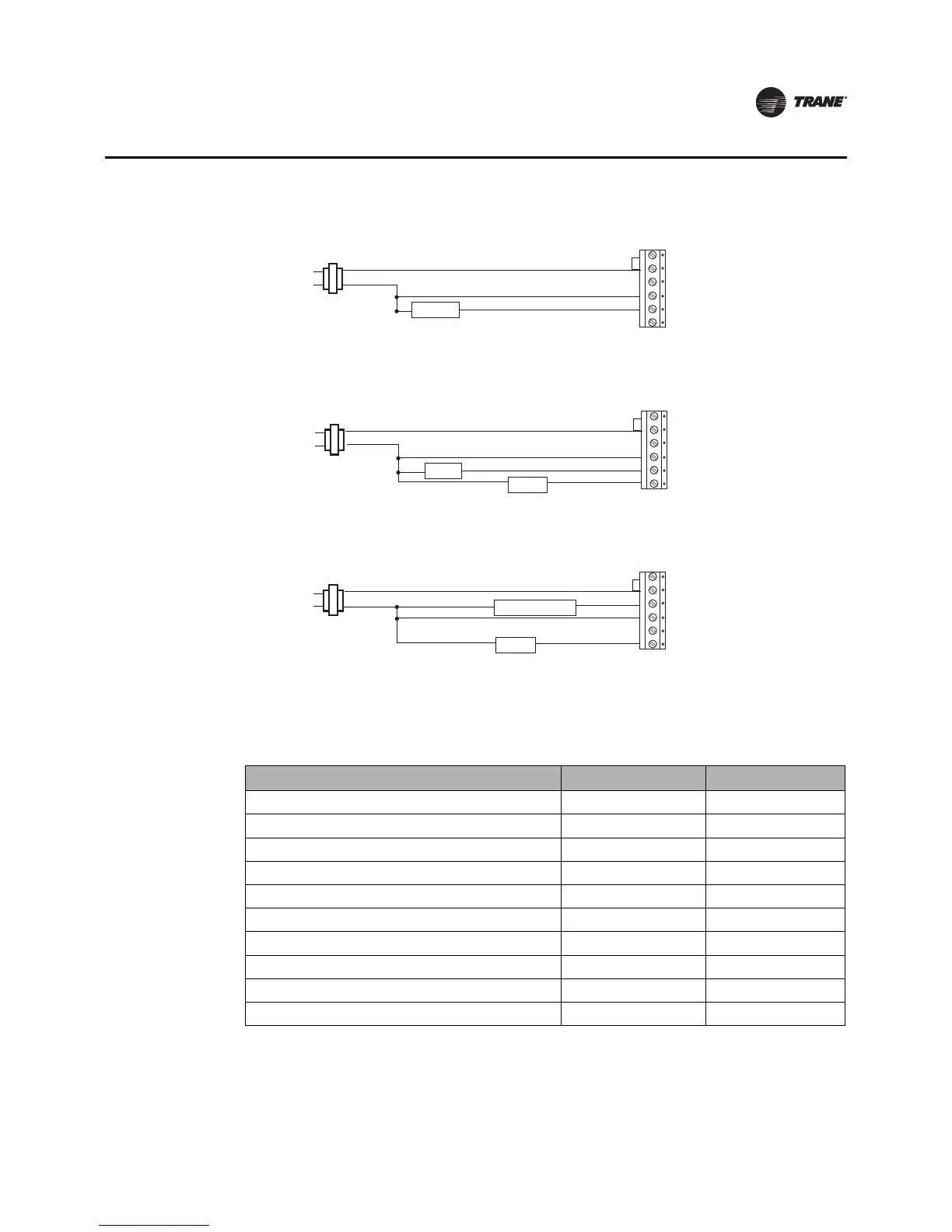

Figure 8. 1H/1C Thermostat, 1H Only, Conventional Without Fan (Option 2)
(jumper
installed)
Rc
R
Y
C
W
G
L2
L1 (hot)
24 Vac
Heat
Figure 9. 1H/1C Thermostat, 1H Only, Conventional With Fan (option 3)
(jumper
installed)
Rc
R
Y
C
W
G
Fan
L2
L1 (hot)
24 Vac
Heat
Figure 10. 1H/1C Thermostat, 1C Only, Conventional (option 4)
(jumper
installed)
Rc
R
Y
C
W
G
Fan
L2
L1 (hot)
24 Vac
Compressor
3-Heat/2-Cool Non-Programmable Thermostat
Use Table 4 and the diagrams that follow to correctly wire the thermostat for your system type.
Table 4. SystemType Options for 3H/2C Non-ProgrammableThermostats
System Type Value for Option 01
See Diagram
1-heat/1-cool, conventional 0 Figure 11
1-heat/1-cool, heat pump without auxiliary heat 1 Figure 12
1-heat only, conventional without fan 2 Figure 13
1-heat only, conventional with fan 3 Figure 14
1-cool, conventional 4 Figure 15
2-heat/1-cool, heat pump with auxiliary heat 5 Figure 16
2-heat/1-cool, conventional 6 Figure 17
1-heat/2-cool, conventional 7 Figure 18
2-heat/2-cool, heat pump without auxiliary heat 8 Figure 19
3-heat/2-cool, heat pump with auxiliary heat 9 Figure 20
