16 BAS-SVX36C-EN
Installation

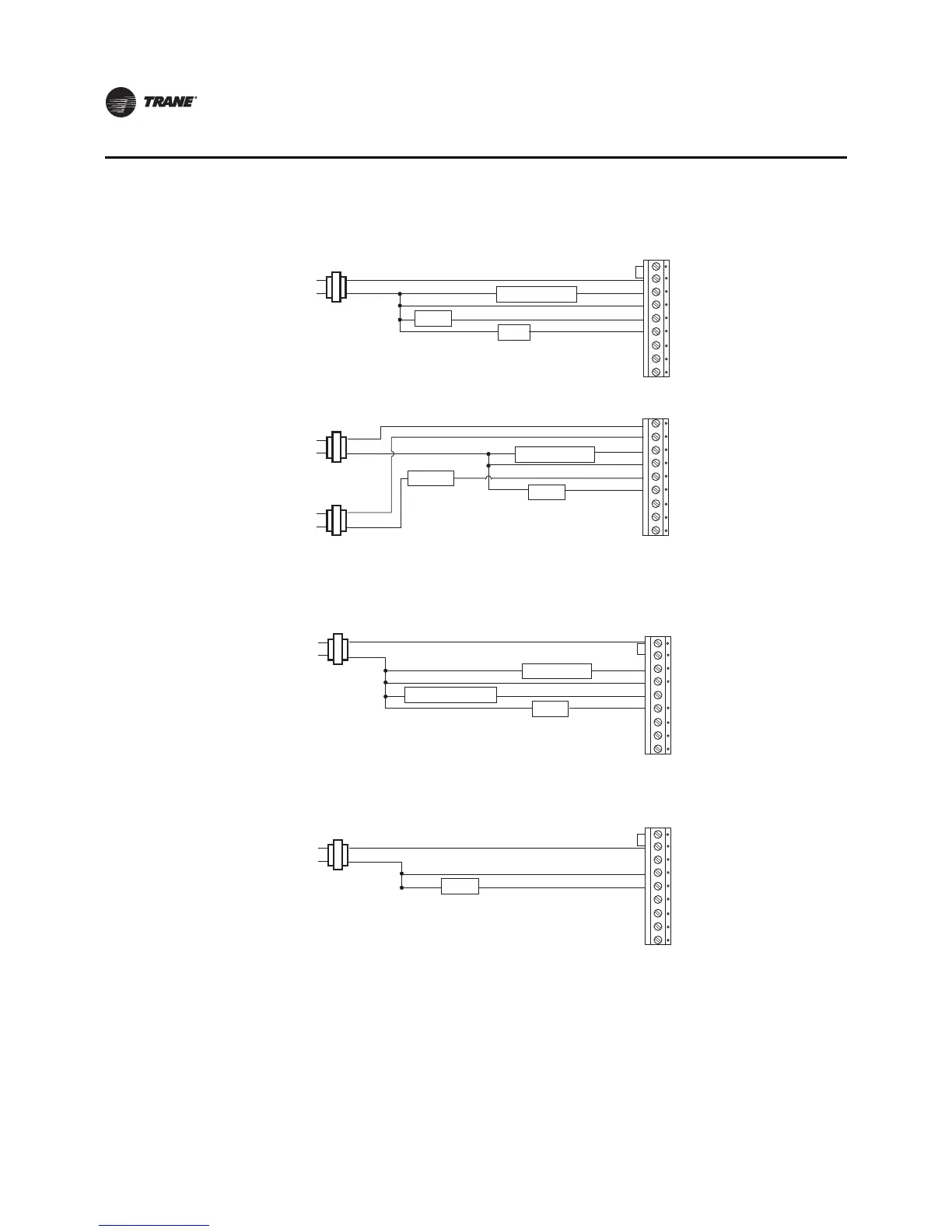

Figure 11. 3H/2C Non-Programmable Thermostat, 1H/1C, Conventional (Option 0)
Rc
R
Y
W2
Y2
L
C
W
G
Fan
L2
L1 (hot)
24 Vac
Heat
Compressor
Single Transformer:
(jumper
installed)
Rc
R
Y
W2
Y2
L
C
W
G
Fan
L2
L1 (hot)
24 Vac
Heat
Compressor
L2
L1 (hot)
24 Vac
Cooling Transformer
Heating Transformer
Two Transformers:
(jumper
removed)
Figure 12. 3H/2C Non-ProgrammableThermostat, 1H/1C, Heat Pump Without Auxiliary heat
(Option 1)
Rc
R
Y
Aux/E
Y2
L
C
O/B
G
Fan
L2
L1 (hot)
24 Vac
Changeover Valve
Compressor
(jumper
installed)
Figure 13. 3H/2C Non-ProgrammableThermostat, 1H Only, Conventional Without Fan (Option 2)
Rc
R
Y
W2
Y2
L
C
W
G
L2
L1 (hot)
24 Vac
Heat
(jumper
installed)
