BAS-SVN026G-EN 7
General Information

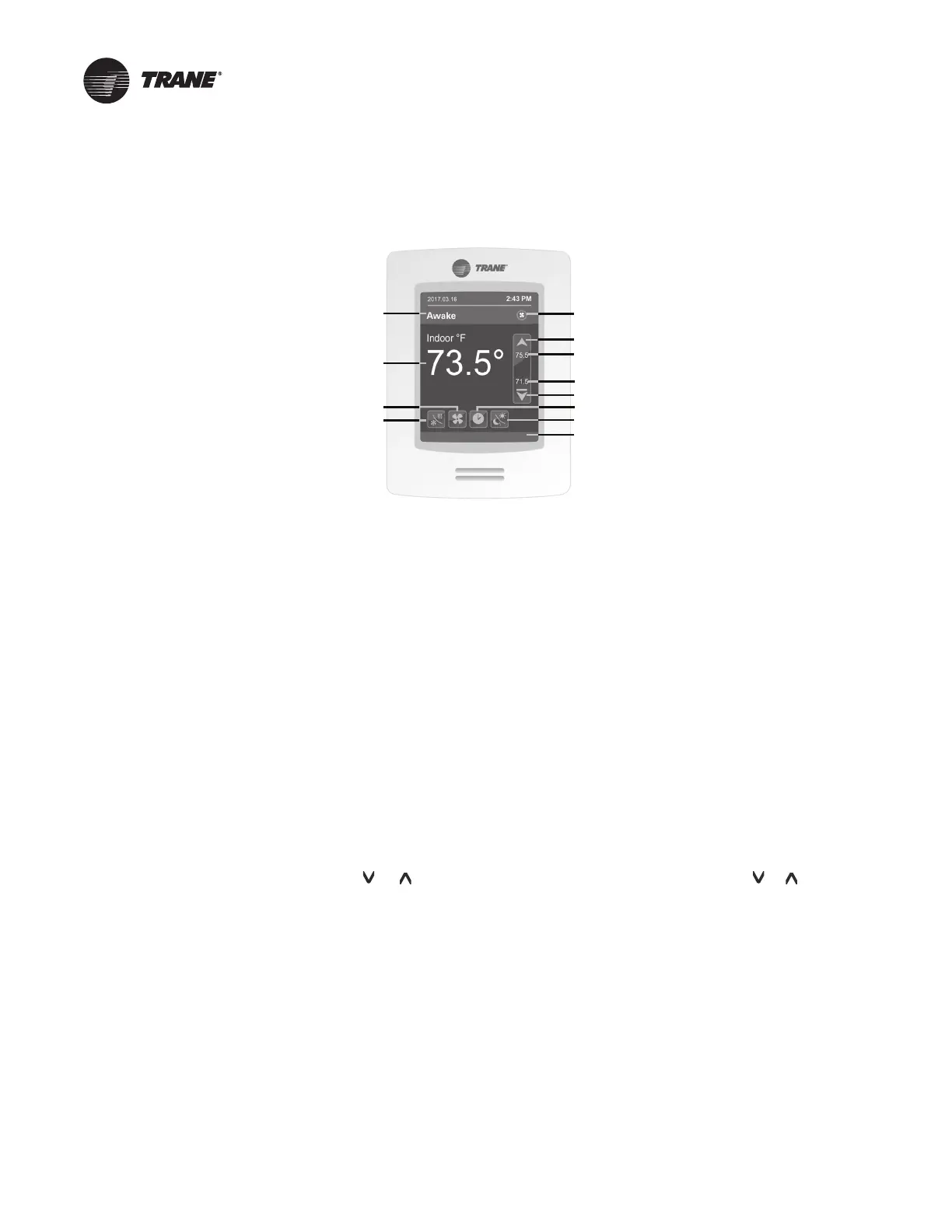

The sensor displays Power on during initial power-up and advances to display the Home Screen.
All user accessible functi
ons are easily set from the Home screen:
Occupancy
Status
Temperature
Heat/Cool Mode
Fan Mode
Override
Message Line
Please adjust clock
Schedule Menu
Increment Down
Cooling Setpoint
Increment Up
Fan Status
Heating Setpoint
• Occupancy Status: displays either Awake, Away, Home, Sleep, Temp.Hold, Perm.Hold, or
Vacation to indicate current occupancy mode.
• Fan Status: when fan is running, exterior circle indicates current fan speed.
– No Segments: Fan is OFF
– One Segment: 1% to 33%
– Two Segments: 34% to 66%
– Three Segments: 67% to 100%
• Setpoints: When Heat/Cool Mode is Cool Only or Heat Only, the current setpoint in use is
displa
yed in the center of the setpoint control bar.
When mode is Auto or Off, the co
oling setpoint is displayed just below the red bar and the
heating setpoint is displayed just above the blue bar.
• Message Line: provides information regarding the current state of the equipment. One of two
m
essages may be displayed:
– Please adjust clock
– Vacation mode
– Temperature sensor failure
• Single touch of
or advances the setpoint value by one. Holding down or rapidly
advances through the available range of values.
• If configured to do so, the Home scr
een will revert to a blank standby screen after 2.5 minutes
of user inactivity.
• All settings are retained in sensor mem
ory in the event of a power outage.
• Temperature: displays either the current space tem
perature or the temperature setpoint
currently being used to condition the space.
