Trane Tracer ZN.520 Installation Owner Diagnostics

18 UV-SVP01A-EN
Specifications
Dimensions
Tracer ZN.520 board and mounting
hardware:
• Height: 5.25 inches (133 mm.)
• Width: 5.50 inches (140 mm)
• Depth: 2.25 inches (57 mm)
Power Requirements
• 18 to 32 VAC (24 VAC nominal)
• 50 or 60 Hz
• 570 mA AC
Operating Environment
• 32° to 140°F (0× to 60°C)
• 5% to 95% relative humidity,
non-condensing
Storage Environment
• -40° to 185°F (-40° to 85°C)
• 5% to 95% relative humidity,
non-condensing
Agency Listings
• UL and CUL 916 Energy Man-
agement System
• Agency Compliance IEC 1000-
4-2 (ESD), IEC 1000-4-4(EFT),
IEC 1000-4-5 (Surge)

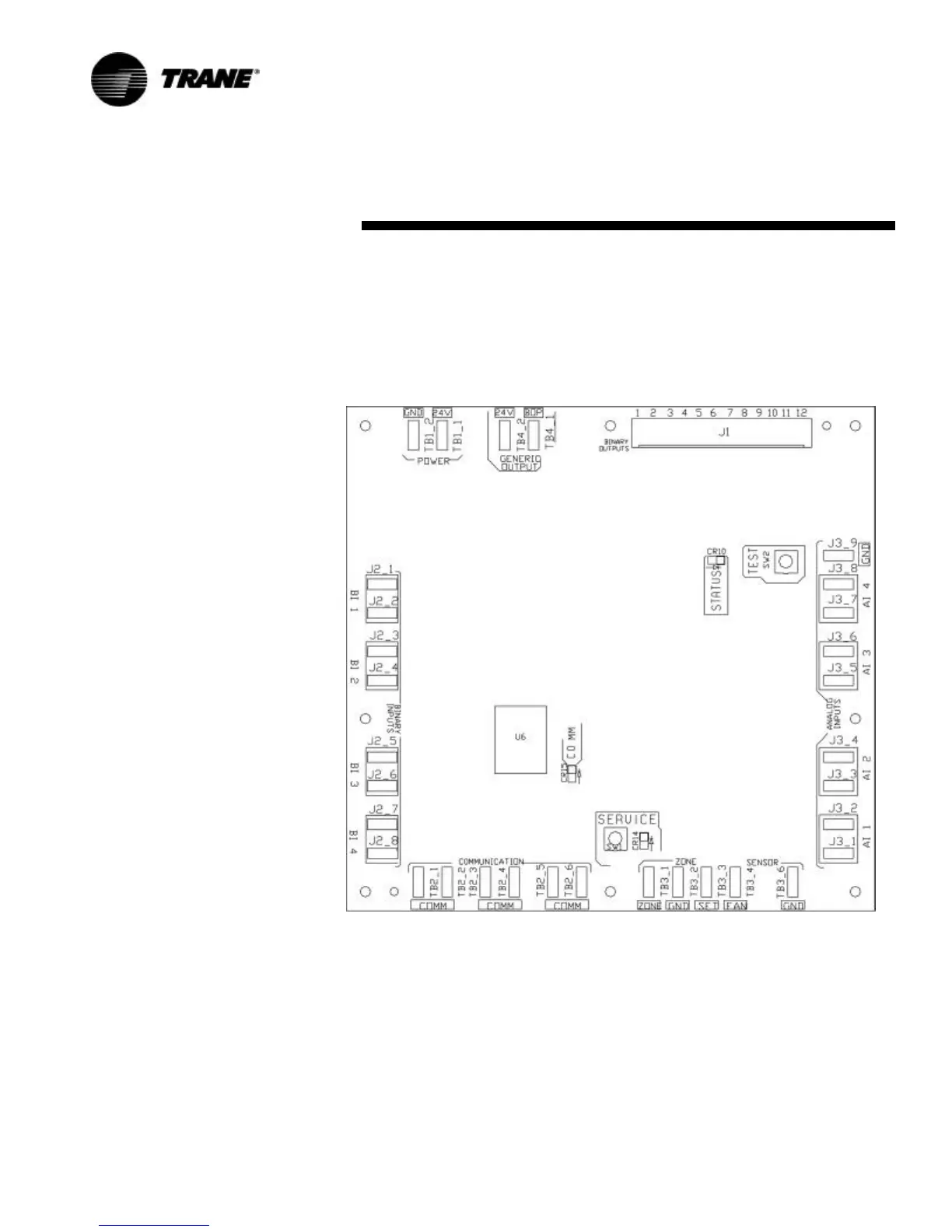

Figure 7: Tracer ZN.520 circuit board
schematic
Installation and Wiring

Trane Tracer ZN.520 Specifications
