Routine Maintenance
CLCH-SVX009A-EN 59

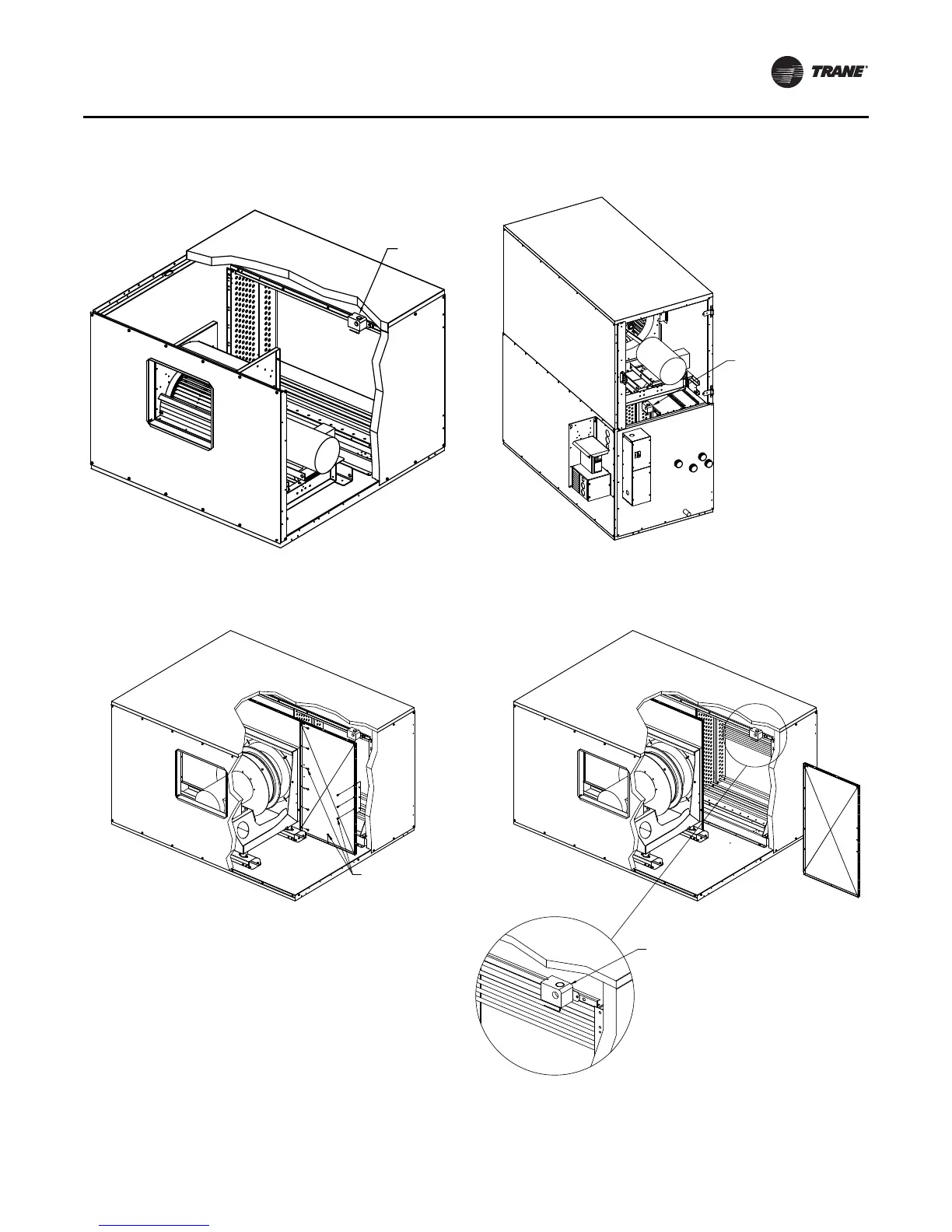

Figure 49. Resetting low limit switch for horizontal units
with housed fans
Low limit
freeze stat
Note: Fan access door
removed for clarity
Figure 50. Resetting low limit switch for vertical units
Low limit freeze stat
Note: Fan access door
removed for clarity only
Figure 51. Resetting low limit switch for horizontal DDP fan units sizes 3, 6, 10, and 12
Removable
access
panel
Screw: 10-16 x 0.750 self-driller
Remove all from perimeter panel
Panel
removed
from unit
Low limit freeze stat
Detail A
