6 CLCH-SVX009A-EN
Introduction
Overview of Manual
Use this manual to install, startup, operate, and maintain
the Performance Climate Changer™ air handler model
UCCA. Carefully review the procedures discussed in this
manual to minimize installation and startup difficulties.
Nameplate
Each Performance air handler section includes one or
more nameplate/label (see Figure 1), which identifies the
type of section and functional components, customer
tagging information, the unit serial number, the unit order
number, the build-section position for installation, and the
unit model number.
Note: The unit serial number and order number is
required when ordering parts or requesting service
for a Trane air handler.

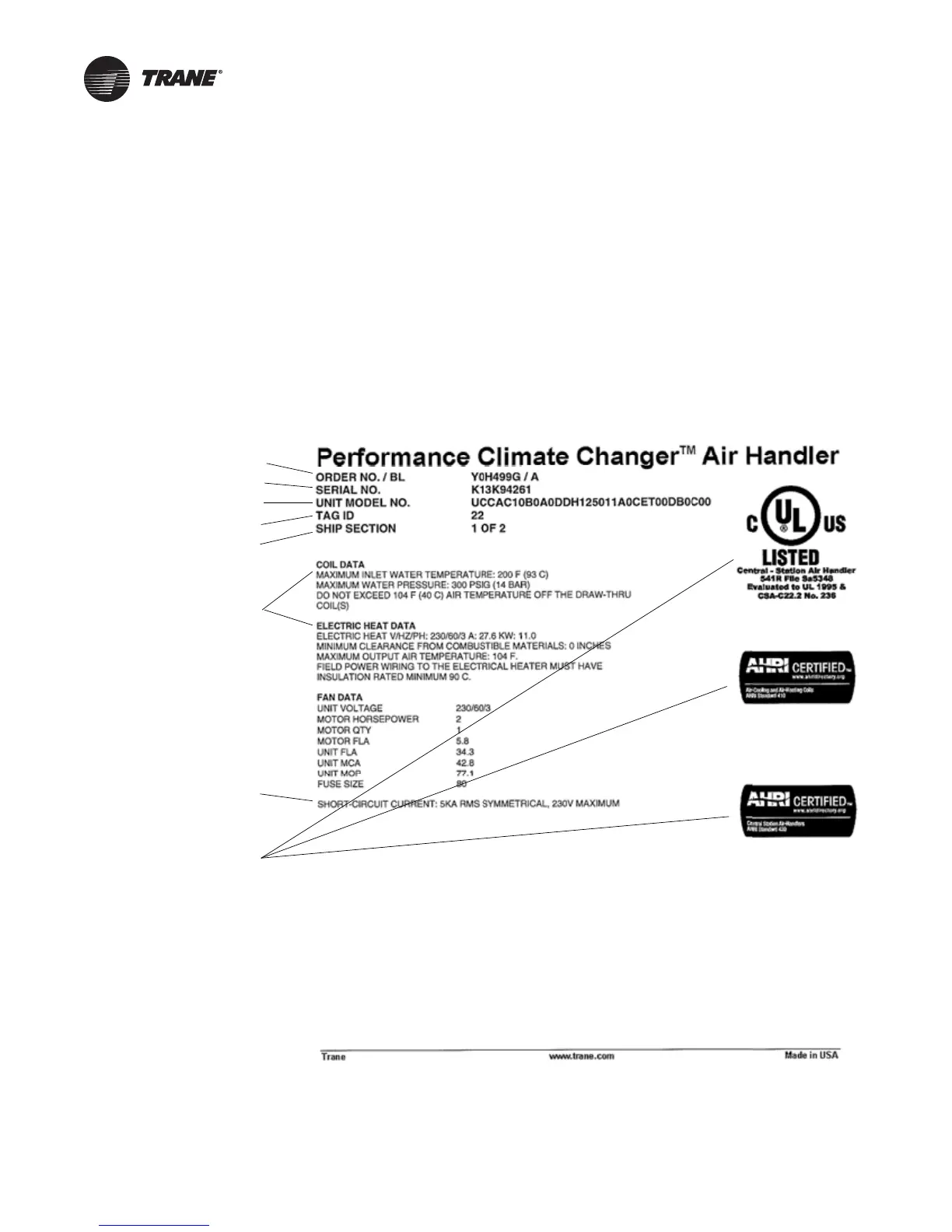

Figure 1. Performance air handler section nameplate
Agency listings and/or
agency certifications
Trane order number
Unit level serial number
Service model number
Unit tagging
Section location
Functional section type
Notes and additional
section information
