Installation of TR200 VFD and Components
4. Install the TR200 drive with adapter plate utilizing the TR1 mounting hardware.
NOTICE: The supplementary fuses contained in these kits are required
to adequately protect the TR200.
5. Remove the fuses, fuse block, and fuse guard from the kit.
6. For smaller VFD: using the adapter plate mounting holes and 4 kit-provided fasteners (SCRW
TROL HXW #8-32x .5), mount the fuse block on the adapter plate below the TR200 and install

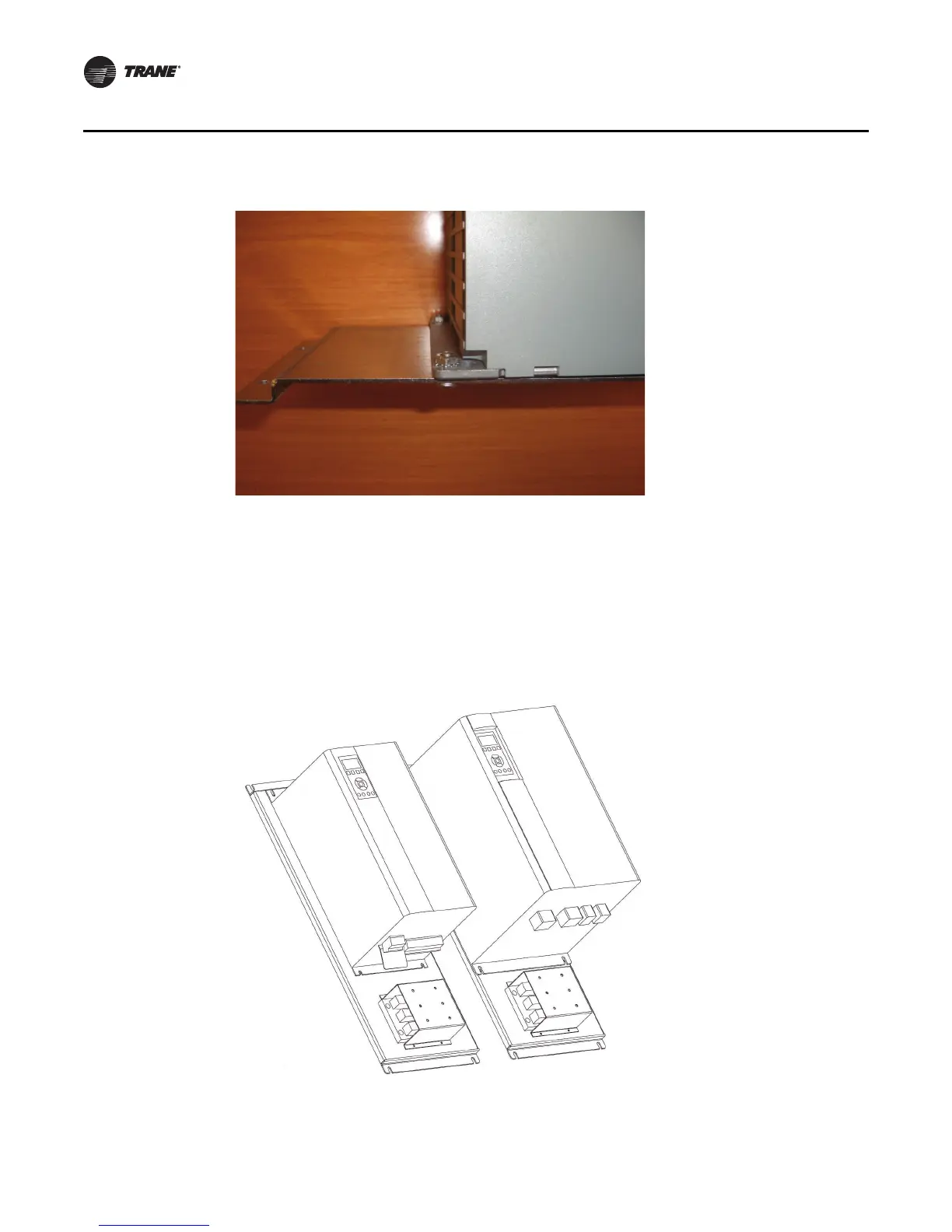

the 3 provided fuses into the fuse block. This figure shows typical fuse installation.
7. For large VFD: remove the fuse mounting bracket with 4 screws (TROL HXW #10-32x .5) and
remove 6 fuse mounting studs (.31-18x1.75) with 6 screws (MACH FLT) from the kit . Install the
