Trane XR203 - Stage Heat Pump with GAM5 B; Stage Heat Pump with GAF2-S

Pub. No. 18HD50D1-1A-EN 12/2018 Part No. 37-7768003 11
Trane XR203 Programmable Thermostat
NOTES:
1) Wire third party condensate overow
switches between Y of the thermostat
and Y1 of the airow control board
2) X2 is required to energize aux heat
during defrost

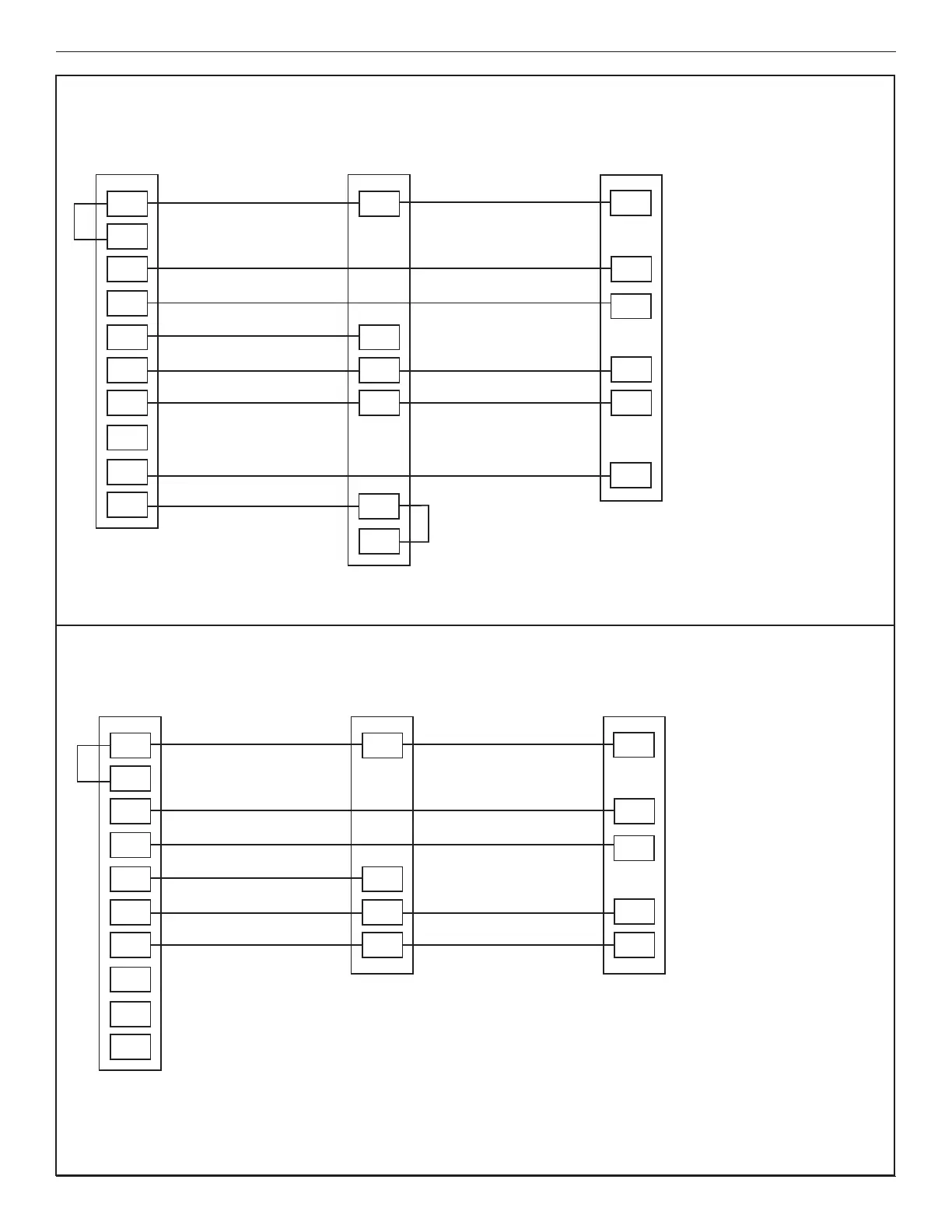

2 Stage Heat Pump with GAM5B
Indoor Unit Outdoor UnitThermostat
Rc
Rh
O/B
Y
G
W/E
C
L
Y2
W2
R
O
G
W1
B
W3
W2
W2
B
X2
Y/Y1
R
Y2
NOTES:
1) Wire third party condensate overow
switches between Y of the thermostat
and Y1 of the airow control board
2) X2 is required to energize aux heat
during defrost
Heat Pump with GAF2-S
Indoor Unit Outdoor UnitThermostat
Rc
Rh
O/B
Y
G
W/E
C
L
Y2
W2
R
O
G
W
B
B
X2
Y/Y1
R
