- 35 -

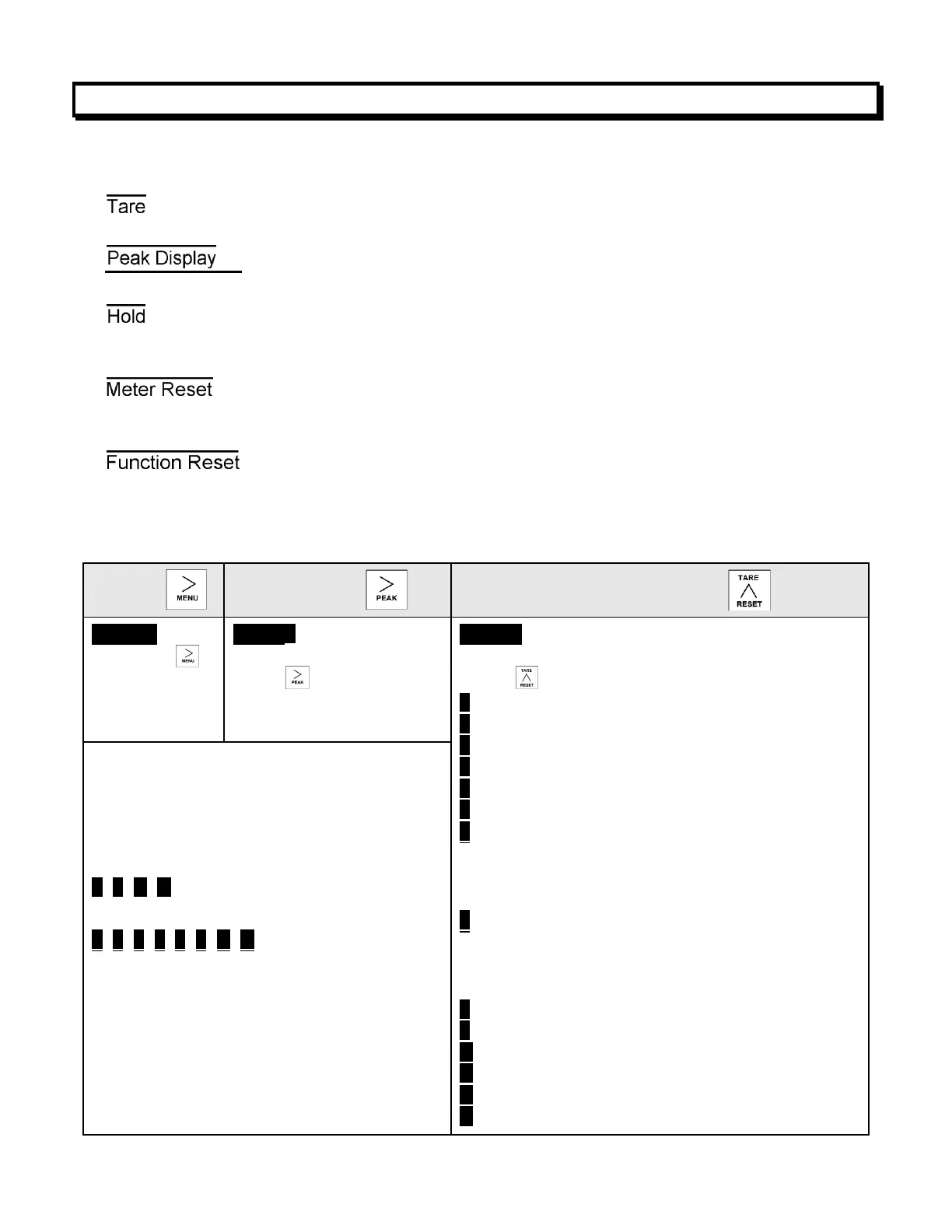

18. DIGITAL CONTROL INPUTS
18.1 FUNCTION OF DIGITAL INPUTS
Logical 0
Current display value is set to zero and is stored as offset value.
Logical 1
Displayed value equals signal input less tare value.
Valley Display
Logical 0
Peak or Valley value of input signal is displayed.
Logical 1
Current value of input signal is displayed.
Logical 0
Meter display and outputs are held at last reading prior to hold
going low.
Logical 1
Display and outputs are updated normally.
Logical 0
Microcomputer reads and resets meter to values stored in non-
volatile memory.
Logical 1
Meter display and outputs operate normally.
Logical 0
Microcomputer resets peak to current value, and resets alarms.
Logical 1
Meter display and outputs operate normally.
18.2 MENU SELECTIONS
MENU
KEY
DIGIT
SELECT KEY
VALUE SELECT KEY
_SEtuP
Press the
until SEtuP
(meter setup)
is displayed.
_0___0
12345
Press to select digit
5, which will flash.
_0___0
12345
Press to set value for flashing digit.
0 A = Reset B = Meter Hold
1 A = Function Reset B = Peak or Valley Disp.
2 A = Meter Hold B = Peak or Valley Disp.
3 A = Meter Hold B = Tare
4 A = Peak Display B = Tare
5 A = Tare B = Reset
6 A = 1, B = 1, decimal point 1= XXXXX
A = 0, B = 1, decimal point 1 = XXXX.X
A = 1, B = 0, decimal point 1 = XXX.XX
A = 0, B = 0, decimal point 1 = XX.XXX
7 A = 1, B = 1, decimal point 2 = XXXX.X
A = 0, B = 1, decimal point 2 = XXX.XX
A = 1, B = 0, decimal point 2 = XX.XXX
A = 0, B = 0, decimal point 2 = X.XXX.X
8 A = Function Reset B = Display Blank
9 A = Hold B = Display Blank
A A = Peak or Valley B = Display Blank
B A = Tare B = Display Blank
C A = Valley Display B = Peak Display
D A = Tare B = Tare Reset
Both inputs A and B set to 1 for selections
2, 4, A, C = Function Reset
Both inputs A and B set to 1 for selections
0, 1, 3, 5, 8, 9, B, D = Meter Reset
External decimal DP1 & DP2 control the
decimal point positions and override the
decimal point selection in SEtuP.
