7. FRONT PANEL INDICATORS AND SETUP KEYS

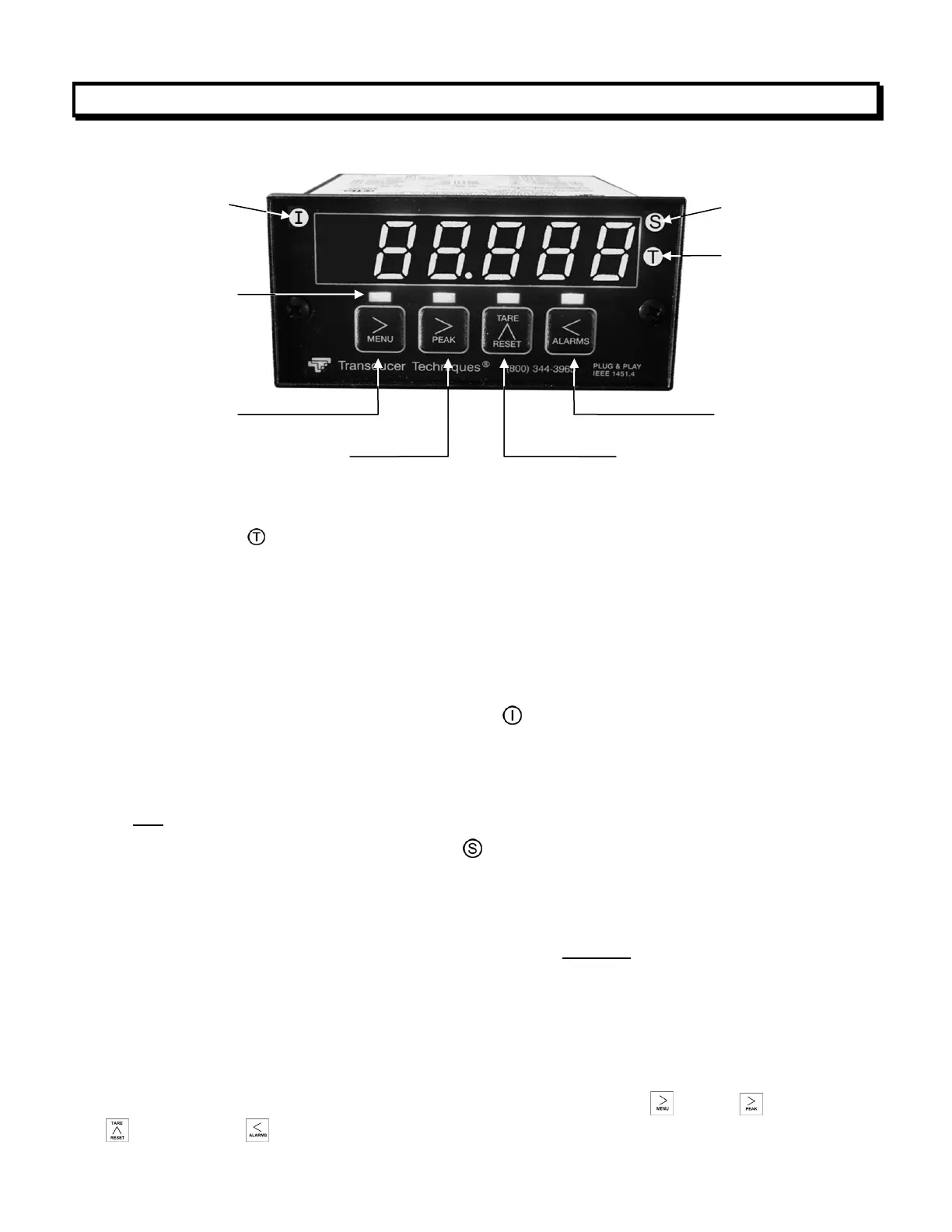

Meter Front Panel
TEDS INDICATOR
On steady when DPM-3 has detected a TEDS sensor, has read the EEPROM, and has
performed an automatic meter configuration.
CALIBRATION INDICATORS
The following two indicators are active when the Calibration indicators are enabled by the
tArE menu item:
1. INSTRUMENT CALIBRATION INDICATOR
Flashing indicates either that the instrument is due for calibration or will be due in less
than 30 days. On steady when instrument is past due for calibration. Stops flashing when
acknowledged from the front panel by selecting the CALrt menu item and changing the
first digit from a 1 to a 0.
2. SENSOR CALIBRATION INDICATOR
Active when a TEDS Plug-and-Play Sensor is detected in Plug-and-Play mode, other-
wise stays dark. Flashing indicates either that the sensor is due for calibration or will be
due in less than 30 days. Stops flashing when acknowledged from the front panel by
selecting the CALrt menu item and changing the second digit from a 1 to a 0. Once
acknowledged, it is on steady when the TEDS Plug-and-Play sensor is past due for
calibration.
FRONT PANEL KEYS
There are four front panel keys, which change function for the Run Mode and Menu Mode,
effectively becoming eight keys. The keys are labeled with alphanumeric captions (MENU,
PEAK, RESET, ALARMS) for the Run Mode and with symbols ( Menu, Digit select,
Value select, Reverse menu) for the Menu Mode.
Alarms key
(Reverse menu)
Alarms status
indicators
1 through 4
Menu key
Peak display key
(Digit select)
Reset/Tare key
(Value select)
Sensor Calibration
indicator
Instrument
Calibration
indicator
(Reverse
menu)
TEDS indicator
