Transducer Techniques DPM-3 User Manual

- 7 -

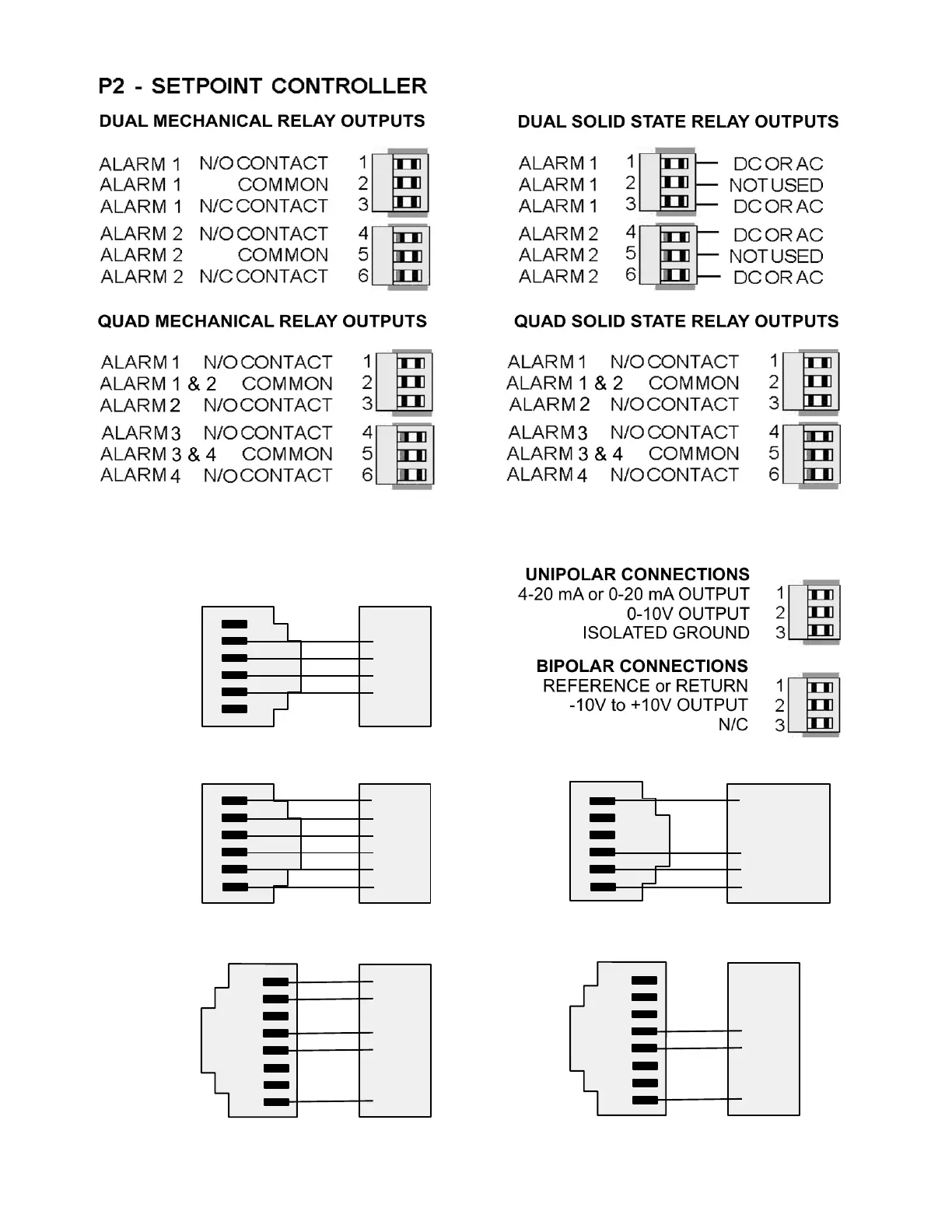

P3 - SERIAL COMMUNICATIONS P4 - ANALOG OUTPUT
6
5
4
3
2
1
N/C
ISO GND
RX
TX
RTS
N/C
GND
TX
RX
RTS
RS232 INTERFACE Computer
6
5
4
3
2
1
ISO GND
BRX
ARX
ATX
BTX
ISO GND
GND
BTX
ATX
ARX
ARX
GND
RS485 INTERFACE - FULL DUPLEX
6
5
4
3
2
1
ISO GND
ATX / ARX
BTX / BRX
ISO GND
GND
ATX / ARX
BTX / BRX
GND
RS485 INTERFACE - HALF DUPLEX
1
2
3
4
5
6
7
8
(A') RXD0
(B') RXD1
(B) TXD1
(A) TXD0
ISO GND
TXD0
TXD1
RXD1
RXD0
GND
RS485-MODBUS - FULL DUPLEX RS485-MODBUS - HALF DUPLEX
1
2
3
4
5
6
7
8
(B) TX/RXD1
(A) TX/RXD0
ISO GND
D1
D0
GND
