Travis Industries DVS GSR Insert - Clearances; Mantel Clearances

10 Installation (for qualified installers only)
© Travis Industries 4090812 100-01232_001

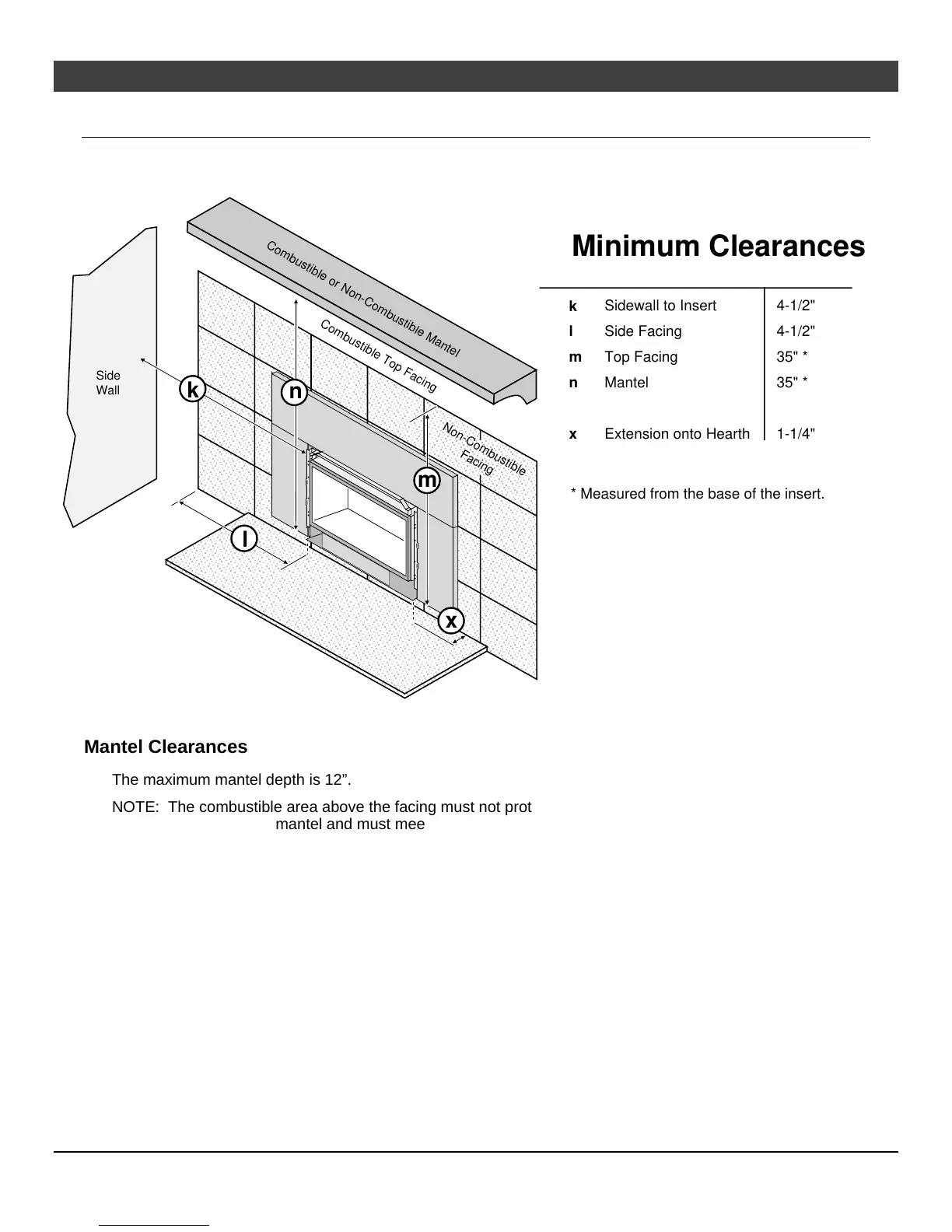

Clearances
Due to the high temperature of the heater, it should be located out of traffic and away from furniture and
draperies.





























Side
Wall
Combustible or Non-Combustible Mantel
Combustible Top Facing




Non-Combustible
Facing
Minimum Clearances
k
l
m
n
x
Sidewall to Insert
Side Facing
Top Facing
Mantel
Extension onto Hearth
4-1/2"
4-1/2"
35" *
35" *
1-1/4"
l
k
x
n
m
* Measured from the base of the insert.
Mantel Clearances
The maximum mantel depth is 12”.
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it
does, it is considered a mantel and must meet the mantel requirements listed in this manual.
