48 Optional Equipment (for qualified installers only)
© Travis Industries 4090812 100-01232_001

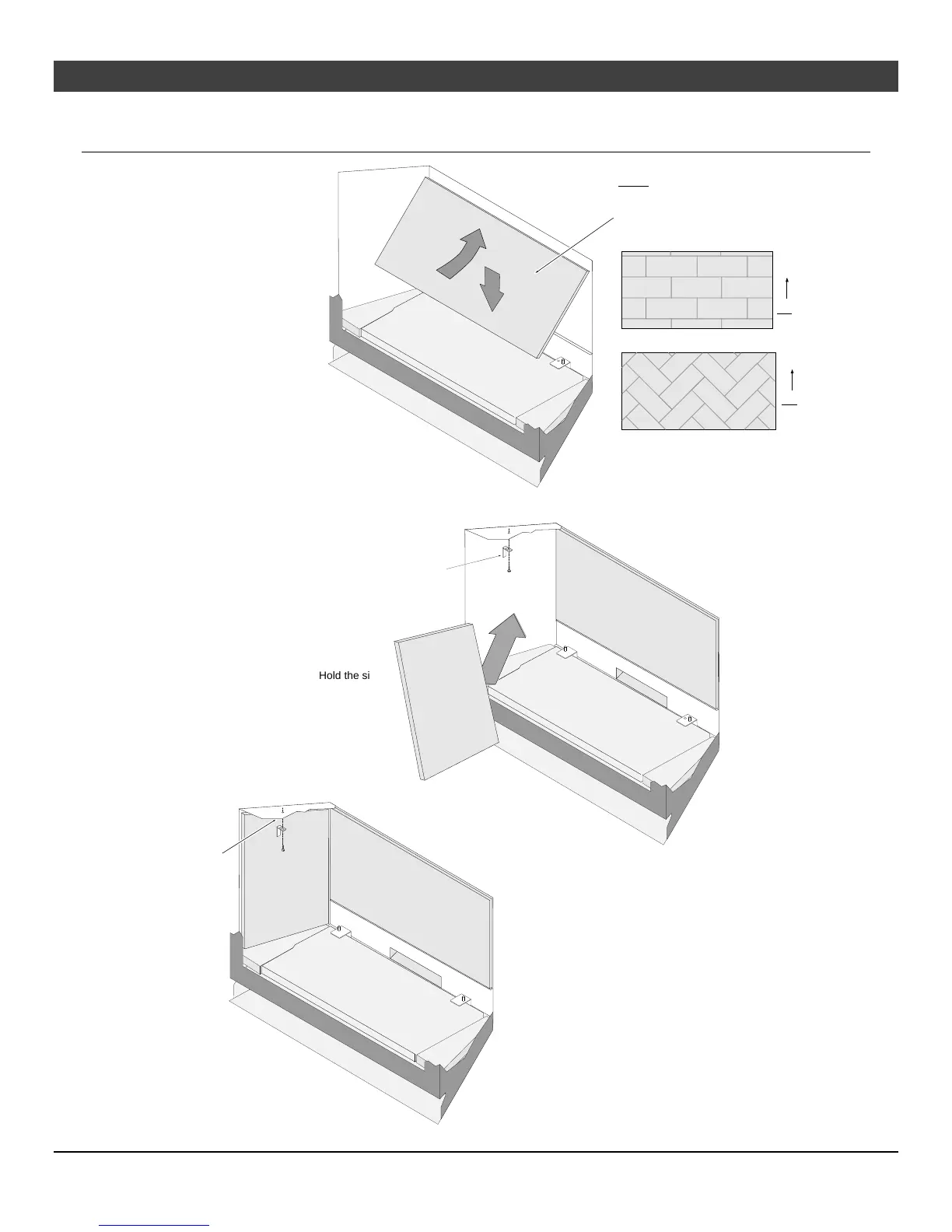

Firebacks
Slide the top of the rear
fireback behind the baffle on
top of the firebox and pivot it
back into place. It rests on
the shelf at the back of the
firebox.
Hold the side
firebacks at a
slight angle and
place them into
position (both
sides).
Remove this clip attached to
the firebox ceiling (both sides).
Replace the clip
to secure the
side fireback
(both sides).
NOTE: The rear fireback must be
installed as shown below for the
brick pattern to line up with the
side firebacks.
UP
UP
