Travis Industries DVS GSR Insert - Wiring Diagram

Maintenance 41
© Travis Industries 4090812 100-01232_001

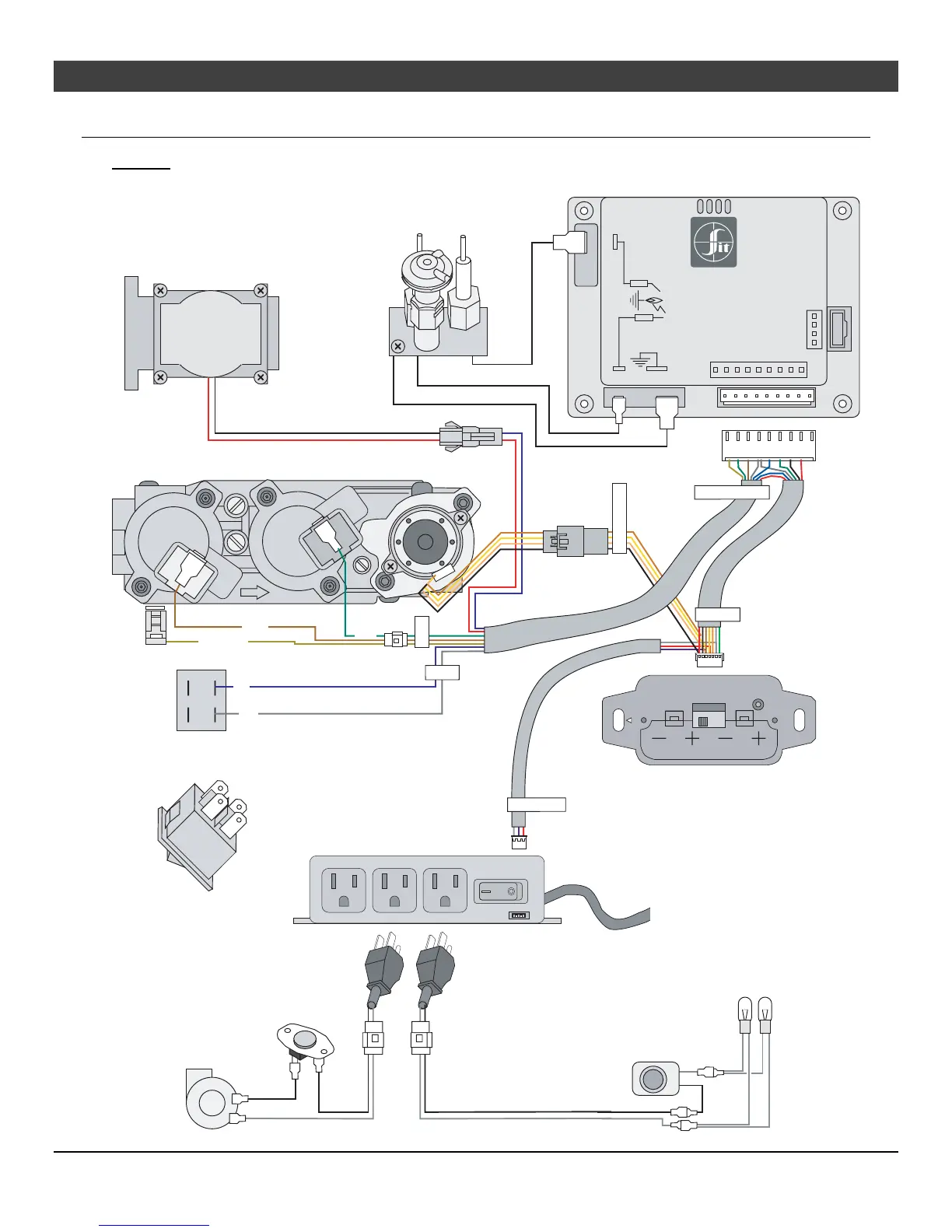

Wiring Diagram
Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause
improper and dangerous operation.
CN4
CN3
PILOT
SENSOR
SPARK ROD
DIGITAL
FIREPLACE
BURNER
CONTROL
CN2
GROUND
VALVE COMMAND POWER
CN1
DIAGNOSTIC
CN0
CONTINUOUS
PILOT
White
Blue
Yellow / Green
Orange
VALVE
IPI / CPI
TOP
(4) AA Batteries
Remote
Receiver
Fan Controller
110V OUT FAN AUX OUT COM
POWER
STEPPER MOTOR
BURNER CONTROL
RECEIVER
FAN CONTROL
Comfort Control
Valve
Green
Accent Light
Rheostat
Accent
Light (s)
120 VAC
Power In
Pilot
Sensor
Spark Rod
Pilot
Ground
Optional
Blower(s)
Thermodisk
INTERMITTENT
PILOT
