Glass Frame Removal and Installation (continued)
The glass latch can come loose from the glass frame. This occurs when the latch is turned 1/8 turn when
disengaged from the unit. Follow the directions below to re-install the latch if it comes loose.
Glass

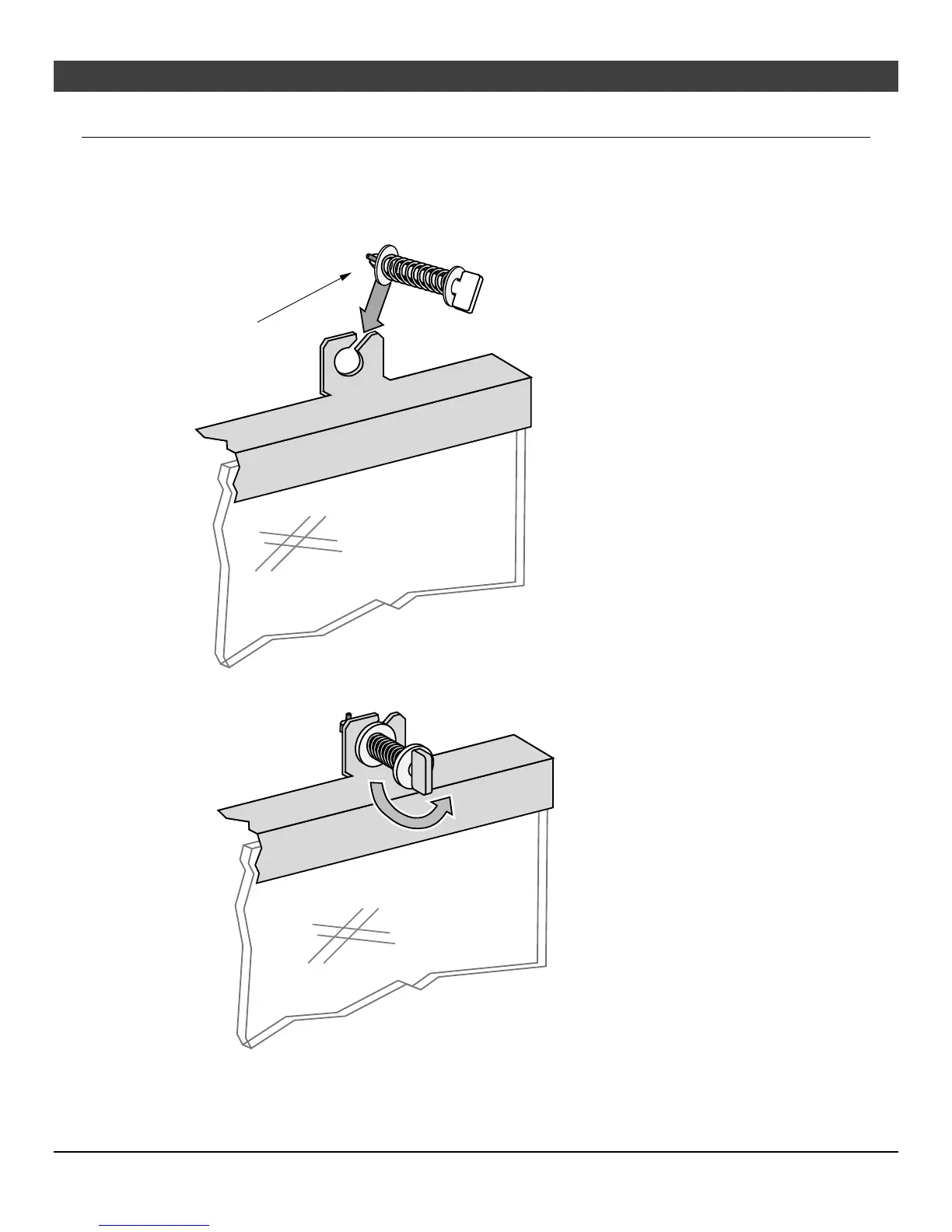

Hold the latch at an angle and
insert it into the slot on the
glass frame. Note how the
washer fits in front of the flange
on the glass frame. You will
need to push slightly to get the
latch to insert.
Once fully inserted, turn
the latch until it is is level.
Latch
