46 Optional Equipment (for qualified installers only)
© Travis Industries 4090812 100-01232_001

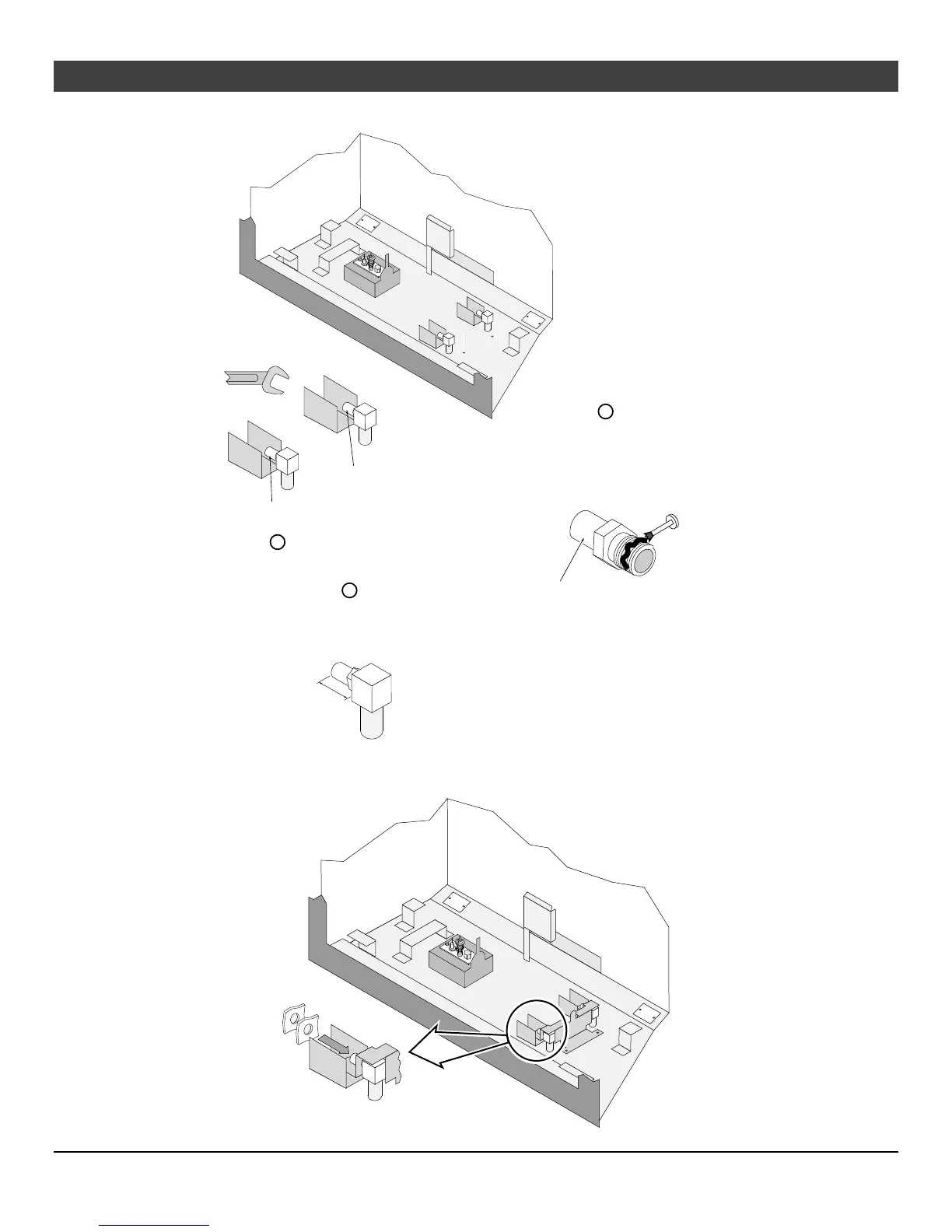

4 Follow the directions below to replace the orifices.
Screw each LP orifice in so the
orifice protrudes 15/16" (24mm)
(indicating full insertion).
c
Look here for the orifice identification
Apply thread sealant to the LP
orifices prior to installation. Use
the chart below to identify the
correct orifices.
Front
Rear
NG
#50
#47
LP
#56
#56
b
1/2" Wrench
Use a 1/2" open end wrench
to unscrew the two orifices.
Front Burner Orifice
a
Rear Burner Orifice
15/16"
24mm
5 Replace the manifold cover. Place two orifice gaskets (included with appliance) on the front orifice
(see illustration below).
To Next Page
