Carriage wiper seals and bushings (continued)

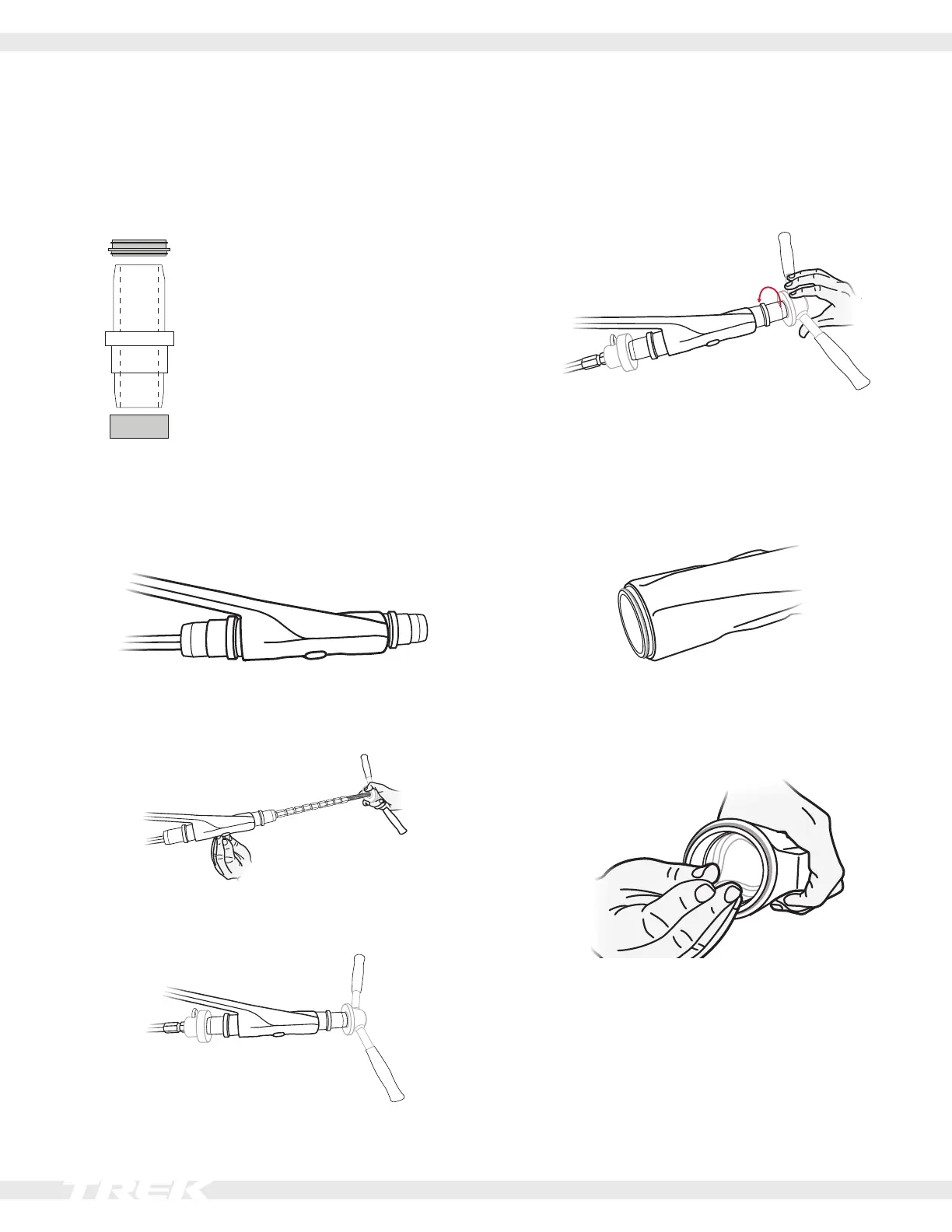

Replace the wiper seals
1. Wipe the seal surface inside the carriage to remove
debris.
2. Loadanewsealontoeachsealinstallationtool.
Seal
Usethissideofthetoolforpressingin
seals.
Bushing
Usethissideofthetoolforpressingin
bushings.
3. Put one tool with one seal into the front of the car-
riage, and the other tool with the other seal into the
rearofthecarriage.
4. Insert the upper half of the headset press into the
frontofthecarriage.
5. Insert the lower half of the headset press into the
rearendofthecarriageandlockitintoplace.
6. Spin the headset press until it is snug against the
sealtool.Checkforthecorrectalignmentofthe
press,toolsandseals.Rotatethepresstopushthe
sealsintoplace.
7. Tightenthepressuntilyoufeelresistance.Onceyou
feelresistance,removethepressandtools.
8. Inspect the seals to verify that there is no gap be-
tweenthesealandthecarriage.
9. Soakthefoamringin10wtforkbathoil.
10. Installthefoamringintothefrontofthecarriage.
