TREND IQ4E - Mounting the IQ4 E on DIN Rail

IQ4E/.. Installation Instructions - Mounting TG201338 Issue 4, 19-Jan-2016. Applies to v3.33. 3
Installation Instructions - Mounting IQ4E/..
3

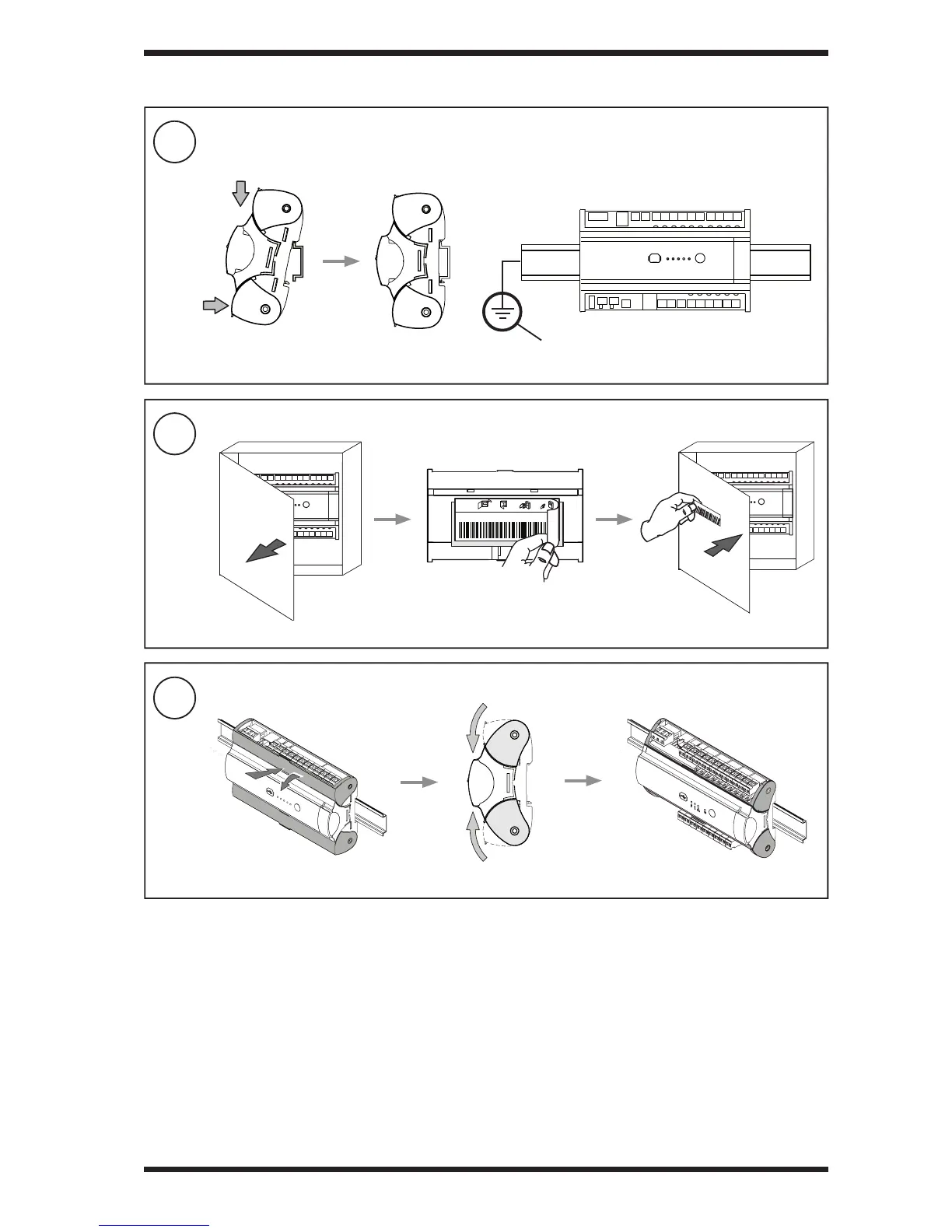

Mount Unit on DIN Rail
4
Attach Large Barcode Label to Panel
5
Open Rotating Covers
3 INSTALLATION (continued)
IQECO: Q3 B_X7 3080031
SERIAL No.
IQ4e Q3B_X73080031
TREND IQ41x
23
1
4
Note: To remove from DIN rail see Section 4, page 11.
DIN rail must be earthed (grounded)
1
2
