IQ4E/.. Installation Instructions - Mounting TG201338 Issue 4, 19-Jan-2016. Applies to v3.33. 9
Installation Instructions - Mounting IQ4E/..
14

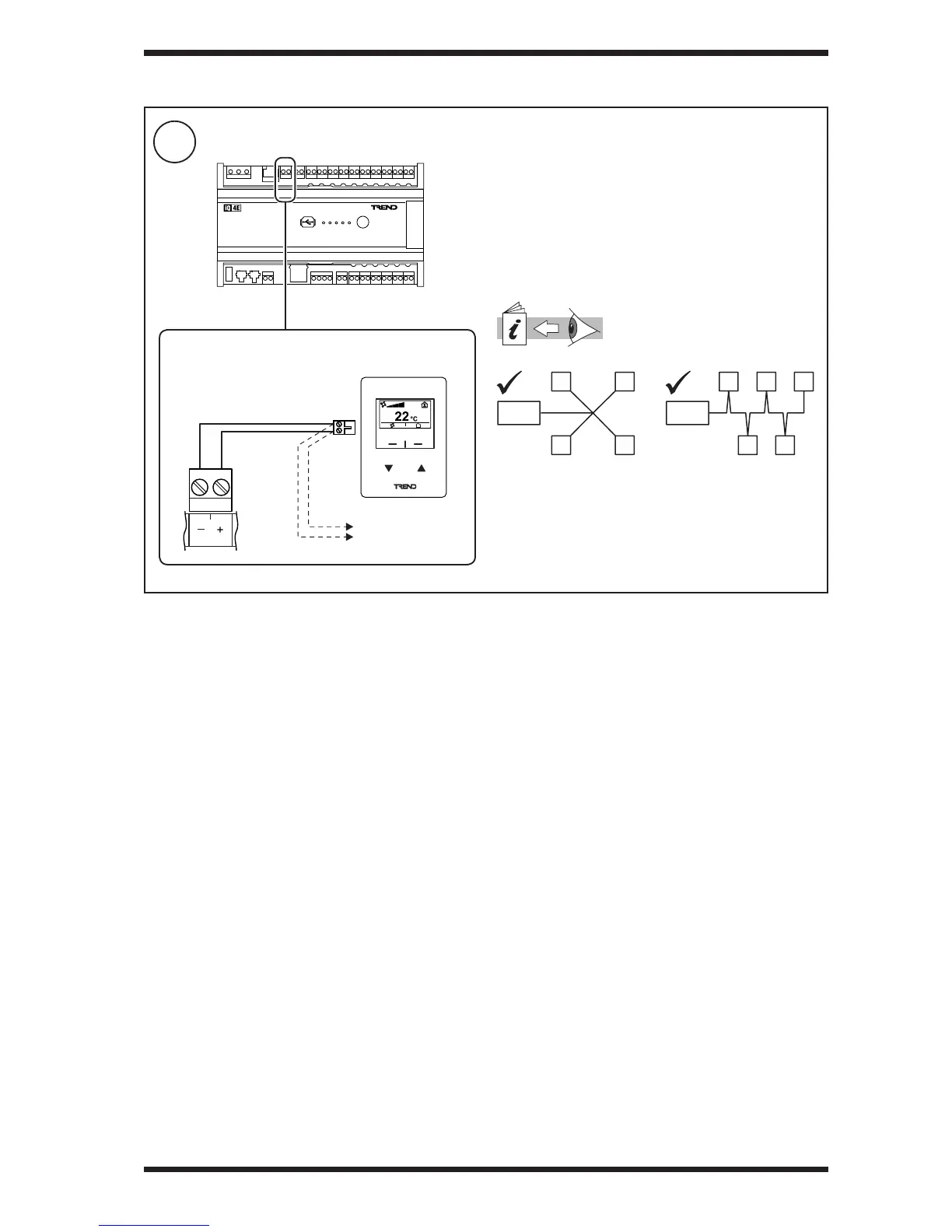

Connect Wallbus (if required)
e.g RD-WMB
3 INSTALLATION (continued)
Terminal size: 0.14 to 2.5 mm
2
(22 to 12 AWG).
Terminal screw torque: 0.45 to 0.62 Nm (4 to 5.5 lb.in).
Cable type: Unscreened twisted pair.
Maximum cable length: 60 m (200 ft) in total, used to connect
all wallbus devices.
Number of Devices: up to 14 (subject to power loading -
refer to device documentation).
Example wiring
Polarity independent
to additional
wallbus devices
IQ4 Conguration Manual
(TE201263)
IQ4E IQ4E
