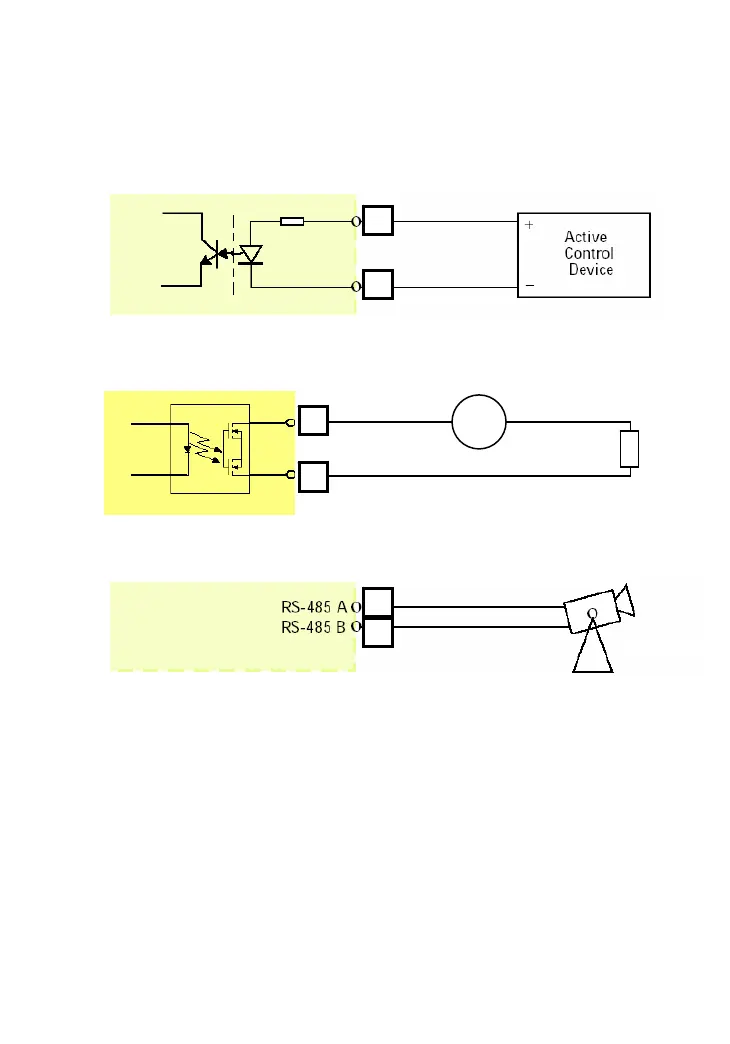

Interface Schematic
1. Input
device (active control device) has independent
power supply.
2. Output device (load) is driven by external power supply.
3. RS485 Interface
3
4
1
2
5
6
AC/
DC
Load
PTZ Camera
