3.6 Plumbing Connection
IMPORTANT!
The connection of the boiler to the plumbing system must
be carried out ONLY by specialised personnel who are
capable of carrying out installation properly, in compliance
with current standards in the country of installation.
If installation of the boiler will involve interaction with
another, pre-existing system complete with heating
equipment (gas boiler, methane boiler, fuel oil boiler, etc.),
it is even more advisable to call in qualified personnel, who
subsequently will be responsible for conformity of the
system with current applicable law.
T R Engineering Ltd will not be held responsible for damage
to persons or things in the event of failed or incorrect
operation if the aforementioned warnings are not complied
with.
For connection of the plumbing system to the appliance, the
user should refer to chapter 4, INSTALLATION AND
ASSEMBLY; specifically, paragraph 4.5, CONNECTION TO
PLUMBING SYSTEM.
Installation and Assembly
Unpacking
The Greenflame 15kW pellet boiler will come packaged on a
single pallet. The flue will be packaged separately.
The materials which make up the packaging are 100%
recyclable. Their storage or recycling is therefore the
responsibility of the final user, in compliance with local
regulations. Do not store the boiler without its packaging.
Remove the nylon strapping, cardboard packaging and
bubble wrap and recycle in the appropriate manner.
When unpacking the boiler use the checklist below to ensure
that all the required components to complete the kit have
been supplied. In the unlikely event of an omission you must
notify the manufacturer within 48 hrs of delivery. The
manufacturer reserves the right to charge for items deemed
lost after 48 hrs.
*The user manual pack includes a user manual, quick step
user instructions, commissioning report, keys for lockable
doors and a heat proof glove.
Preparing the Base
Careful planning at an early stage will greatly help the
installation process and make sure that all the required
clearances are adhered to for servicing and that any
potential issues with the routing of the flue can be resolved.
The Greenflame pellet boiler should be positioned on a
concrete plinth at least 50mm high and should project a
minimum of 100mm beyond the sides and the rear of the
appliance and at least 600mm to the front. The plinth must
be capable of supporting the weight of the appliance when
full with fuel and the plumbing system has been filled with
water.

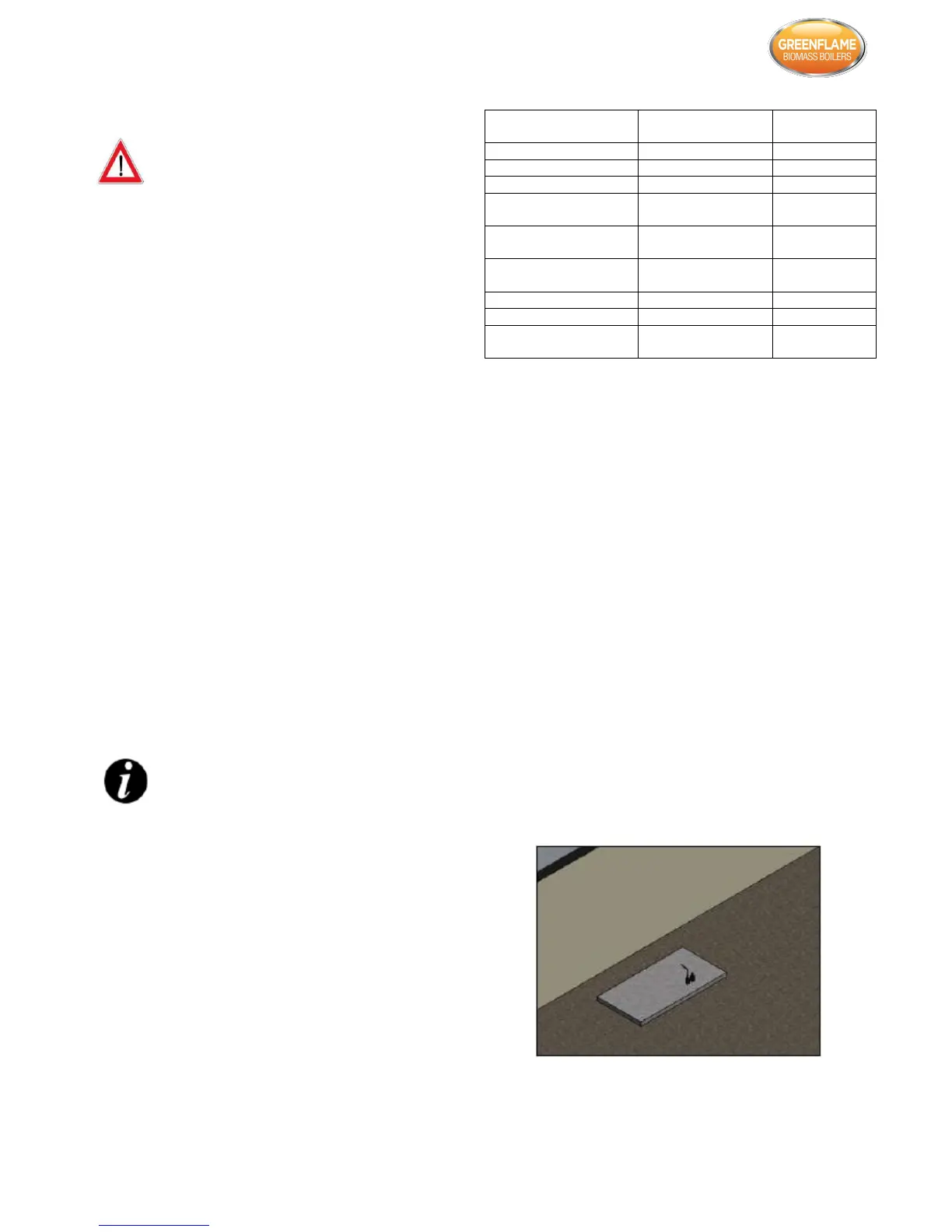

Use the template below for constructing the plinth and for
positioning the flow and return pipe work and electrical
supply.
Refer to service and access clearances around the appliance
on page 6.
