Mounting the Cabinet Installation

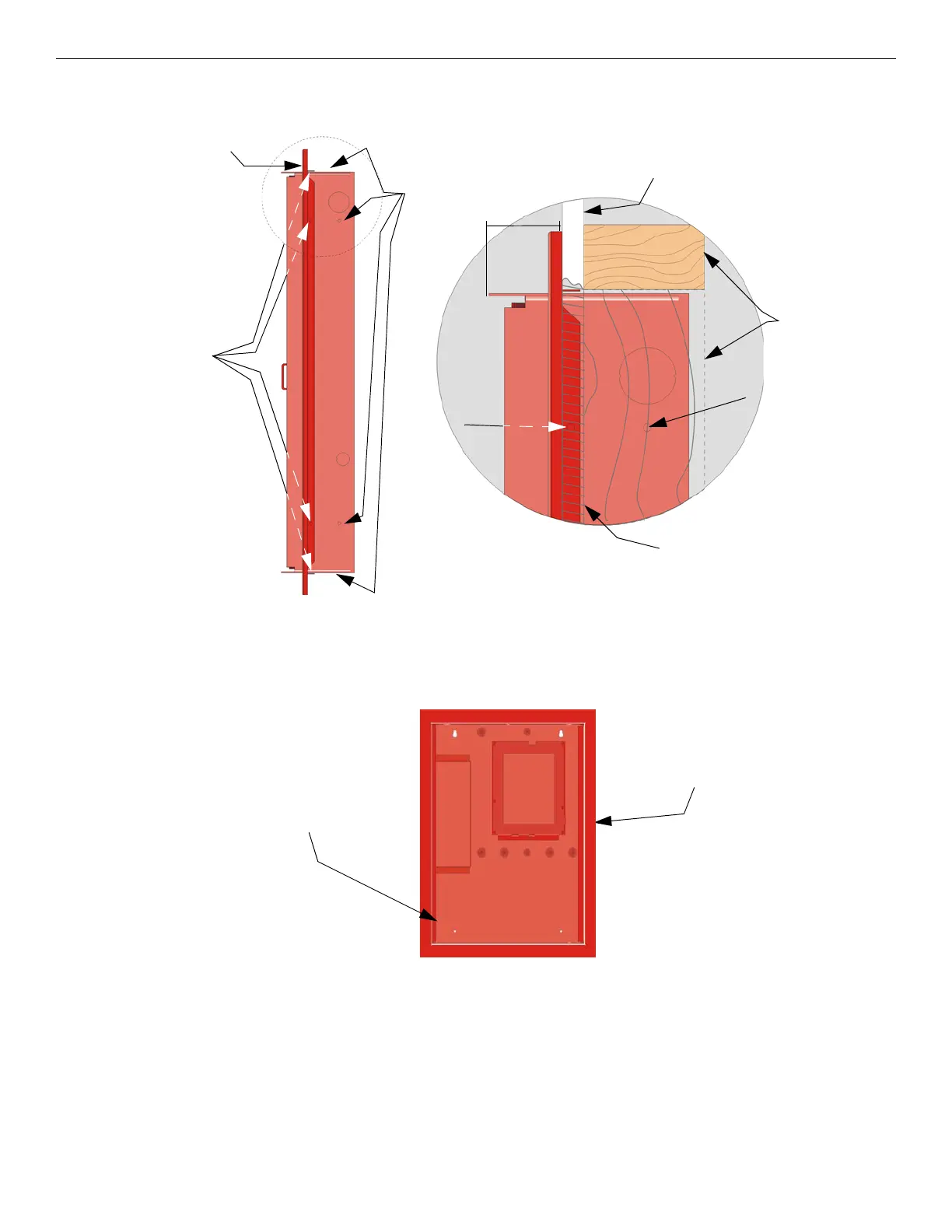

Figure 3.2 shows the trim ring locations and dimensions.
Figure 3.2 Detail of Flush Mounting with Trim Ring
4. Place the trim ring around the perimeter of the cabinet. See Figure 3.3.
.
Figure 3.3 Trim Ring Around cabinet
5. Use the self-tapping sheet metal screws to secure the trim ring from the inside of the cabinet.
6. Re-attach the cabinet door assembly.
Side View of Cabinet
Sheet Rock
Sheet Rock
Mounting
Studs
Cabinet
Mounting Hole
Trim Ring
Mounting
Hole
Cabinet
Mounting Hole
and Trim Ring
Trim Ring
Trim Ring
Mounting
Hole
1.5 to 1.75”
(3.8 to 4.4cm)
