Seeker D User’s Guide
Document Num., Rev. 4May 2018 Page 27

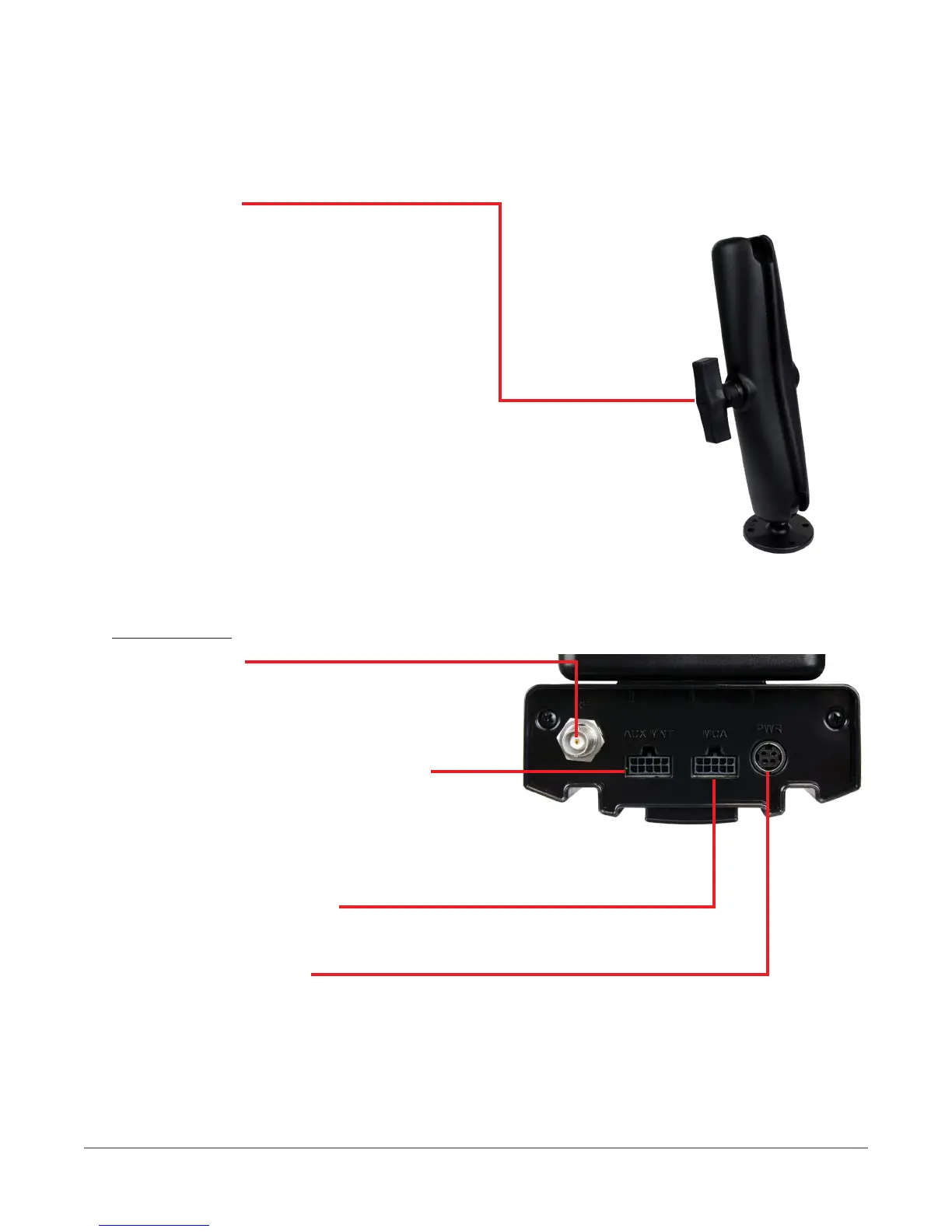

Rear View
Antenna input
This is used to connect the included
antenna diplexer for use with low and high
band vehicle mounted antennas.
Auxilliary Mobile Mount connection
This is used to daisy chain an existing
Seeker Mobile Mount to the Seeker D
Mobile Mount in order to share a single
Seeker MCA III.
MCA III serial connection
This is used to connect the Seeker D Mobile Mount to the Seeker MCA III.
DC power cable input
This is used to connect the included mobile mount power cable.
Mounting arm
This is used to secure the Mobile Mount
to the vehicle. Use the knob to tighten and
loosen the arm and then adjust the angle
of the arm to achieve the proper mounting
angle. The arm should be securely fastened
to the vehicle with four screws or bolts.
