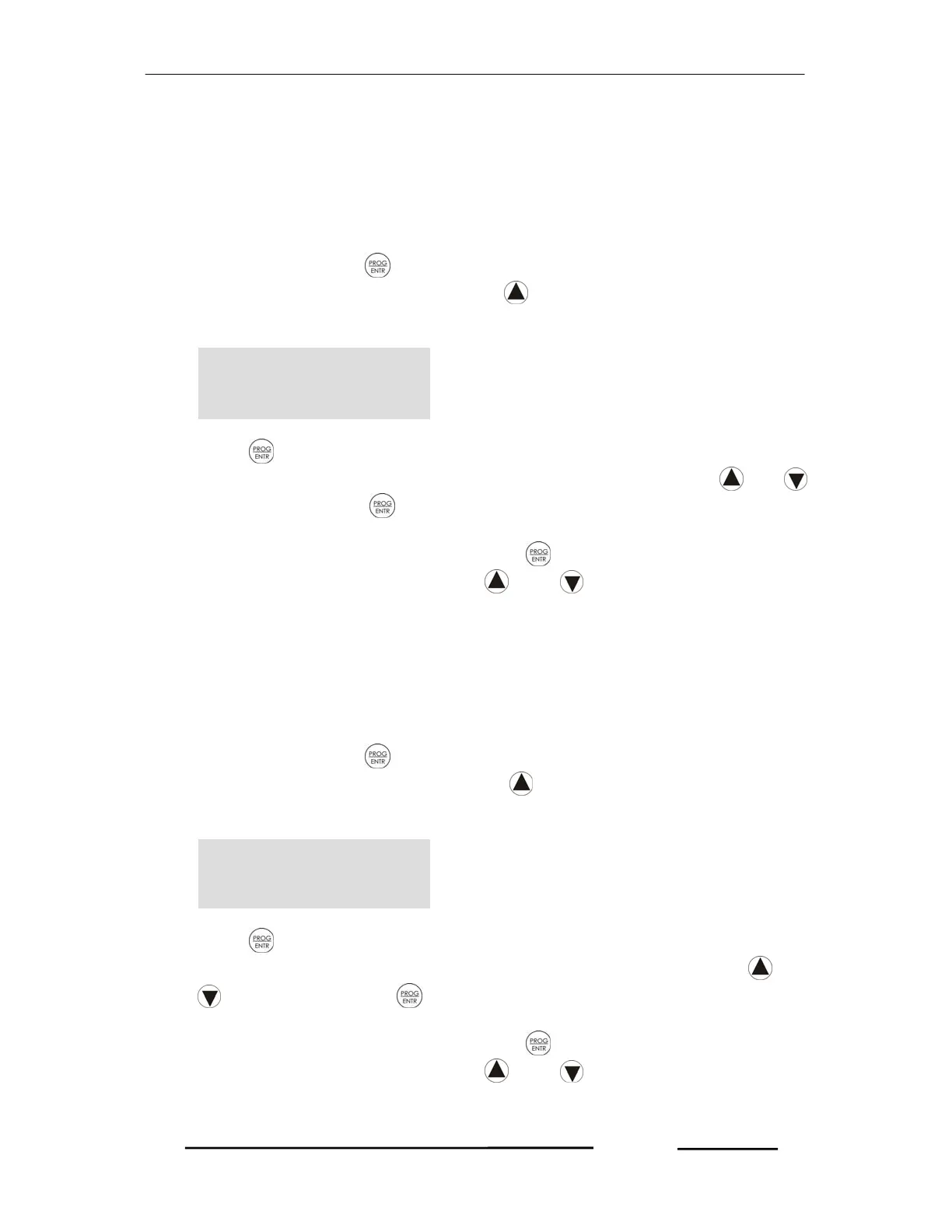

NEWTON+ – Operational Manual
TRINITY
[12]
2. Setting the Main CT Ratio
In order to give actual current values in this unit, the main CT Ratio should be set
accordingly. The CT Ratio can be set from 5A to 5000A.
To set the Main CT Ratio, proceed the following instructions:
1. In Run Mode, press
key for about 4 to 5 seconds and then the unit will
enter into Programming Mode. Press
key to receive the Main CT Ratio
such as shown below.
2. Press
key. Immediately, P starts blinking which shows that the parameter
can now be changed. Set the desired Main CT Ratio by pressing
and
keys and then, press
key to confirm the parameter setting.
3. In case, your setting is completed, press
key for about 4 to 5 seconds to
return into Run Mode. Or press
and keys to specify for other
parameters such as above instructions.
3. Setting the Capacitor CT Ratio
For the application of VAR mode of Control Action, the Capacitor CT Ratio in
between the primary and secondary current should be set from 5 A to 2000 A.
To set Capacitor CT Ratio, proceed the following instructions:
1. In Run Mode, press
key for about 4 to 5 seconds and then the unit will
enter into Programming Mode. Press
key to receive the Capacitor CT
Ratio such as shown below.
2. Press
key. Immediately, P starts blinking which shows that the parameter
can now be changed. Set the desired Capacitor CT Ratio by pressing
and
keys and then, press key to confirm the parameter setting.
3. In case, your setting is completed, press
key for about 4 to 5 seconds to
return into Run Mode. Or press
and keys to specify for other
parameters such as above instructions.
CTR_CAP=50
CTR_MAIN=500
