Trinity Newton+ User Manual

NEWTON+ – Operational Manual
TRINITY
[5]
The Main Features Available in This System
 Full functional 16 x 2 backlight LCD
 Selectable Main CT Ratio and Capacitor CT Ratio
 Automatic Power Factor Control through PF, Binary and VAR Action
 Programmable target PF setting
 Programmable Time Delay for step switching
 System KVAR value
 Selectable Capacitor Bank Stages and Autosense of its bank sizes
 Selectable for Run Mode display Scroll and Unscroll
 Measurement of System Active Power (KW).

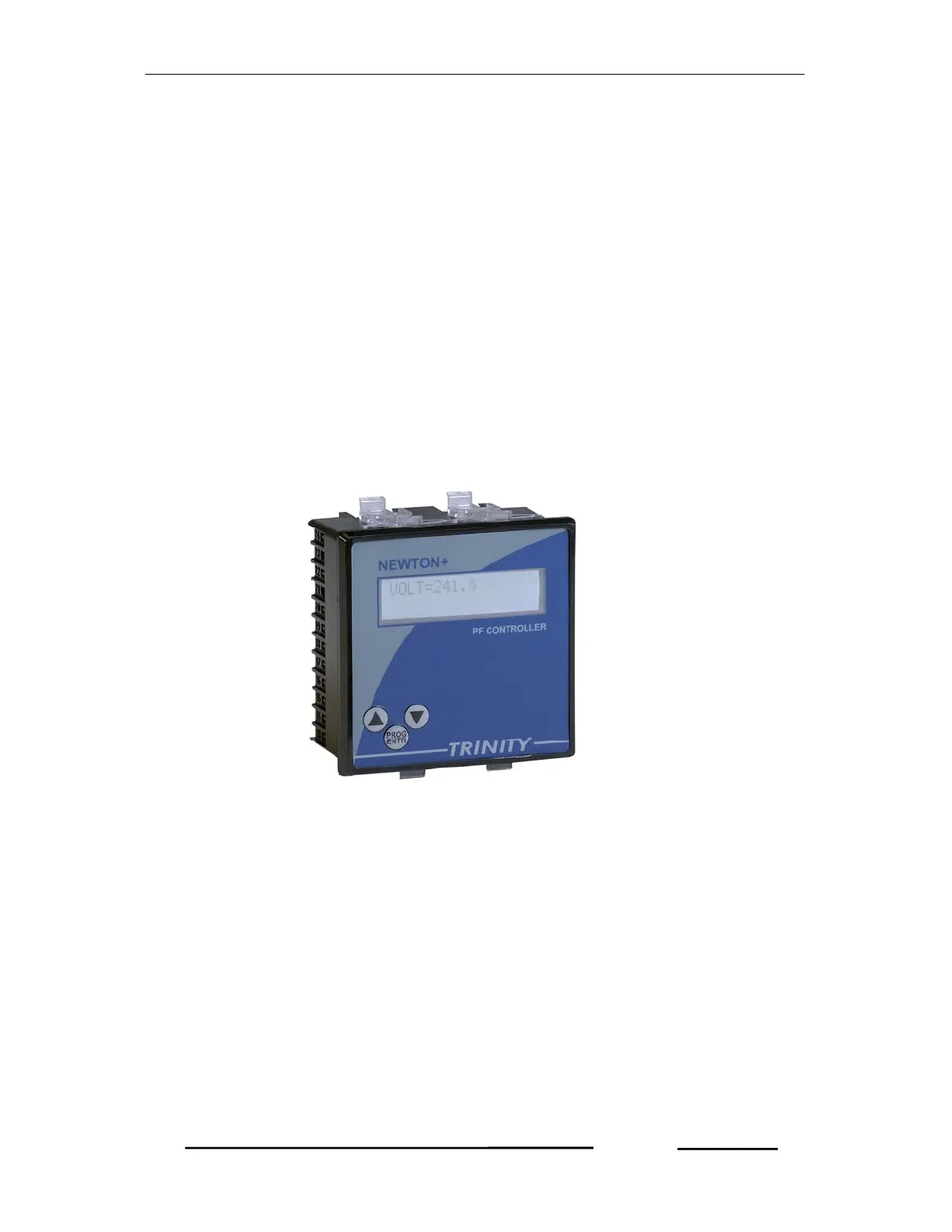

NEWTON+ 16X2 LC DISPLAY

Trinity Newton+ Specifications

General

Function	General Purpose
Mechanical Life	10, 000, 000 operations
Ambient Temperature	-40°C to +70°C
Contact Configuration	DPDT
Contact Rating	10A
Coil Voltage	5VDC, 12VDC, 24VDC, 48VDC
Electrical Life	100, 000 operations
Insulation Resistance	1000 MΩ (min) at 500VDC
Vibration Resistance	10-55Hz, 1.5mm
