CAR ALARM AND REMOTE START INSTALLATION GUIDE

Copyrght 2002-2004 Triple S Customs 44

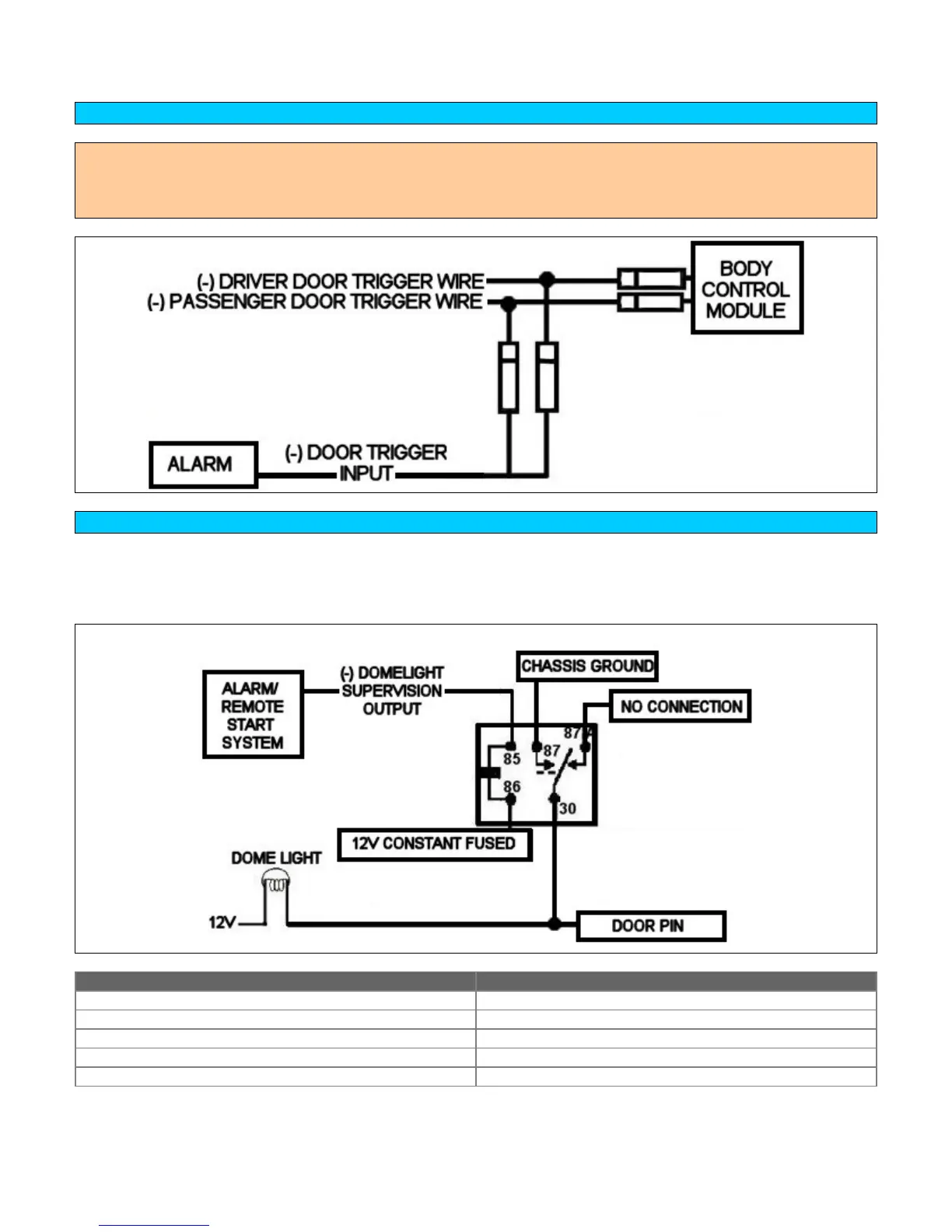

WIRING DIODES FOR VEHICLES WITH MORE THAN ONE DOOR TRIGGER WIRE

NOTE: 97-Up F-Series Light Duty Pickups have a separate door trigger wire for each door. The BLACK/YELLOW

catches the driver’s door and the BLACK/PINK catches the passenger’s door. Use both wires and diode isolate

each. The wires are found in there respective door harnesses. Both wires may also be found at the GEM module

located above the fuse box.

WIRING A RELAY FOR DOMELIGHT SUPERVISION (NEGATIVE DOOR TRIGGER)

• Most alarm and remote start systems include the option of dome light supervision. Dome light supervision will

turn on the vehicle’s dome light for a set time when the system unlocks/disarms the vehicle. This allows the

user to check the interior of the vehicle for an intruder before entering.

For dome light supervision connect the dome light supervision output as shown:

PIN CONNECTION

85 (-) DOMELIGHT SUPERVISION OUTPUT

86 12V CONSTANT FUSED

87 CHASSIS GROUND

87A NO CONNECTION

30 DOOR TRIGGER WIRE IN VEHICLE
