CAR ALARM AND REMOTE START INSTALLATION GUIDE
Copyrght 2002-2004 Triple S Customs 46
TESTING NEGATIVE TRIGGER DOORLOCKS
• Some models with power locks use a negative (-) triggered door lock system.
To find the door lock wire with your multi-meter:
1. Set to DC voltage
2. Attach the (-) probe to chassis ground
3. Probe the wire you suspect of being the door lock wire
4. When the switch is at rest, the meter should read 12V
5. Lock the door with the switch. The meter should read 0V or close to it. If it does, that is the correct wire.
To find the door unlock wire with your multi-meter:
1. Set to DC voltage
2. Attach the (-) probe to chassis ground
3. Probe the wire you suspect of being the door unlock wire
4. When the switch is at rest, the meter should read 12V
5. Unlock the door with the switch. The meter should read 0V or close to it. If it does, that is the correct wire.

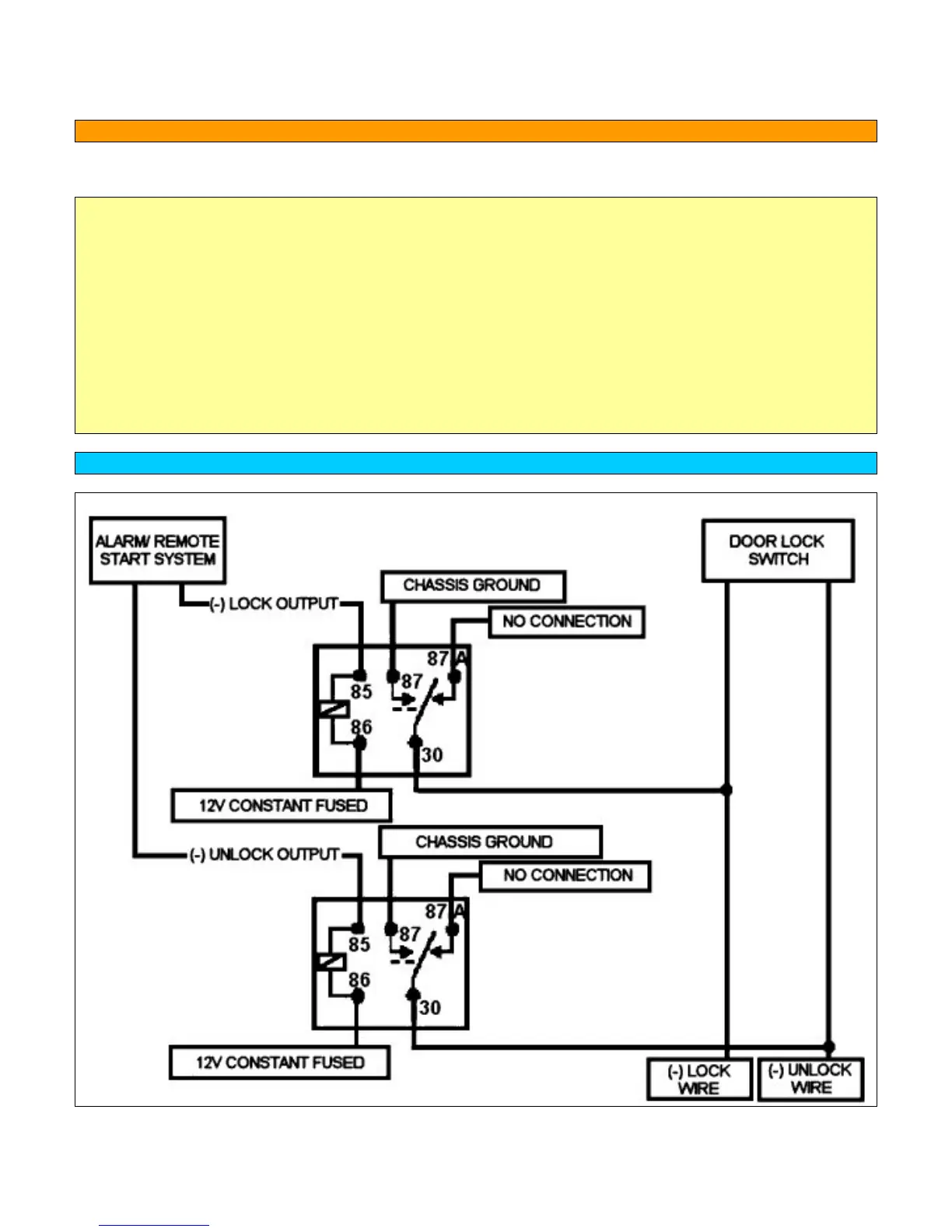

WIRING RELAYS FOR NEGATIVE TRIGGER DOOR LOCKS
NOTE: Use relays and wire as shown:
