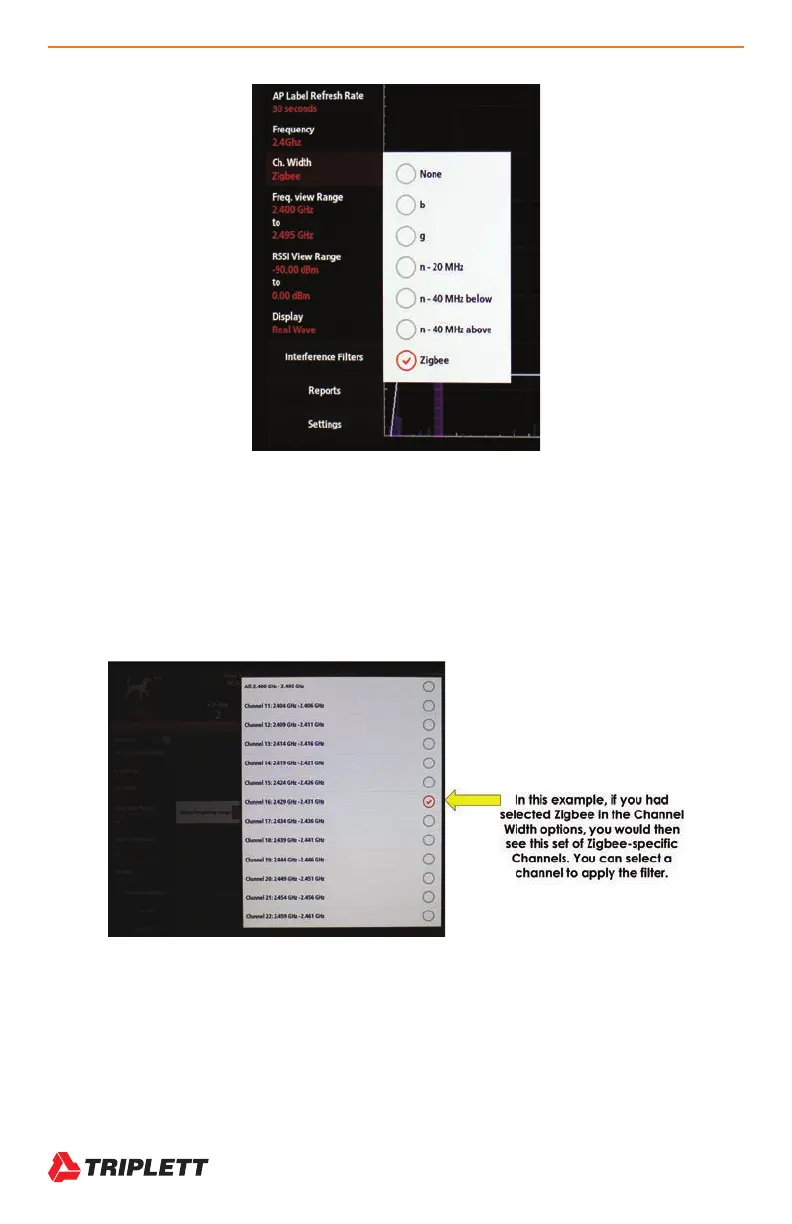

4.3.3 Selecting the Channel Width
The Channel Width selection is designed to help narrow the viewing range and make it easier for you to troubleshoot
saturated wireless environments. You will not see the impact of your selection until you select the next option in the
Frequency View Range filter.
Depending on which Frequency you chose, you will see specific options in the Channel Width. If you chose 2.4GHz, you
will see all the 802.11 b/g/n channel width options, plus Zigbee (which broadcasts on 2.4GHz).
4.3.4 Selecting the Channel in Frequency View Range
Notice that when you now go into the Frequency View Range, it lists the Zigbee channels. If you had selected b or g, for
example, then the corresponding North American channels referring to 802.11b or 802.11g (Channels 1-11) would show
instead. Notice how the view changes if you select, for example, Zigbee’s Channel 16 (Z16) (see photo on next page).
