Tripp Lite NetCommander B070-008-19-IP User Manual

44
3. Conducting a Remote Session
To congure settings in Relative Mouse Position, OS-Specic mode:

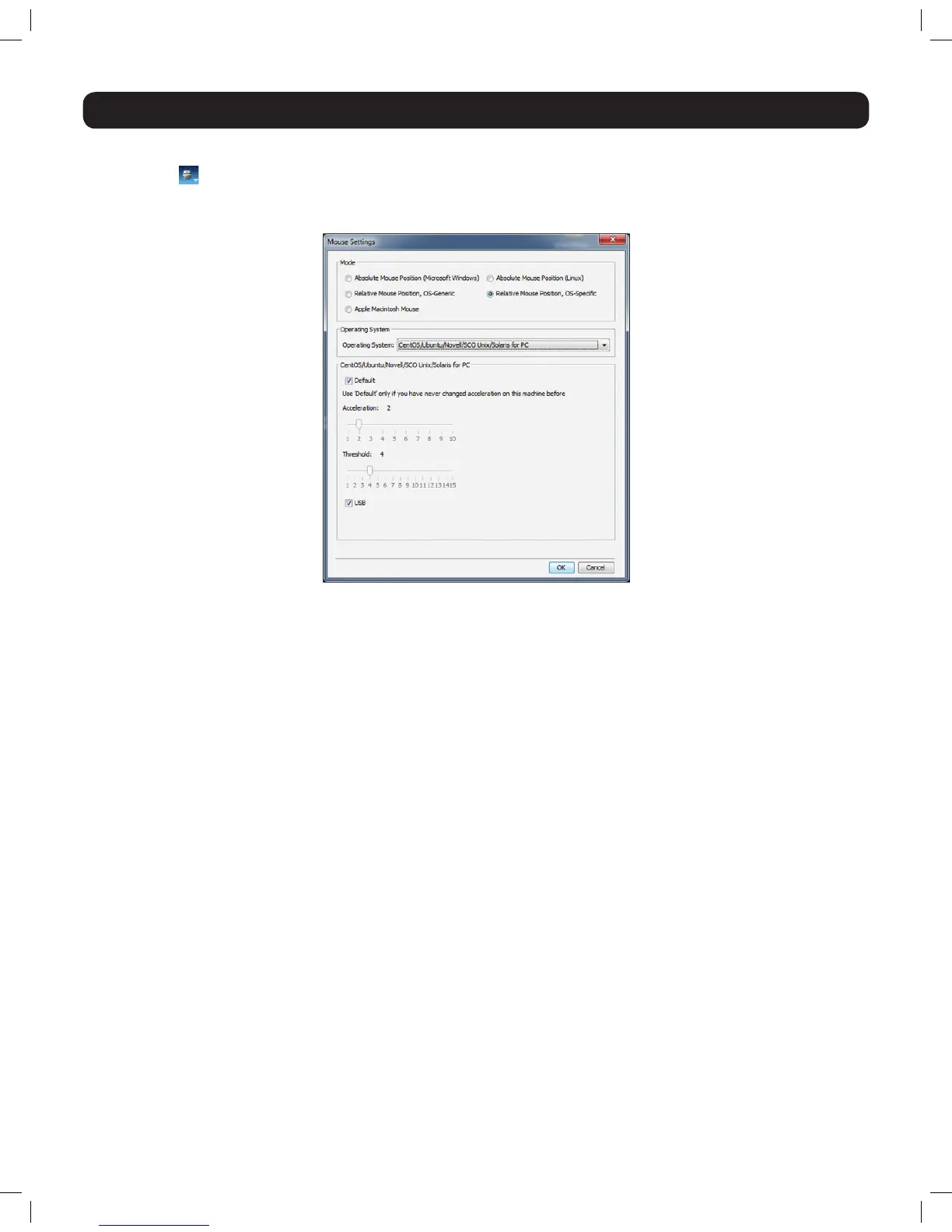

1. Click on the icon in the remote session toolbar, and choose the Mouse Settings option. The Mouse Settings window appears.
2. Check the Relative Mouse Position, OS-Specific checkbox. Additional settings appear that allow you to manually configure the mouse
settingsaccordingtoyourTargetServer’sOSandmousetype.
3. In the Operating Systemeld,selectyourTargetServer’soperatingsystemfromthedrop-downmenu.Instructionsandsliderbars
appear on the screen according to the chosen operating system.
4. CongurethesesettingstomatchthoseshownintheTargetServer’sMousePropertieswindow.Note: If the mouse settings of the
remote computer have ever been changed (even if they were changed and then returned to the original settings) uncheck the Default
checkbox and edit the settings to match those of the Target Server.
5. Check the USB checkbox if the Target Server is connected with a USB SIU.
6. Whenyouaredoneconguringallsettings,clicktheOK button to close out of the Mouse Settings window. Upon moving the mouse in
the remote session screen, the pointers should align. If needed, use the Align feature(seetheAlign sectioninthismanualfordetails)
of the Mouse drop-down in the toolbar.
14-03-051 93-32D5.indd 44 3/14/2014 9:52:39 AM

Tripp Lite NetCommander B070-008-19-IP Specifications

General

Brand	Tripp Lite
Model	NetCommander B070-008-19-IP
Category	Switch
Language	English
