Mounting
*All mounting dimensions are accurate to +/- 0.1 inch (2.5 mm).
Remote Control Mounting Instructions
1
To mount the remote to a permanent location, ensure the 20 ft.
(6 m) remote cable can reach the inverter’s RJ12 remote port.
2

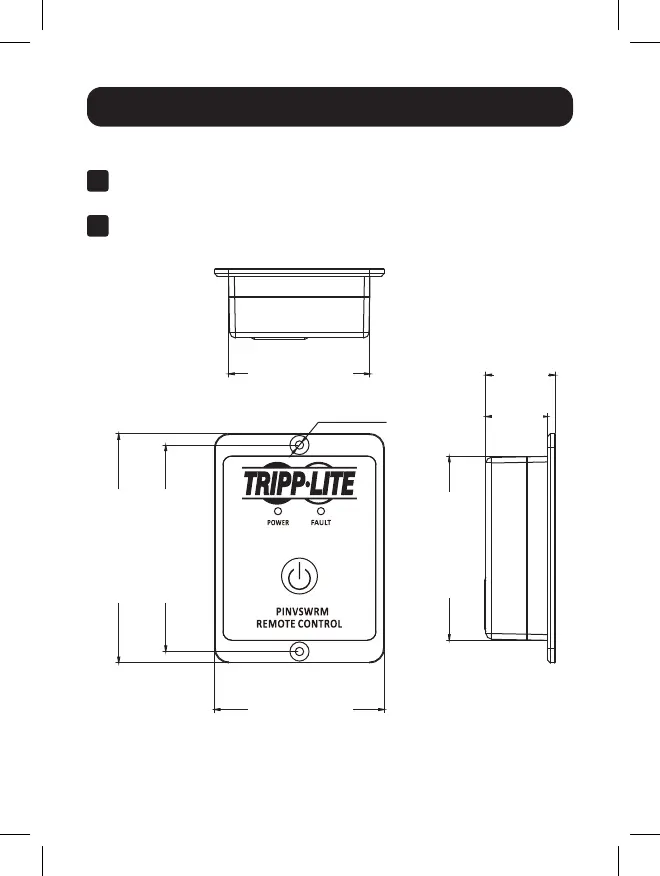

The following mounting dimensions* should be used when
installing the remote to a permanent mounting location:
1.96 in. (50 mm)
2.36 in. (60 mm)
2.56 in. (65 mm)
0.07 - Ø 0.11 in.
(2 - Ø3 mm)
3.19 in. (81 mm) 2.87 in. (73 mm)
0.98 in.
(25 mm)
0.86 in.
(22 mm)
