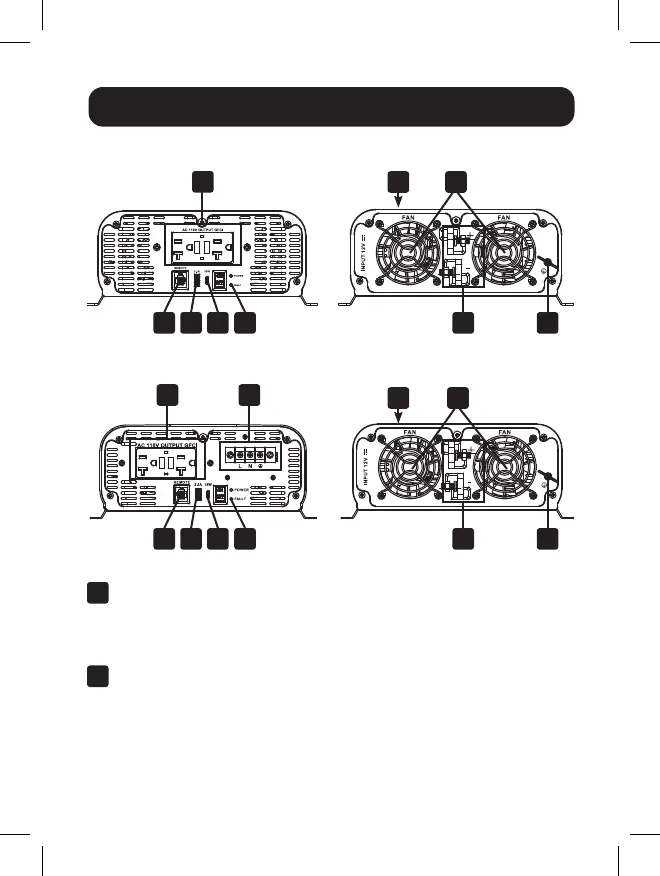

Feature Identification
PINV2000SWL-120
PINV3000SWL-120
A
GFCI-Protected AC Outlets: NEMA 5-20R outlets allow you to
connect equipment that normally plugs into an AC utility outlet.
Enhancing safety, the ground fault circuit interrupter (GFCI) switch
trips if there is excessive current on the ground safety wire.
B
Hardwire AC Output Terminals (PINV3000SWL-120 only):
Securely connect the Inverter to a vehicle or facility electrical
system input with the recommended GFCI receptacle output(s).
See AC Output Connection section for instructions.
A
C
C
G
G
D
D
E
E
F
F
H
H
I
I
J
J
A B
