Tritech SeaKing - Waterblock Pin-out Diagram

Installation SeaKing & SeaPrince Imaging Sonars
0374-SOM-00001, Issue: 08 12 © Tritech International Ltd.

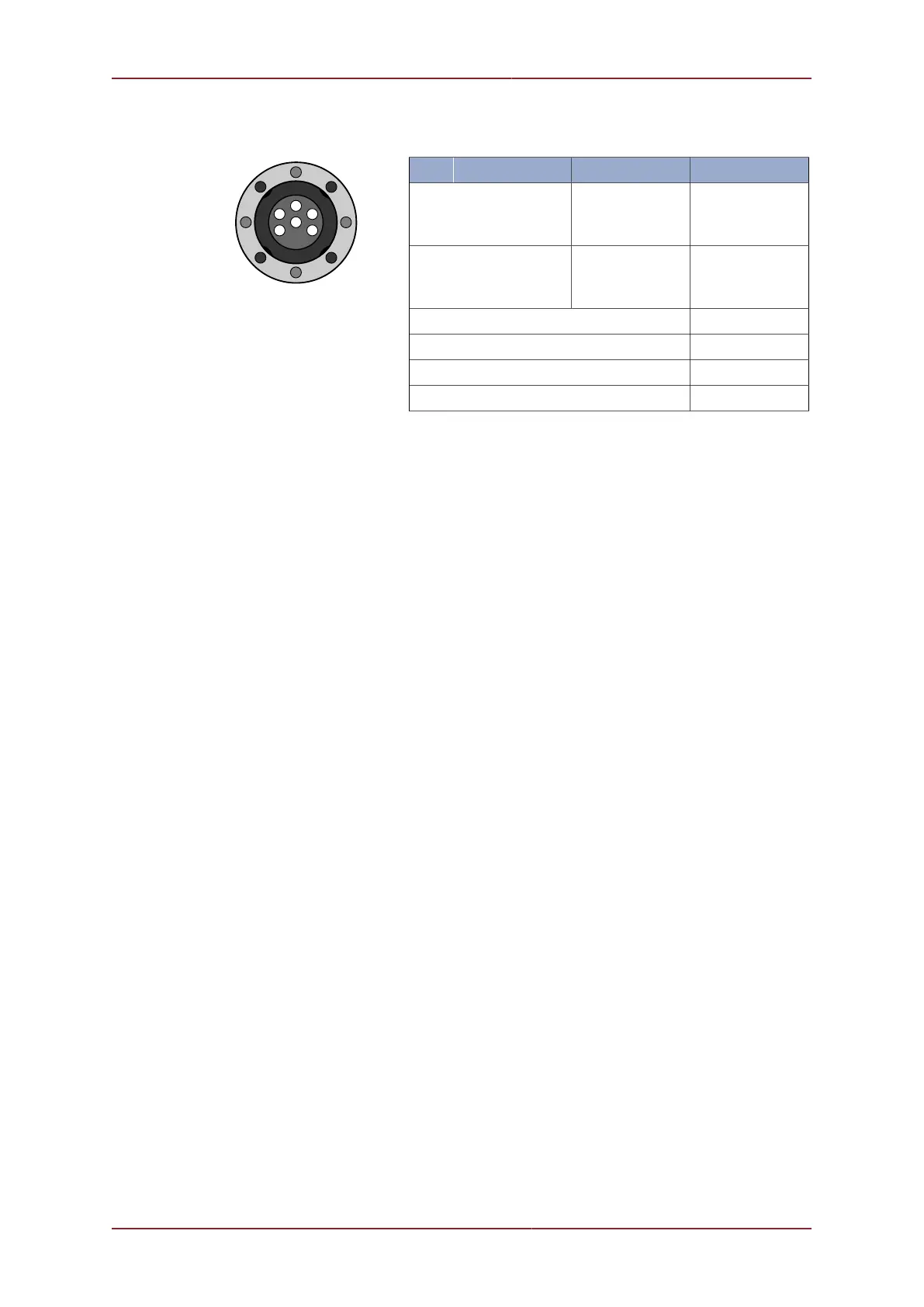

3.4. Waterblock Pin-out Diagram
1
4
6
2
3
5
Figure 3.1. Tritech
Waterblock
Pin MAIN port AUX port Cable colour
1 RS232 TX
ARCNET A
RS485 A
RS232 RX
ARCNET A
RS485 A
Yellow
2 RS232 Rx
ARCNET B
RS485 B
RS232 TX
ARCNET B
RS485 B
Blue
3 +DC Power Red
4 -DC Power Black
5 RS232 Ground Green
6 Earth/cable shield cable screen
