Tritech SeaKing - SeaKing Servicable Items; SeaKing Unit Disassembly

Maintenance SeaKing & SeaPrince Imaging Sonars
0374-SOM-00001, Issue: 08 33 © Tritech International Ltd.

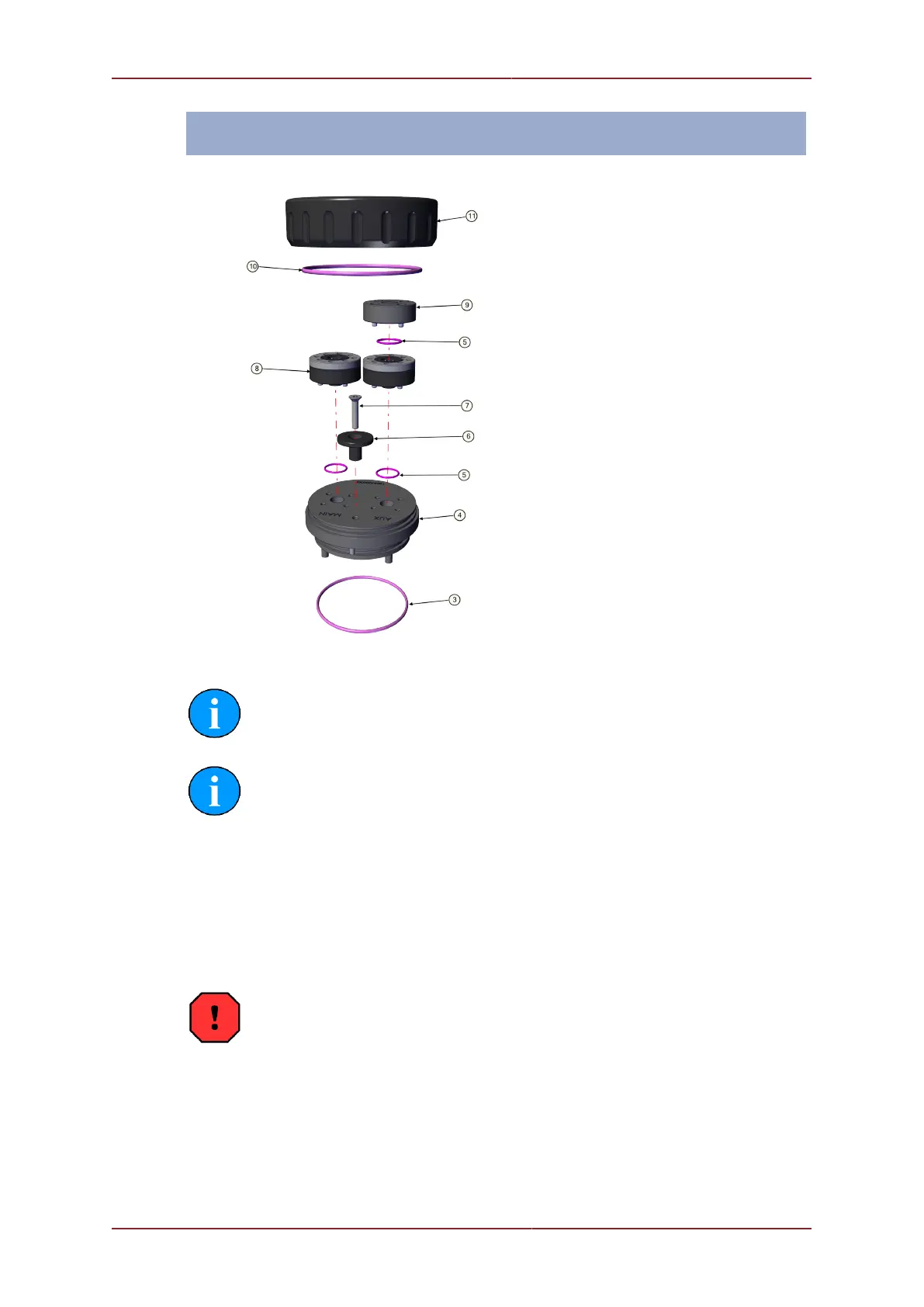

Exploded view diagram Item Part
Number
Description
3 S01037 Body O-ring
4 S01204
ASSY
Connector
Endcap
5 S00009 0161-16 O-ring
6 S01252 Endcap puller
7 S01299 M5x25 Endcap
puller screw
8 S00987 Waterblock
9 S01182
ASSY
Pressurised
blanking cap
10 S01038 Retaining O-ring
11 S01023 Retaining ring
Note
The part numbers expressed are subject to change.
Note
Alternative configurations may have additional serviceable items, if in doubt
please contact Tritech International Ltd to establish the correct service routine.
The o-ring seals should be regularly inspected, cleaned and lubricates with the appropriate
greasing compound. The body of the unit should also be inspected for any obvious signs of
corrosion, especially in mating surfaces (such as the waterblock).
6.3.1. Disassembly of the SeaKing unit
Warning
In the unlikely event that the subsea housing has suffered water ingress at depth
there may be internal pressurization. This could forcibly eject the end-cap when
the lock ring is removed.
If wishing to dismantle the unit, for any reason, due care and attention should
be taken to prevent damage or injury.
